Electric Magnetic Lock with LED and Signal Time Delay Suitable for Access Control System

 Product Description Magnetic lock EM270A with LED and signal (270Kg)  Lock type DimensionMagnetic lockLock Dimension: 253x48x26.5mmPower to lockPackage size:    290X65X60mmHolding ForceOpening mode270KgSwinging door 90 degreePower supplyGross

Technical Feature

  • Shanghai, China (Mainland)
  • GRANDING
  • EM270A
  • 300KG
  • 12/24V
  • yes
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Shanghai, China (Mainland)
Brand Name
GRANDING
Model Number
EM270A
holding force
300KG
power
12/24V
LED
yes
signal
yes
time delay
optional

DETAIL DESCRIPTION



Product Description

 Magnetic lock EM270A with LED and signal (270Kg)



Lock type

Dimension

Magnetic lock

Lock Dimension: 253x48x26.5mm

Power to lock

Package size:    290X65X60mm

Holding Force

Opening mode

270Kg

Swinging door 90 degree

Power supply

Gross Weight

12/24VDC

2Kg

Current

Environment

Dual voltage: Starting current:450mA  standby current:450mA

Operation temperature: -20°C ~ 55°C

Single voltage: Starting current:330mA  standby current:330mA

normal atmospheric temperature+15°C (dual voltage)

normal atmospheric temperature+8°C (signal voltage)

Bracket selection

APPLICATION DOOR TYPE

U type, Z type and L type (optional)

All types of Wooden Door, Glass Door, Metal Door, Fire Proof Door

Function Support

Customize Function

LED, signal output( NO, NC, COM) or time delay

Time delay



Order Bracket (optional)

EMJ270L

L type bracket for EM270A

EMJ270Z

Z type bracket for EM270A

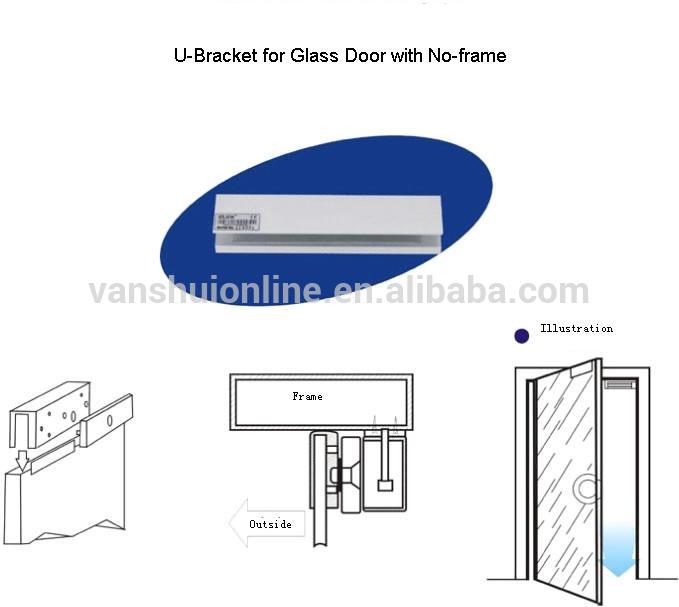

EMJ270U

U type bracket for EM270A

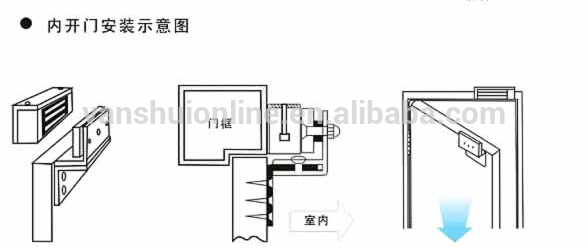

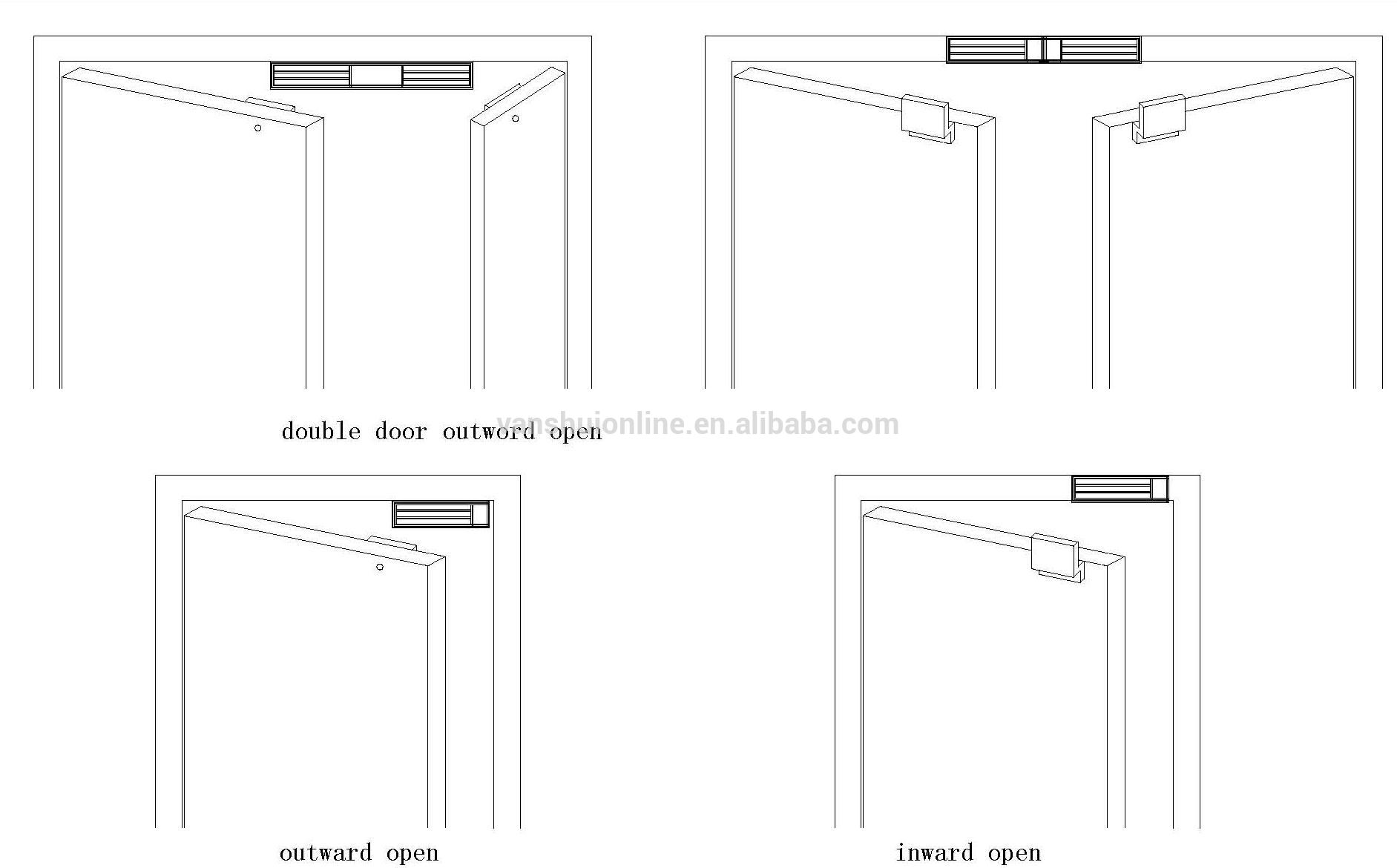

 Installation:

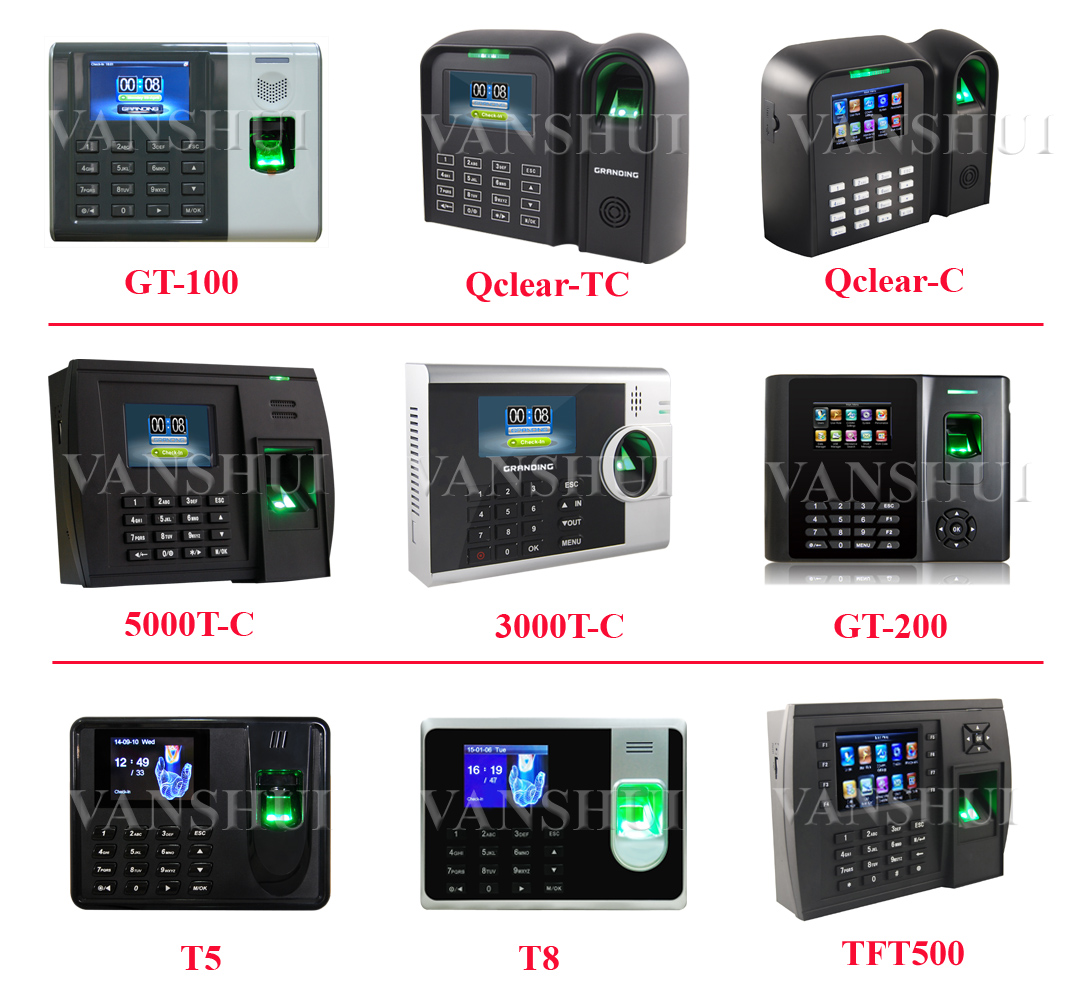

Other Models
