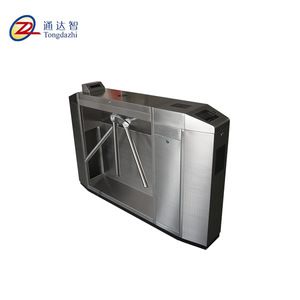

CE approved bi-directional bridge semi automatic tripod turnstile gate for access control system

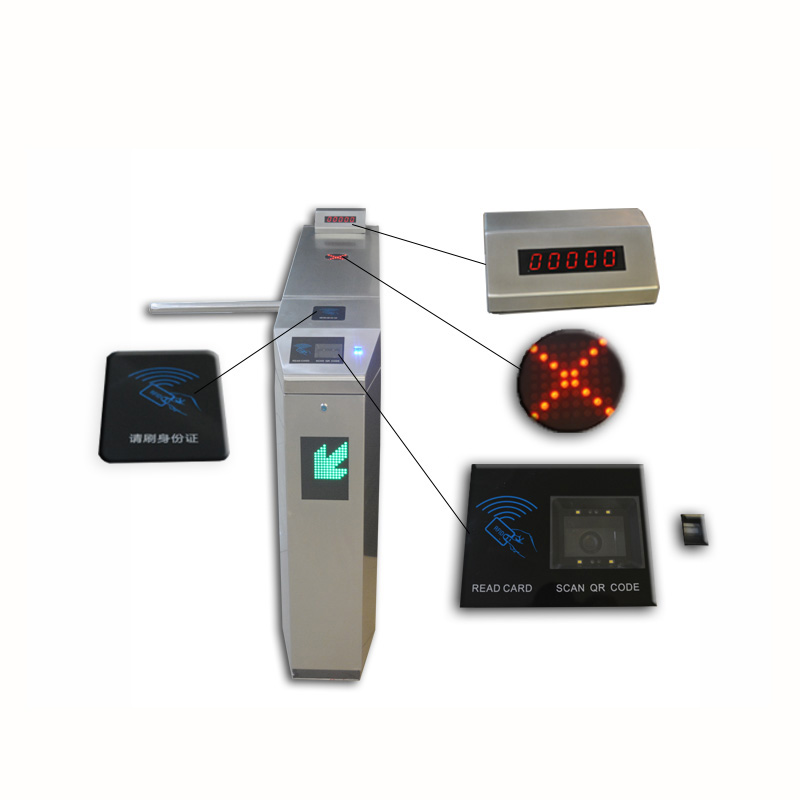

Shenzhen Tongdazhi 's semi-automatic tripod turnstile consists of casing, magnetic force turn plate, reader module, main controller module, direction guide, limit switch etc., can be used for entrance control, applications like apartment, factory, museum, station and ferry terminal etc.. Together with intelligent card reader/writer and management software, they are combined as intelligent tripod turnstile management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc. The equipment opens half-automatically, Mifare-1, IC, ID and available to be used with the tripod turnstile.
Function and features of Tripod Turnstile:
1. Can open the turnstile by two input signals (signals can be input by access controller, button
or other equipments)
2. Direction guide function, when the turnstile is ready to read card, the yellow light in the
middle will turn one; after reading card and ready for passing, the upper blue light will turn
on; if try to push the railing without permission, the red light will turn on
3. Single direction or double direction optional
4. Railing will be off when power off
5. Counting function, if read the card for N times, N persons can pass before the railing close,
N<=8(optional function)
6. Voice prompt and display screen available (optional)
7. External counter can be connected to count number of passed people (optional)
8. RS485communication, PC command through serial port is allowed (optional)
9. Alarming output for pushing the railing without permission(optional)
Technical Parameters of Tripod Turnstile:
Model | TDZ-S349 |
Voltage | AC 220V/110V±10% |
Frequency | 50/60Hz |
Current | 3A |
Control circuit: | DC24V |
Power consumption | 50W |
Working temperature | -10°C~50°C |
Working humidity | 0~95%RH |
Protection grade | IP44 |
Arm length | 510mm |
Arm diameter | 38mm |

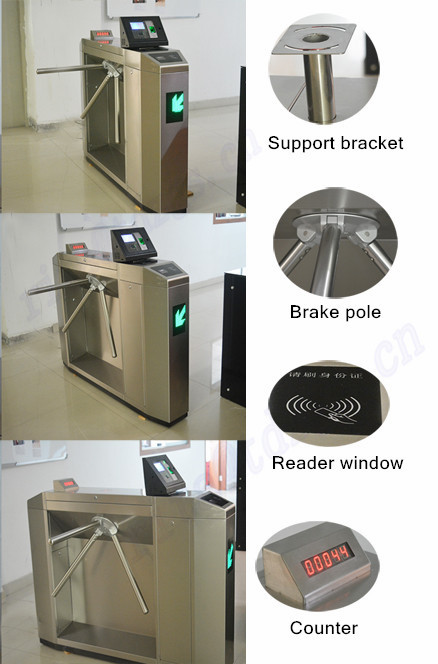

Details of Tripod Turnstile:

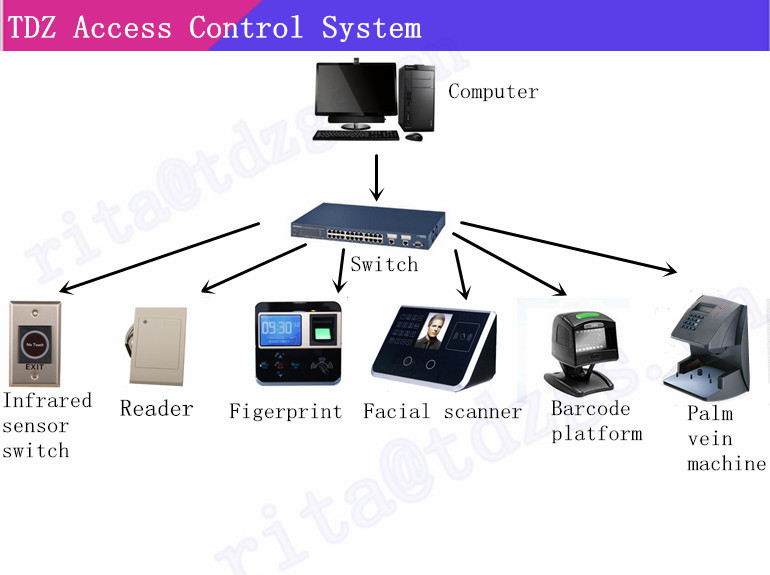

The Access Control System of Tripod Turnstile:
Tripod Turnstile Application:
Tripod turnstile is your ideal choice for entrance control and widely applied in community, school, bank, seabeach, shopping center and so on. TDZ tripod turnstile is of high quality, reasonable price and after sale service.
Other place:
1. Industrial zones
2. Administrative buildings
3. Recreation centers
4. Amusement parks
5. Financial institutions
6. Government agencies
7. Airports
8. Bus and railway stations
9. Offices
