304 stainess steel hot sell standard electric door control system swing barrier gate

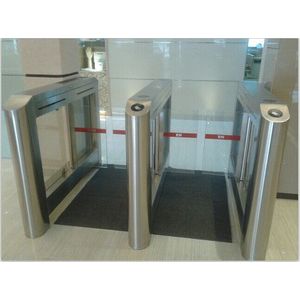

Luxury high grade bright surface swing turnstile TDZB234 is composed of case ,toughened glass ,control system ,infrared sensor ,and control equipment, the advantage of Luxury high grade bright surface swing turnstile is open the gate quickly, quick gate closing, can’t open without senor , mechanical structure can not be stuck. Swing turnstile TDZB234 can mount with various reader device and use the received relay’s switch signal to work. Swing turnstile TDZB234 has drive circuit,LED lights; instructions. Drive circuit board is the bridge between device controlling and turnstile ,select a group of normally open output terminals from the controller’s relay output (access control, time attendance, ticketing, fingerprint and other main control equipment), press the "wiring diagram" in connection.it also can manage directly through the remote control and management by computer management.
1.Both directions can be set as controlled mode or free mode.
2.NO mode & NC mode can be switched over by users easily & freely.
3.Selfrecovery function: the machine will recovery automaticlly with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
4.Self-examine Function: it is convenient for users to maintain and use.
5.Tailgating-detection function.
6.Intruding-alarm function.
7.Anti-pinch function: protection against finger entrapment and personal injury.
8.Emergencyescape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
9.With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
10.Each machine can be set by Physical Address (Optional).
11.Equipped with free control software for man-machine interface & control command SDK.
- Structure: frame structure / 304 stainless steel shell
- Production: All CNC laser cutting machine
- stainless steel Thickness: 2.0mm Cover
- Weight: 80Kg
- transmission arm angle: 90 degrees
- swing direction: one-way or two-way
- Power: 50W
- Working voltage: AC220 ± 10% V / 50 ± 10% HZ
- Motor: brushless DC motor 200W / 24V
- input interface: dry contact signal or 12V level signal or pulse width ≥100ms of 12V pulse signal, the drive current ≥10mA
- LED direction indicators: 1
- reader window: 2
- pass speed: 40 / min (normally open), 25-30 / min (NC)
- gate opening and closing time: 2-3 seconds
- after the passage of state power into the time: 3 seconds
- automatically reset the time after the failure of: 10 seconds
- Working environment: indoor, outdoor (Yin shed)
- temperature: -10 ℃ - 50 ℃ Relative humidity: ≤90%, non-condensing
Packaging way: paper carton and wooden case
Packaging size: 1480x380x1060mm
Packaging weight: 100kg
ShippingWay:
1. Fast way: by express courier, such as DHL, FedEx, UPS, TNT, EMS.
2. Cheap way: by air, by sea shipment.
3. Cheap way (small package): By China Post, should take 15-70days.
1.Security solution provider, can help you save time and costs.
2.Good quality with competitive price, offer OEM and ODM service.
3.Professional technical supports and great after-sales service.
4.Custom design shape and logo,for large amount, custom logo available for free.
5.Fastest delivery and safe shipping way.
6.Warranty: One year Warranty, from the date of delivery, a lifetime technical support.
7. Feedback quickly: 24 hours online service and reply your inquiry within 8 hours. We could provide Online supports for you when need supports on testing.
