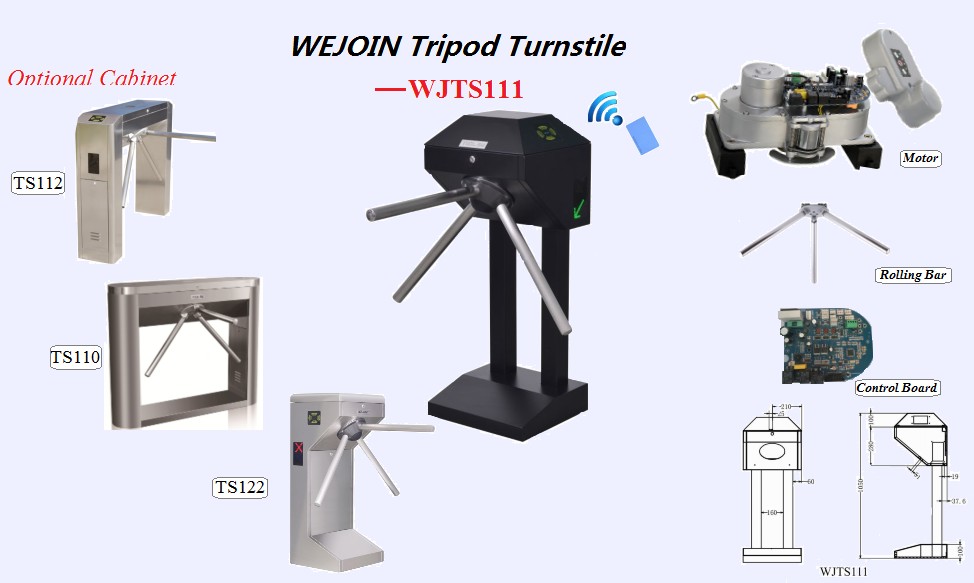

GuangDong WEJOIN Fingerprint RFID Semi-Automatic Access Control System Vertical Tripod Turnstile
Product Introduction
This series of turnstile adopt the unique technology of our company---the precise photo electricity limit and gear to orient the closure. The turnstile be unlocked and reset because of the specific motor. The closure is very precise and stable. This series of turnstile adopt standard electricity socket. It can read boom code card, ID card, IC card and so on.
There is a series of turnstiles. You can choose the item and specificalion. They can be used in school, metro and chamber and so on. This series is of very high-tech. In order lo guarantee it can run safely, please carefully read this instruclion!
Technical Parameters
| Model | WJTS122 | WJTS112 | WJTS110 | WJTS111 |
| Item | ||||
| Driving Model | Full-automatic | |||
| Material of housing | 304 Stainless Steel | Iron with Powder | ||
Dimension of housing (L*W*H mm) | 420*380*1000 | 1235*280*1000 | 1230*280*1000 | 420*380*1050 |
| Thickness of housing | 1.5mm | |||
| Length of pole | 490mm | |||
| Net weight | 50kg | 70 kg | 70 kg | 45 kg |
| Max load-bearing of pole | 80kg | |||
| Driving force of pole | 3kg | |||
| Rotating direction | Double direction | |||
| Power supply | 220V±10%, 110V± 10% | |||
| Frequency | 50/60HZ | |||
| Working voltage of motor | DC12V | |||
| Rated power | 50W | |||
| Driving motor | Brush DC motor | |||
| Input interface | DC12V electrical level signal, more than 10ms, or DC12V impulse signal driveling current, more 10mA | |||
| Transit speed | 25~32 persons/min | |||
| Working temperature | -25°C~55°C | |||
| Working environment | Indoor / Outdoor (Shelter) | |||
| Relative humidity | ≤95%, no condensation |
Functions& Features
1) Stainless steel Housing.
2) Bi-direction pass.
3) Arms auto drop when power off.
4) Arms auto rise up when power on and auto stop on obstacle.
5) Traffic light indicator.
6) Wingen 26/Dry contact, is compatible with smart card for access control.
7) Photoelectric inspection.
8) If the passenger does not pass in valid time, the passage will be locked up. And the valid passing time can be set up by operator.
9) Passenger counters (optional).
Detailed & Images
Feature: Special Designed Mechanism
Feature: Bi-direction passes
When reading card from a certain side, the indication light direct the opposite direction.

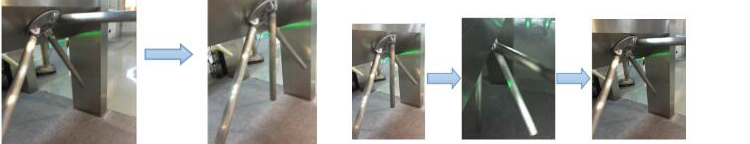

Feature: Droping Arm When Power Off
Feature: Arm Rise Up Automatically
Arms rise up automatically when power on.

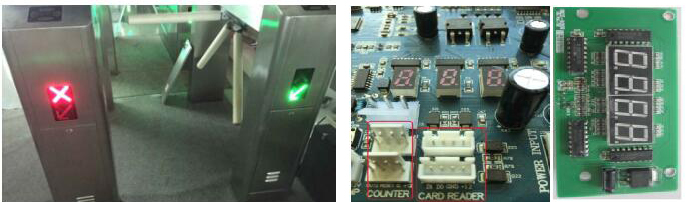

Feature: Green&Red light indicator
Traffic light indicator Show Green light show this way can passed by reading card, show red show this way can not passed.
Counter
Passenger counters ( There have interface on PCB for card reader and counter)
Quality Control
All Product Tests Before Delivery:
WEJOIN utilizes advanced testing equipment and various testing methods in all production processes.

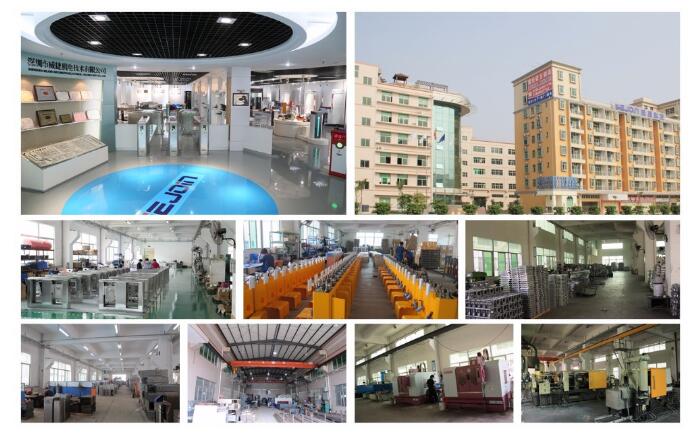

Shenzhen Weijoin Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Packaging
| Size | 112*50*53CM |
| Weight | 50 kg |
| Packaging Details | The normal package is wooden box(Size: 112*50*53CM). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Our Service
| Payment Term | Leading Time | Minimum Order | Supply Ability | Package |
| T/T; West Union | 5-7 working days | 1 Unit | 10,000 Unit/ Month | Paper Carton or Wooden Box |
1.Are You Factory/Manufacturer Or Trading Company?
We are factory/manufacturer of barrier gate with over 14 years' experience.You can get competitive price barrier gate here of high quality.
2.Do You Offer OEM/ODM Service?
Yes, we have rich experience in offering OEM/ODM service. Design service offered.
3.How About The Shipping Cost?
If your goods is not large, we can send goods to you , such as FEDEX, DHL, with good price for long cooperation. If your goods is large, we will send it to you by sea, then we can quote the price to you, and you can choose whether use our forwarder or yours.
