Product Introduction

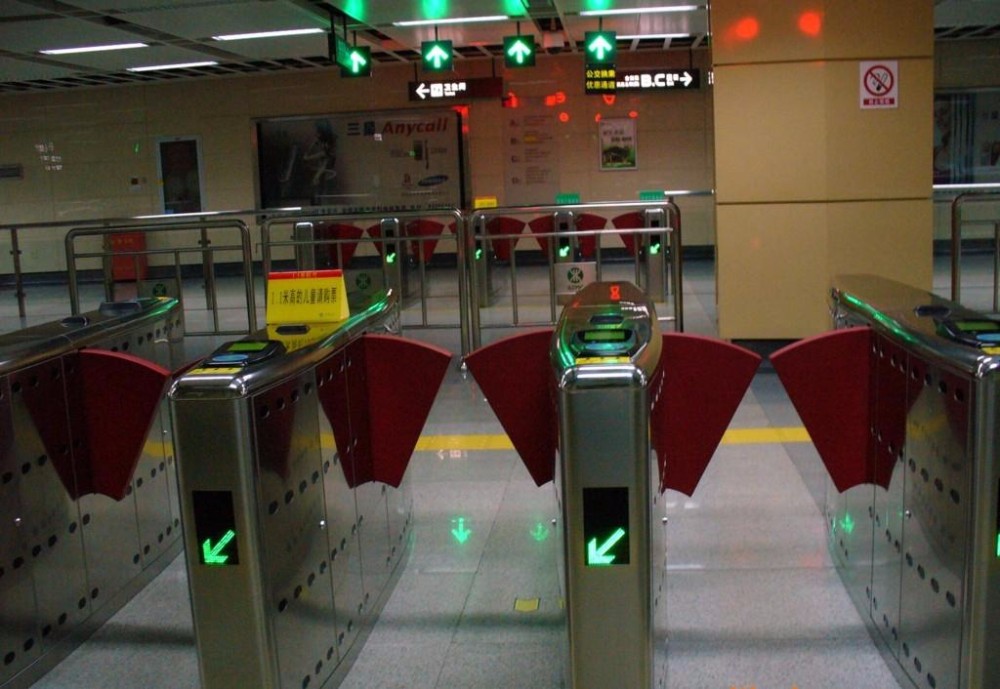

High class communities, intelligent buildings, hotels, subway stations and other high level venues and then achieve a more intelligent management and control of pedestrian access. The most typical intelligent application is high speed railway station, subway station, BRT station, scenic ticket system and so on.
| Model | WJTY201 | WJTY311 | WJTY312 | WJTY301 |
| Item | ||||
| Material of Housing | Stainless Steel | Cold Iron | ||
| Material of Flap Door | Organic Glass | PVC | PVC | PVC |
| Thickness of Housing | 1.50mm | |||
| Dimension of Housing (L^W^H mm) | 1450X270X 1000 | 1450X300X1000 | 800X310X1020 | 1450X315X1020 |
| Net Weight | 90kg | 100kg | 70kg | 140kg |
| Max Width of Passage | 600 mm | 900 mm | 900 mm | 900 mm |
| Power Supply | 220V220V±10%, 110± 10% | |||
| Frequency | 50/60IIZ | |||
| Working Voltage of Motor | DC12V | DC24V | DC24V | DC24V |
| Input Interface | Dry Contacl signal or 2V level signal or pulse signal with width more than 100ms DC 12V | |||
| Normal Life-span | 3 million times | |||
| Comunicaiion Inlcrfacc | Standard RS485 (distance less than 1200 meters) | |||
| Time for opening or closing | 1 second | |||
| Starting Time after power on | 3 seconds | |||
| Automatic reset time after fault | 10 seconds | |||
| Transit Speed | 30-40 persons/min | |||
| Working Environment | Indoor / Outdoor (Shelter) | |||
| Working Temperature | -10°C~50°C | |||
| Relative Humidity | ≤95%, no condensation |
Main Features
Flap Barrier
1) A compact clcctro-mcchanical design with unique drive and a self-lock mechanism
2) Automatic detection for malfunctions
3) Input interface available for dry contact and switch signal connection
4) Adjustable auto-dclay closing
5) Infrared photocells for safety access
6) Alarm for unauthorized access and no access against passenger flow
7) Anti-reverse passing
8) Auto-closing when power on
9) Auto-open and free access when power off
10) Adjustable access directions
11) Emergency interface available
12) Traffic light indicating passenger access
Feature: Special Designed Mechanism
Feature: Automatic Detection
Automatic detection for malfunctions, which will be convenient for customer to maintain and operate.

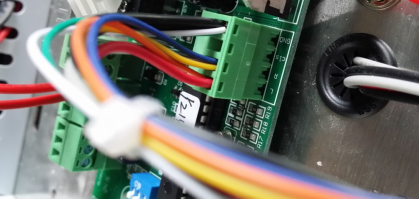

Feature: Available for All Access Control System
Function: Emergency Function
It can be integrated with fire control device, which allow the release on emergency for security consideration.

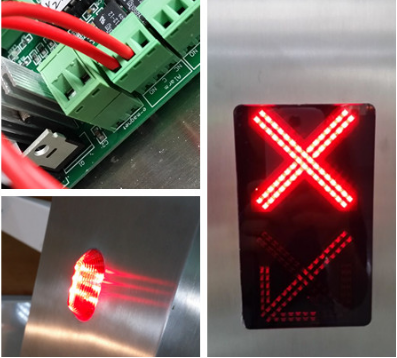

Feature: Alarm On Control Board
Audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.

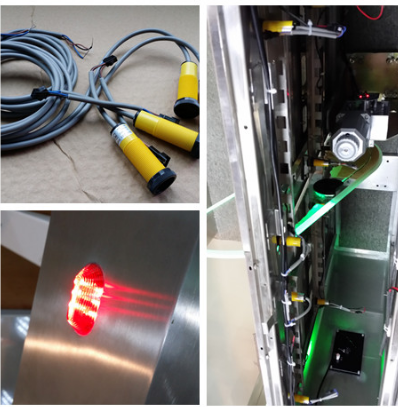

Function: Infrared photocells for safety access
Infrared photocell to detect abnormal access, and flap system will stay locked if not receiving authorized signal.

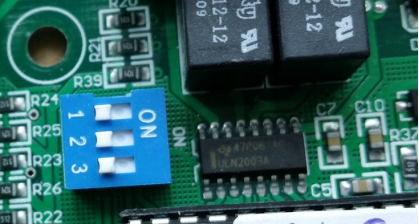

Feature: Mutil-working Model
Both directions can be set as controlled mode or free mode.
All Product Tests Before Delivery:
WEJOIN utilizes advanced testing equipment and various testing methods in all production processes.
| Packaging | |
| Size | 150*36*118cmCM |
| Weight | 166 kg |
| Packaging Details | The normal package is wooden box(Size: 150*36*118CM). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
| Pyment Term | Leading Time | Minimum Order | Supply Ability | Package |
| T/T; West Union | 5-7 working days | 1 Unit | 10,000 Unit/ Month | Paper Carton or Wooden Box |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
