RFID card Full automatic security electronic Access Control System & full height turnstile & Access control gate
Technical Parameters of Access Control System
1 | Power | AC220C±10V,50HZ |
2 | Operating Temperature | -15°C-75°C |
3 | Relative Humidity | |
4 | Communication Distance | ≤1200m |
5 | Passing Speed | 30~40 Persons/min(IC Card/ID Card...) |
6 | Motor | 0.5NM/24V(Fully Automatic) |
7 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma |
8 | Communication Connection | RS485 Communication |
9 | Material | SUS304 or Carbon Steel Powder Coating |
10 | IP | 54 |
11 | Colour | SSB(US32D)- Stainless Steel Brushed / Powder Coating/You can give your favor Colour |
12 | Operation Place | Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
Functions & Features of Access Control System

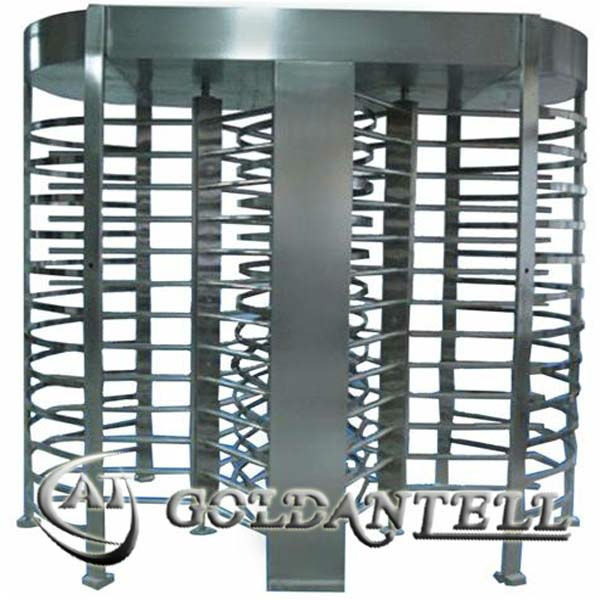

1 The full-high turnstile is designed to provide unsupervised access control for office or building.
2 The impenetrable construction eliminates any unauthorized access to restricted areas.
3 To gain authorized passage through the turnstile, the user must present a valid card for the access control system.
4 Upon presentation of the valid card. the turnstile will unlock and allow the user to pass through the direction requested.
5 The turnstile can also work with push button, fingerprint and face recognition access control system.

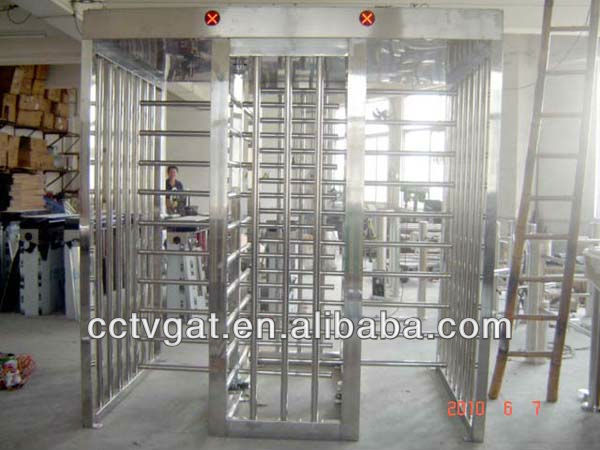

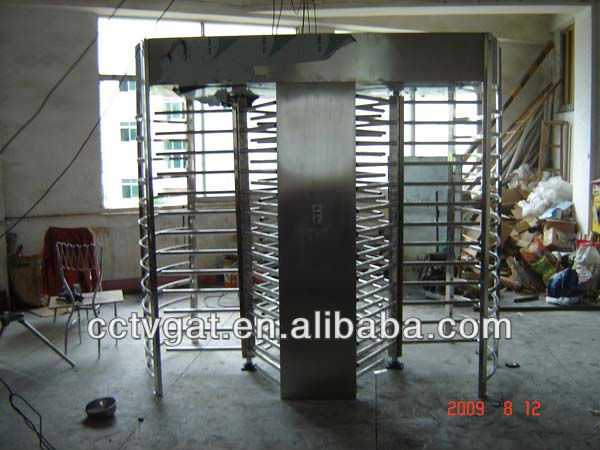

6 The full-high turnstile is designed to combine the functions of two single rotor turnstiles into one turnstile.
7 The ntermeshing of the left and right-hand rotors allow reduction in overall width from 2.8m to 2.2m with no reductionof passage space.
8 Two rotors allow four possible control points, two entries and two exits. Each rotor can be controlled in one or two directions.
9 The complete stainless steel construction is suited for interior or exterior application.
Customer service of Access Control System
1.All items have 24 month quality guarantee.
2. Custom design shape and logo,for large amount, custom logo available for free.
3. Supported by professional engineers.
4.Special discount of our distributors or agents in their area.
5.Packing in standard export carton, suggest you pack it by wooden case to protect the products
6. CE, ROSH availabl
Leading time of Access Control System
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working dasigys
200-500 sets:10-15 working days
For special item, or need custom den package or logo, need 3-10 working days longer
Goldantell Turnstiles, factory price, high quality, welcome your inquiry!
