Access control system CE approved high quality Electrical turnstile & stainless gate & turnstile stainless gate GAT-215
Technical Parameters
1 | Power | AC220C±10V,50HZ |
2 | Operating Temperature | -15°C-75°C |
3 | Relative Humidity | ≤95%, No Condensation |
4 | Access Width | ≤600mm |
5 | Passing Speed | 30~40 persons/min(IC Card) |
6 | Motor | 0.5NM/24V(Fully Automatic) |
7 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V |
8 | Communication Connection | RS485 Communication Module Standard. |
9 | Material | SUS304,thickness is no less than 1.3mm |
10 | Protection Grade | IP54 |
11 | Colour | SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
12 | Operation Place | Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |

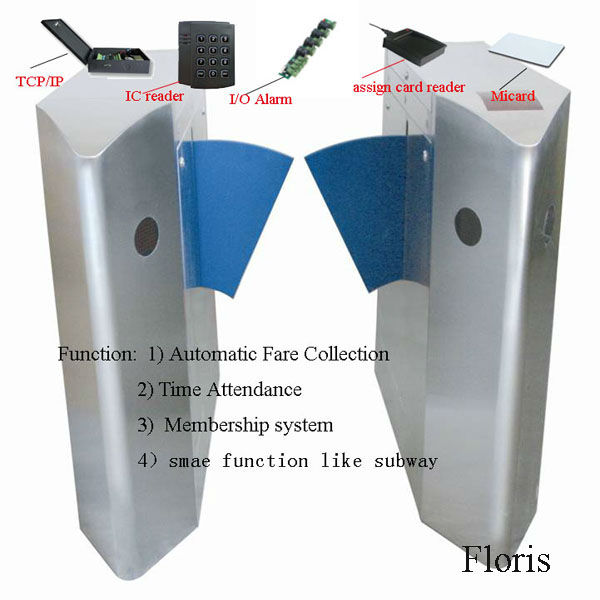

Introduction of Flap barrier gate
◊Smartcard reader compatible with a variety of card such as IC and ID card.
◊ Can be expanded to automatic identification system, realizing function of access control,
pedestrian flow control,attendance check or fare collection.
◊ Equipped with international standard electrical interface, can be easily integrated with other
R/W device, also can be controlled and management through remote supervision computer
◊ Equipped with a couple of infrared photocell, alarm at unauthorized entry or tailgating
attempts, together with anti-strike function to protect pedestrian
◊ LED gate direction indicator that displays the current operational state to pedestrian. Green
arrow for entry free, Red cross for passage locked.
◊ Can open the turnstile by two input signals (signals
can be input by access controller, button or other equipments
◊ Provide audible sound prompt and information display function.
◊ The flaps will open automatically during power interruption, and recover N/C mode after power
on(optional)
Leading time
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working dasigys
200-500 sets:10-15 working days
For special item, or need custom den package or logo, need 3-10 working days longer
Customer service
1.All items have 24 month quality guarantee.
2. Custom design shape and logo,for large amount, custom logo available for free.
3. Supported by professional engineers.
4.Special discount of our distributors or agents in their area.
5.Packing in standard export carton, suggest you pack it by wooden case to protect the products
6. CE, ROSH available.
Goldantell Turnstiles, factory price, high quality, welcome your inquiry!
