W-TEL IP66 outdoor telecom industrial equipment electrical control cabinet battery power cabinet enclosure

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin

Shanghai, China (Mainland)

Brand Name

W-TEL

Model Number

W-TEL-TH

Protection Level

IP66

Type

Control Box

External Size

2000*1000*1000

MSAN industrial telecom cabinet

telecom RAL 7035

telecom equipment outdoor cabinet

Double layer

Brand

W-TEL

Military design

air con/heat-ex/fan cooling system

Certificate

ISO9001

Application

Outdoor Electronic Equipment

DETAIL DESCRIPTION

Warner Telecom offer you

turn-key system of outdoor telecom projects :

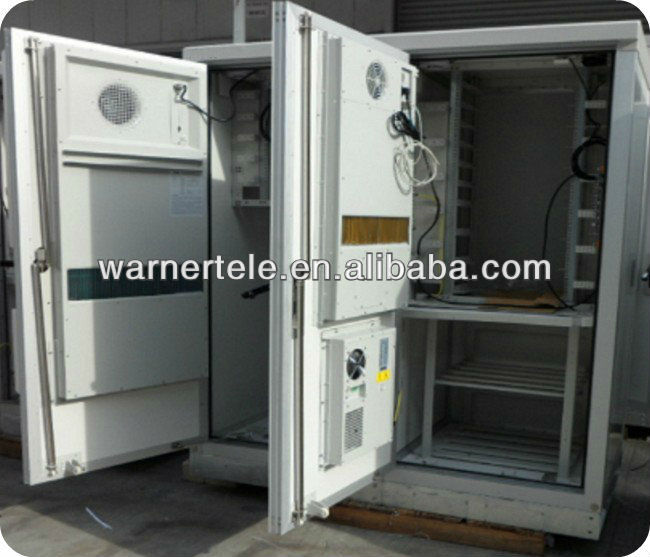

MSAN equipment cabinet :

MSAN outdoor telecom industrial equipment electric power cabinet
IP65 protection
fan cooling system
IS0 9001:2000
Military design

Maily used in the field of traffic, CATV, electric power etc.Can be used under different conditions: gale, rain, snow, hail, frost, smog and solar radiate etc.The main part of the cabinet is made of magnesium and aluminum alloy .

1>Adapts to frame design of "Sandwich" .Covered with magnesium and good capability of

preservation

2>Introduces the four-point latch-up structure to strengthen safety of cabinet Thermal insulating

material enchased in component

3>Can prevent conductive heat like outdoor ultraviolet radiation from infiltrating into the cabinet

effectively

4>Select professional air conditioner with modulation of constant temperature, humidity and setting

of heating to ensure cabinet is provided with best operating environment

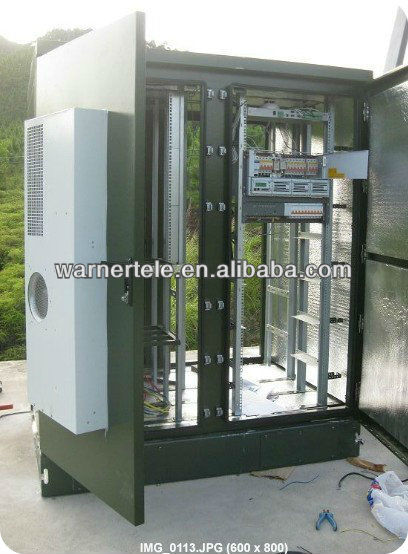

5>Inside is composed of standard 19-21 inch frame

Temperature management, control system, power supply system, entrance guard, environment supervisory system and wiring unit module

Cabinet meets the requirements of IP65 level of protection

Poduct Specifications:

l Waterproof, dust proof:

Sealed by import seal belt, waterproof design and air filter instrument realize the efficient protection,IP 55

l Temperature and humidity solution:

We adopt different components to control temperature and humidity to ensure the best working condition inside the cabinet.

l Anti-corruption solution:

The surface of the cabinet , fan and air-condition are made of aluminum alloy, can protect from UV and salt material.

l Machine protection solution:

The cabinet is designed specifically to protect it from human damage, earthquick and other damages.

l EMC protection

Dealed with hydrochloric acid, use EMC seal belt , special earthing to avoid and reduce creepage.

Divided into four parts:

equipment zone, wiring zone, cell zone and electric source zone.

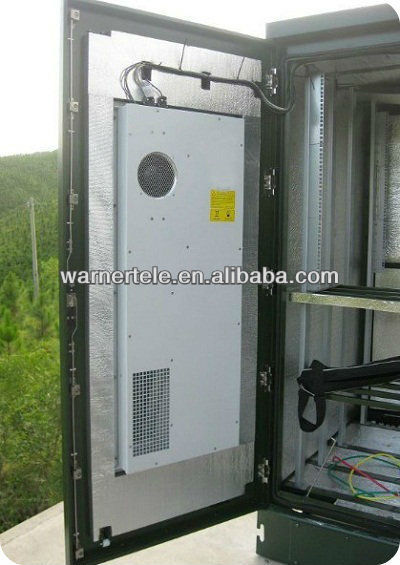

Adopt special imported outdoor industrial air-conditioner.

The perfect earthing system to protect it from thunder.

The cabinet meets the requirements of IP 65 protection level.

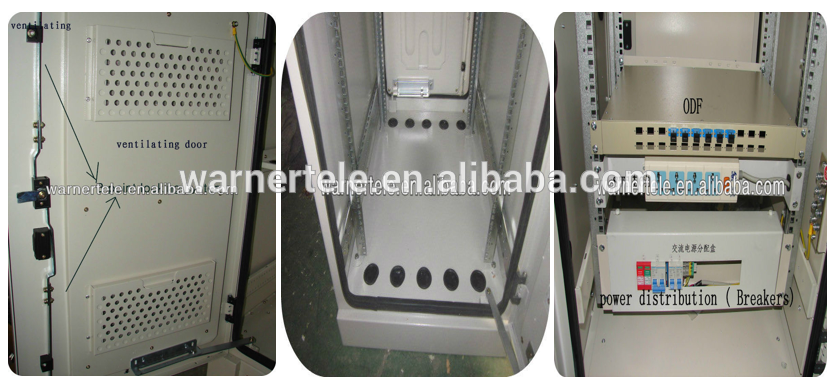

The enshroud dustproof net is installed in the air circulation system to protect the entry of dust and insects.

Special A4 size material box and unique PC panel, easy maintainance and operatinion .

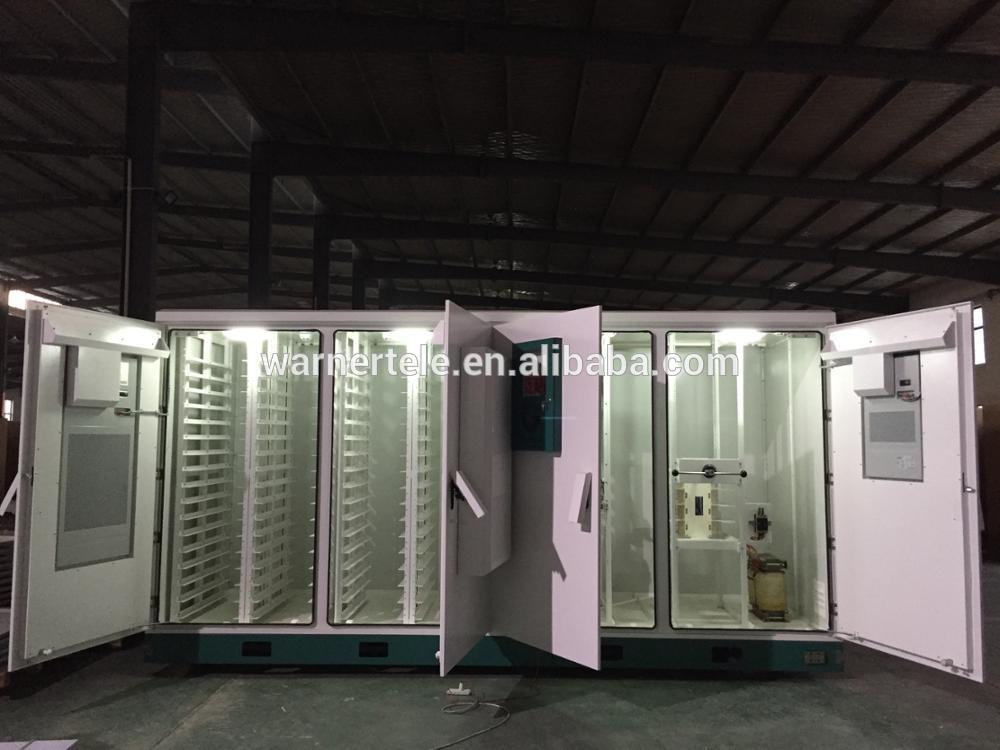

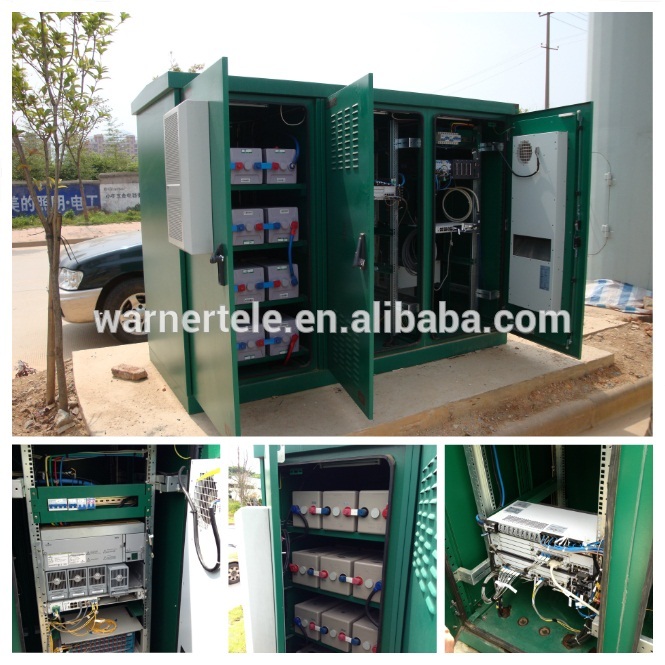

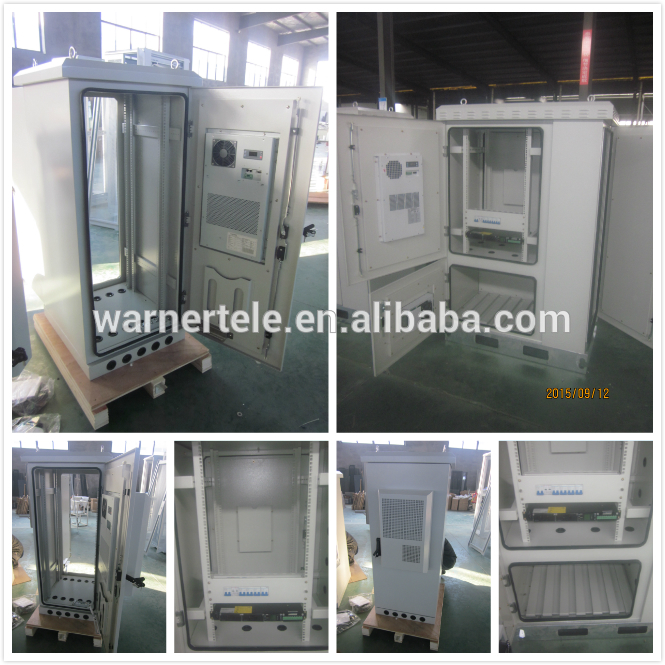

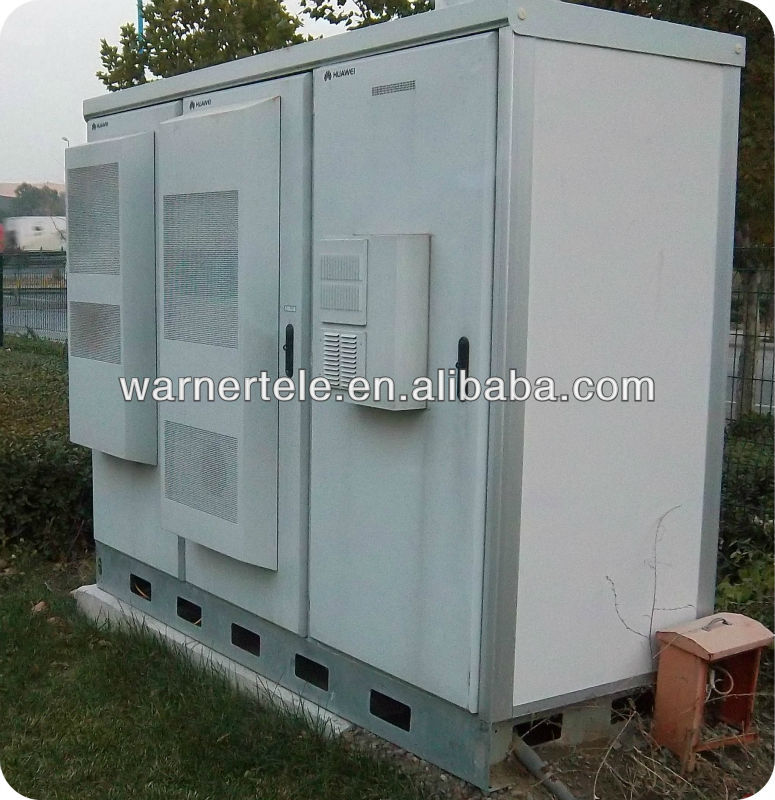

PROJECTS DISPLAY :

COMPANY DISPLAY :

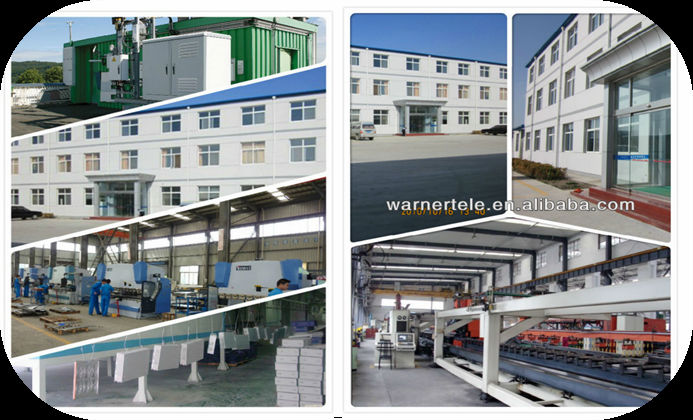

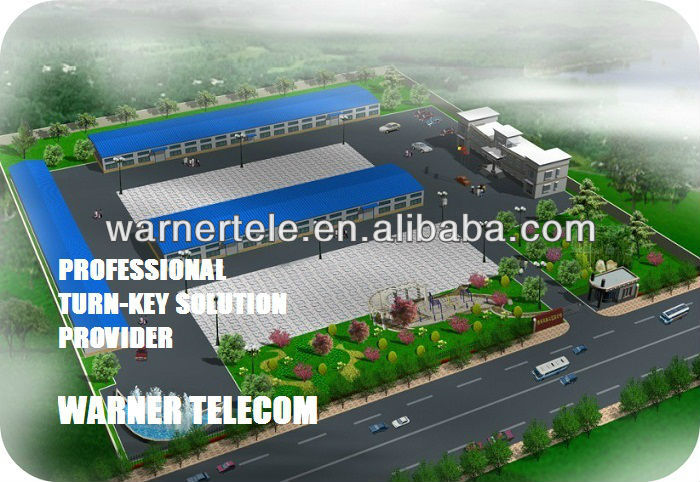

Shanghai Warner Telecom is a global leader in the manufacture and supply of telecommunications equipment,network solution and energy saving system. As a science & technology innovative company, we are dealing with the R&D, manufacture, distribution and after-sales services of optical network communication equipment, optical fiber cable distribution products, telecom shelters and outdoor telecommunication cabinets with it's related power system ,control system ,cooling system ,battery system etc .Head of company located in shanghai ,3 branch factory : FTTX factory located in hebei with an area of more than 8,000 square meters, power control factory located in shenzhen and thermal control factory in suzhou . Warner has a well-established team of experts who can meet customers' specific needs accurately.

We are an ISO9001:2000 certified manufacturer and exporter, our products widely used in Telecom, Netcom, mobiles, underground projects, highways, airports and railways. China Telecom, China Mobile, China Unicom and huawei / ZTE as main customer domestically. Our products are widely exported to dozens of countries and regions, such as Russia, India, France, the USA, Australia, Malaysia and Singapore, used by SingTel, Turk Telecom, BSNL India, Viettel, Etisalat, Telestra, Mobily-Saudi Telecom,Rostelecom etc.

AS a telecom projects / network solution / energy saving system integrator in China, We have strong advantages in organizational competitiveness,teamwork competitiveness ,cultural competitiveness and innovation competitiveness.10 years professional rich experience in design,production and implementation of different projects around this world we have gained great reputation .Depending on standard science management, strict quality control and perfect technical service, we will continuously offer state-of-the-art & cost-effective products and solutions to our esteemed customers globally. We believe we will move to a brighter future together with your firmly support .
