Shanghai Warner Telecom offer you turn-key OLT cabinet power solution :

outdoor cabinet :

W-TEL telecom equipment electrical power system IP66 outdoor cabinet enclosure

W-TEL IP67 EMC telecom equipment electrical outdoor rack cabinet enclosure for battery UPS power distribution supply rectifier
IP66 telecom degree power coated RAL 7035 power coated EMC protection
air-con cooling system
IS0 9001:2000
Emerson design

Maily used in the field of traffic, CATV, electric power etc.Can be used under different conditions: gale, rain, snow, hail, frost, smog and solar radiate etc.The main part of the cabinet is made of magnesium and aluminum alloy .

Temperature Controlled Outdoor Cabinets are Designed and Engineered to Protect as well as facilitate Outdoor Equipment
Installation in very Harsh Weather Conditions. Cabinet automatically maintains the inside Temperature as per equipment requirement and Protect it from very windy, dusty,rainy, hot & Cold weather. This Cabinet is Ideally Designed for Quick & Complex Telecommunication Equipment Installations.

1>Adapts to frame design of "Sandwich" .Covered with magnesium and good capability of

    preservation

2>Introduces the four-point latch-up structure to strengthen safety of cabinet Thermal insulating

     material enchased in component

3>Can prevent conductive heat like outdoor ultraviolet radiation from infiltrating into the cabinet

     effectively

4>Select professional air conditioner with modulation of constant temperature, humidity and setting

    of heating to ensure cabinet is provided with best operating environment

5>Inside is composed of standard 19-21 inch frame

Temperature management, control system, power supply system, entrance guard, environment supervisory system and wiring unit module

Cabinet meets the requirements of IP65-66 level of protection

Poduct Specifications:

l        Waterproof, dust proof:

Sealed by import seal belt, waterproof design and air filter instrument realize the efficient protection,IP 55

l        Temperature and humidity solution:

We adopt different components to control temperature and humidity to ensure the best working condition inside the cabinet.

l        Anti-corruption solution:

The surface of the cabinet , fan and air-condition are made of aluminum alloy, can protect from UV and salt material.

l        Machine protection solution:

The cabinet is designed specifically to protect it from human damage, earthquick and other damages.

l        EMC protection

Dealed with hydrochloric acid, use EMC seal belt , special earthing to avoid and reduce creepage.

Thermal Management
o Air Conditions
o Heat Exchanger
o Fan Filter Cooling
IP Rating
o IP 55

Main Unit

o Basic Frame of extruded aluminum ALMgSio with die-cast aluminum corner
connector polished
o Bottom and Top cover, rear panel corner extrusions and side panel of chromeplated
aluminum ALMg3, 1.5, 2, 2.5mm polish.
o Double skinned construction & heat insulation between the skins.
o 19" / 23" Metric and Battery Compartment.
Materials
o SSPC cold rolled steel, aluminum, zinc magnesium-plated steel or others.
o Thickness Plinth : 2.5mm , others : 1.5mm
Surface Finishing
o Decreasing, Picking, Phosphoric, Powder coated.
o Body and Door : RAL 7032 / Customized
o Water Proof Cover : RAL 5016
Loading Capacity
o Static Load : 3000Kg / Customized

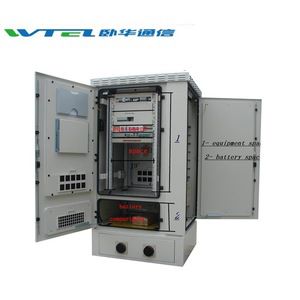

Divided into four parts:

equipment zone, wiring zone, cell zone and electric source zone.

Adopt special imported outdoor industrial air-conditioner.

The perfect earthing system to protect it from thunder.

The cabinet meets the requirements of IP 65 protection level.

The enshroud dustproof net is installed in the air circulation system to protect the entry of dust and insects.

Special A4 size material box and unique PC panel, easy maintainance and operating.

Cable Management
o Double Side Cable Clamp as option
o Three ways Cable Entry with Rotec.
Door
o Double skin closed and vented for installation of thermal components.
o Can be used as front and rear door, door Hinges on right and left.
o Strong hidden die cast aluminum Hinges.
o Strong handle for profile half cylinder and Saw protection.
Sensor
o Water Logging Sensor.
o Temperature Sensor.
o Door Opening Sensor.
Security
o Lockable, Three Point Locking mechanism.
o Pad-lock for extra security.
Log Book Shelf
EMC Sealing
o As per Standard.
Manufacturing Standard ( In Compliance )
o EN-60529.
o IEC 68-2-6.
o GR-63-Core.

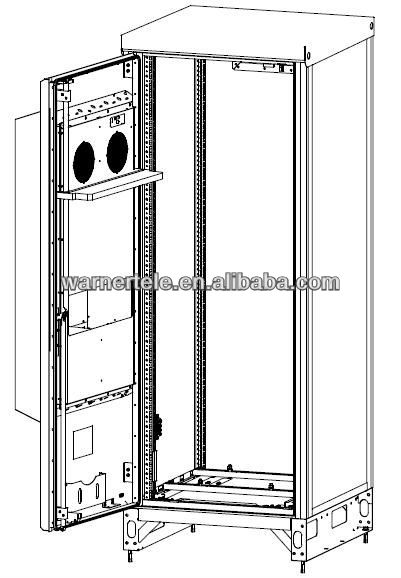

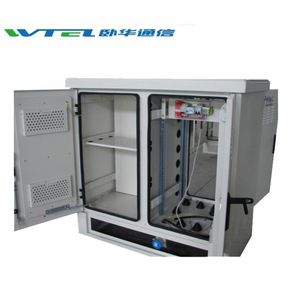

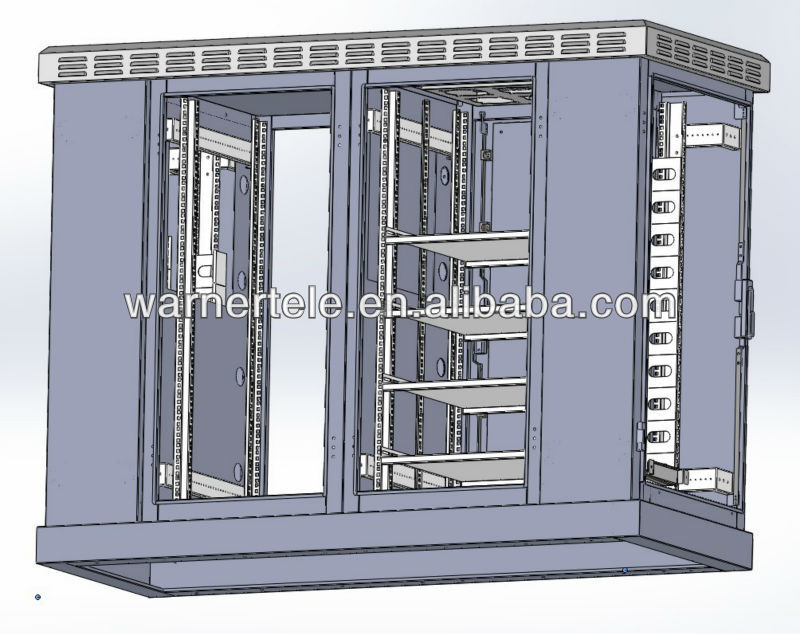

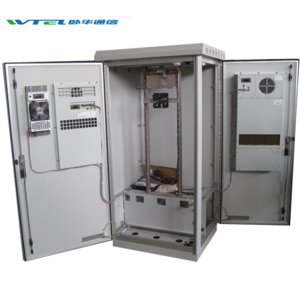

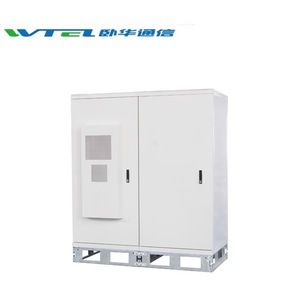

DETAIL SHOW :

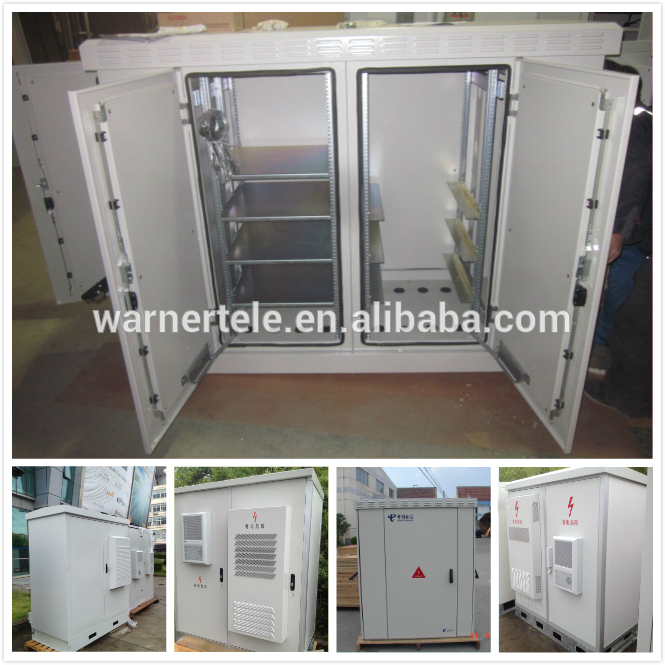

 PROJECTS DISPLAY :

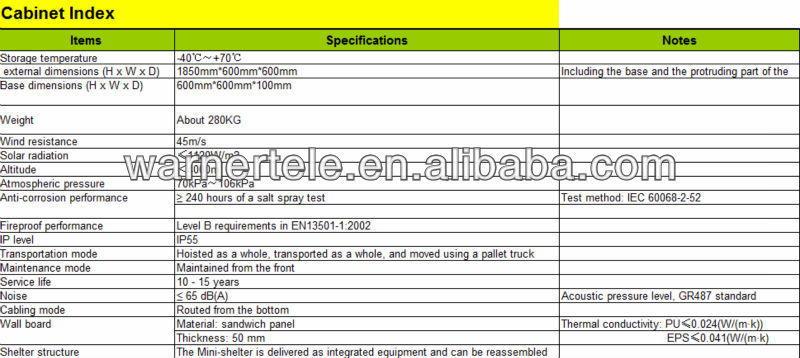

INDEX :

Exhibition & overseas business :

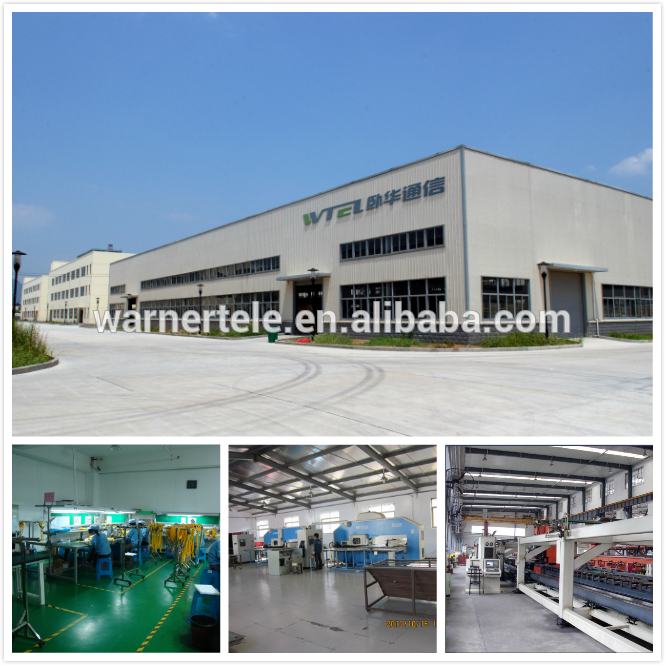

Company  overview :

Shanghai Warner Telecom is a global leader in the manufacture and supply of telecommunications equipment,network solution and energy saving system. As a science & technology innovative company, we are dealing with the R&D, manufacture, distribution and after-sales services of optical network communication equipment, optical fiber cable distribution products, telecom shelters and outdoor telecommunication cabinets with it's related power system ,control system ,cooling system ,battery system etc .Head of company located in shanghai ,3 branch factory :  FTTX factory located in hebei with an area of more than 8,000 square meters, power control factory located in shenzhen and thermal control factory in suzhou . Warner has a well-established team of experts who can meet customers' specific needs accurately.

We are an ISO9001:2000 certified manufacturer and exporter, our products widely used in Telecom, Netcom, mobiles, underground projects, highways, airports and railways. China Telecom, China Mobile, China Unicom and huawei / ZTE as main customer domestically. Our products are widely exported to dozens of countries and regions, such as Russia, India, France, the USA, Australia, Malaysia and Singapore,  used by SingTel, Turk Telecom, BSNL India, Viettel, Etisalat, Telestra, Mobily-Saudi Telecom,Rostelecom etc.

AS a telecom projects / network solution / energy saving system integrator in China, We have strong advantages in organizational competitiveness,teamwork competitiveness ,cultural competitiveness and innovation competitiveness.10 years professional rich experience in design,production and  implementation of different projects around this world we have gained great reputation .Depending on standard science management, strict quality control and perfect technical service, we will continuously offer state-of-the-art & cost-effective products and solutions to our esteemed customers globally. We believe we will move to a brighter future together with your firmly support .

Company certificate :

Others :

3 years warranty for non-electricals system .

12 month warranty for electricals system .

We accept TT,LC payment term .

Standard package for overseas business with EXW,FOB,C&F,CIF,DDU,DDP etc terms for your reference .

Free sparts & accessories for replacement during warranty time.

Life time free technical service available .
