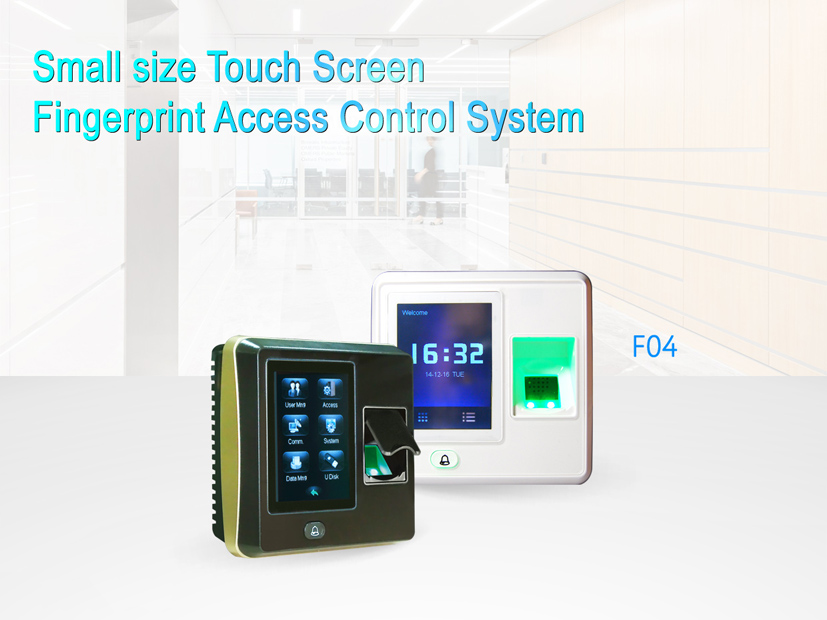

F04 Granding 2.8 Inch Touch Screen Fingerprint Access Control And Time Attendance System
Features
♦ 2.8- inch touch screen, color display with graphical UI for easy operation.
♦ Voice prompt for acceptance and rejection of valid/ invalid fingers.
♦ Compact and Lightweight, small size for 86*86mm socket installation.
♦ TCP/IP or Rs485 communication for various networking environments.
♦ Supports USB flash drive for offline data management.
♦ Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
Specifications
| LCD Display | Access control Interface |
| 2.8 inch restive touch Screen | Electric lock, Door sensor, Alarm, Exit button, Door bell |
| Fingerprint Sensor: optical Sensor (500DPI) | |
| Capacity | Environment |
| Fingerprint:1,500 | Operation temperature:0℃~45℃ |
| Card:5,000 (EM/MF) Records:80,000 | Operation humidfity:20%~80% |
| Communication | Power Supply |
| TCP/IP, RS485, USB Host, Wiegand in/out | DC12V/3A(optional) |
| Algorithm Version | Aux. Input |
| Finger VX10.0 | 1ea for linkage function |
| Dimension(W*H*L) | |
| 105*105*34mm |

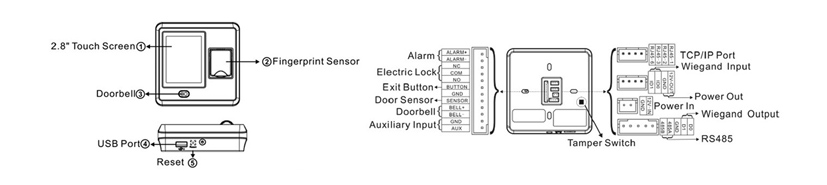

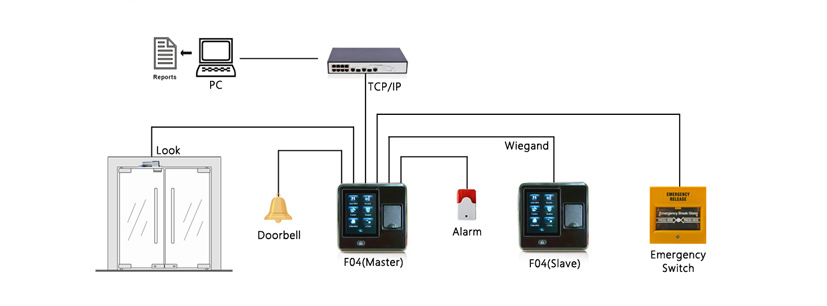

Connection Diagram
