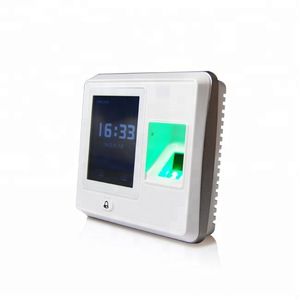

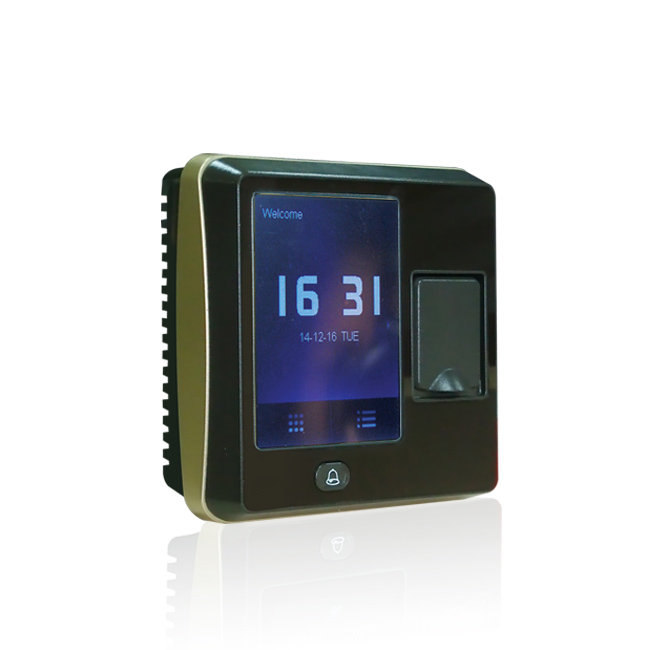

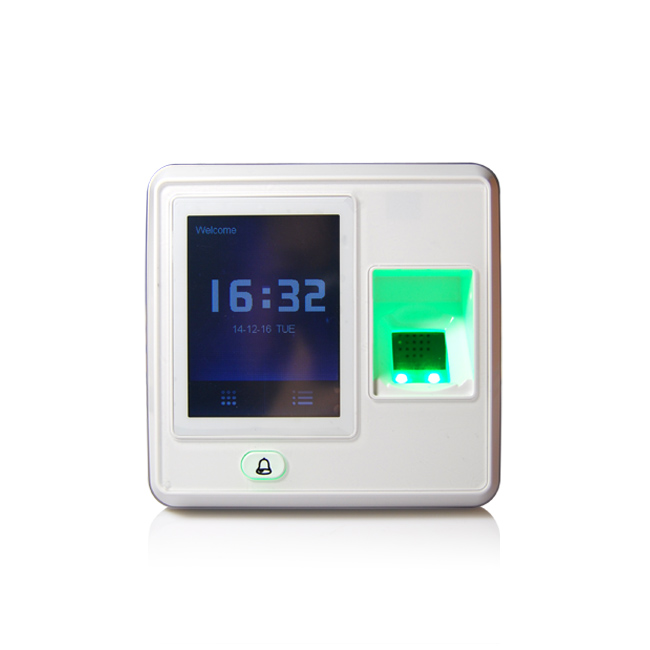

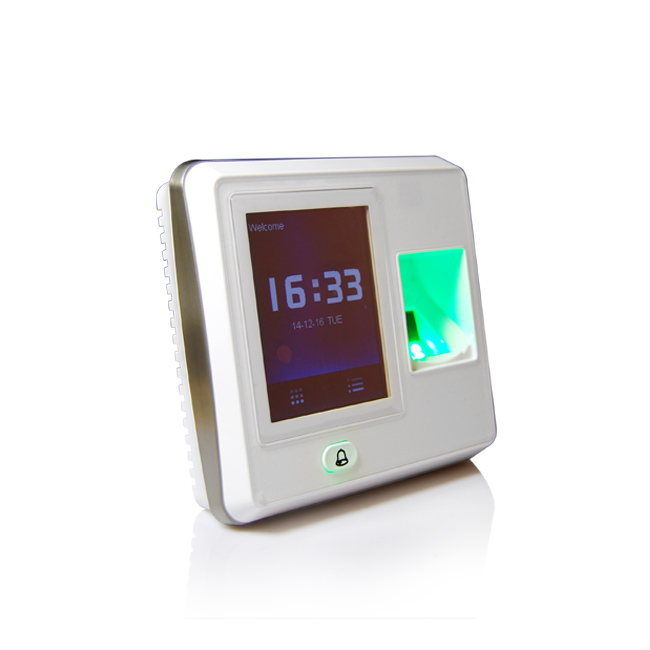

2.8 inch Small Size TFT Touch LCD Screen Fingerprint Access Control System
• 2.8 inch TFT touch LCD screen.
• Voice prompt for acceptance and rejection.
• TCP/IP and RS485 communication.
• Up to 15 multi-verification types.
• Up to 24 user-defined schedules bell.
• Compact and small size.
• USB flash drive for offline data management.
• Tamper-proof switch and multiple alarm outputs.
Model | F04 |
LCD Display | 2.8-inch touch Screen |
Fingerprint Sensor | Optical Sensor(500DPI) |
Algorithm Version | Finger VX10.0 |
Communication | TCP/IP, RS485, USB Host |
Capacity | Fingerprint: 1,500, Card: 5,000 (optional), Logs: 80,000 |
Access Control Interface | Electric lock, Door sensor, Alarm, Exit button, Door bell |
Wiegand Signal | Wiegand input & output |
Aux. Input | 1ea for linkage function |
Power Supply | DC12V/3A (PS-3A is optional) |
Operation Environment | 0-45℃(32-113℉) |
Operation humidity | 20℃-80℃ |

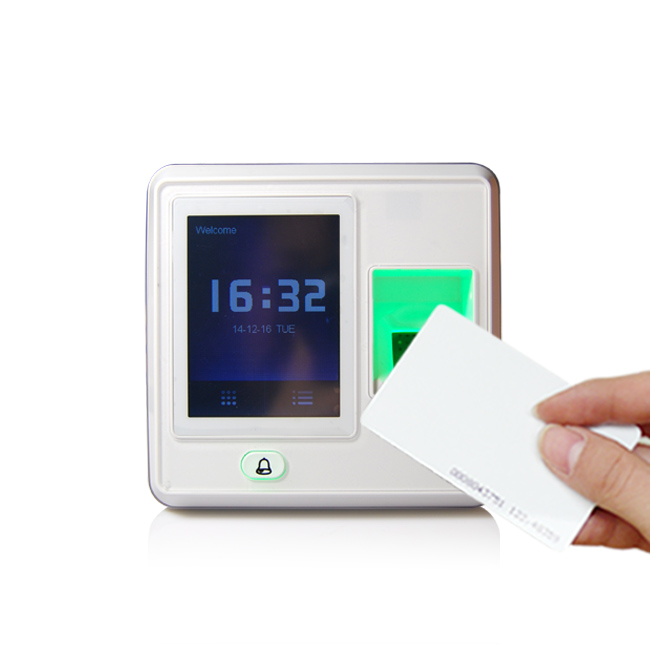

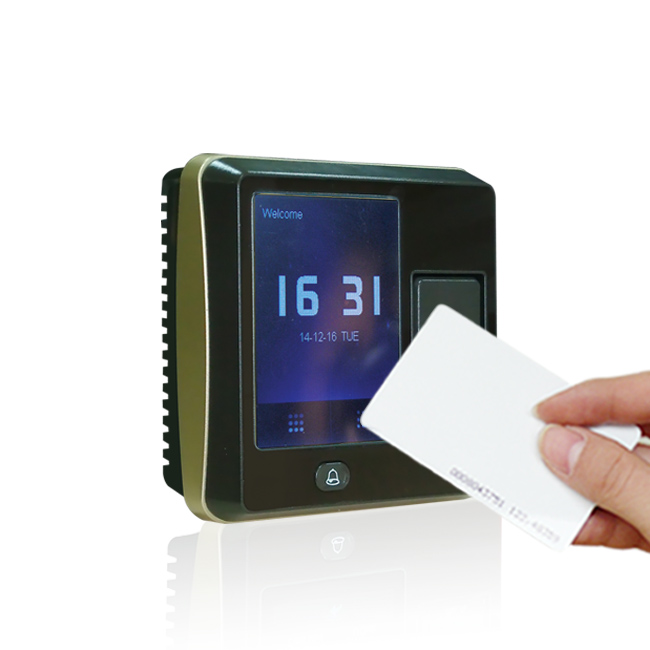

Customize function | ID/Mifare card reader, DST |
Dimension(W*H*L) | 105*105*34mm |
Function support | Built-in relay, Interface with alarm, Door sensor, Exit button and door lock for access control, 50 timezones, 10 combination, 99 groups, auto state, Schedule bell, Door bell, Holiday control, 9 PIN User ID |

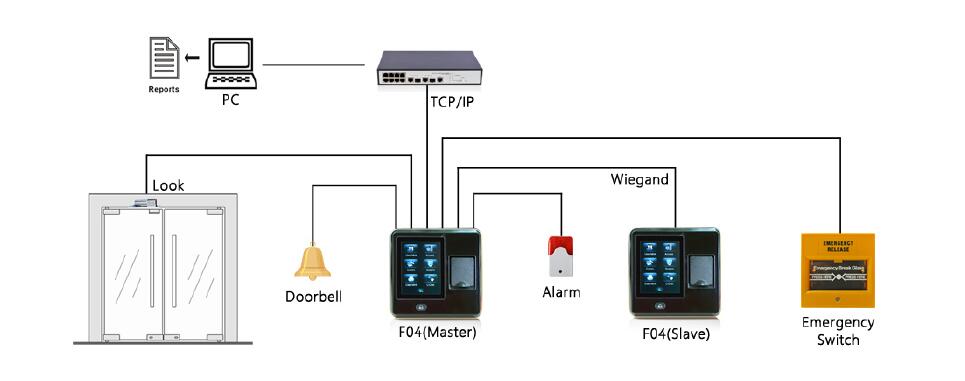

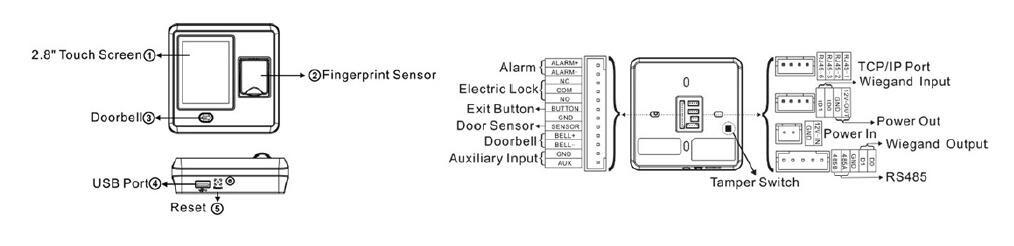

Structure Diagram

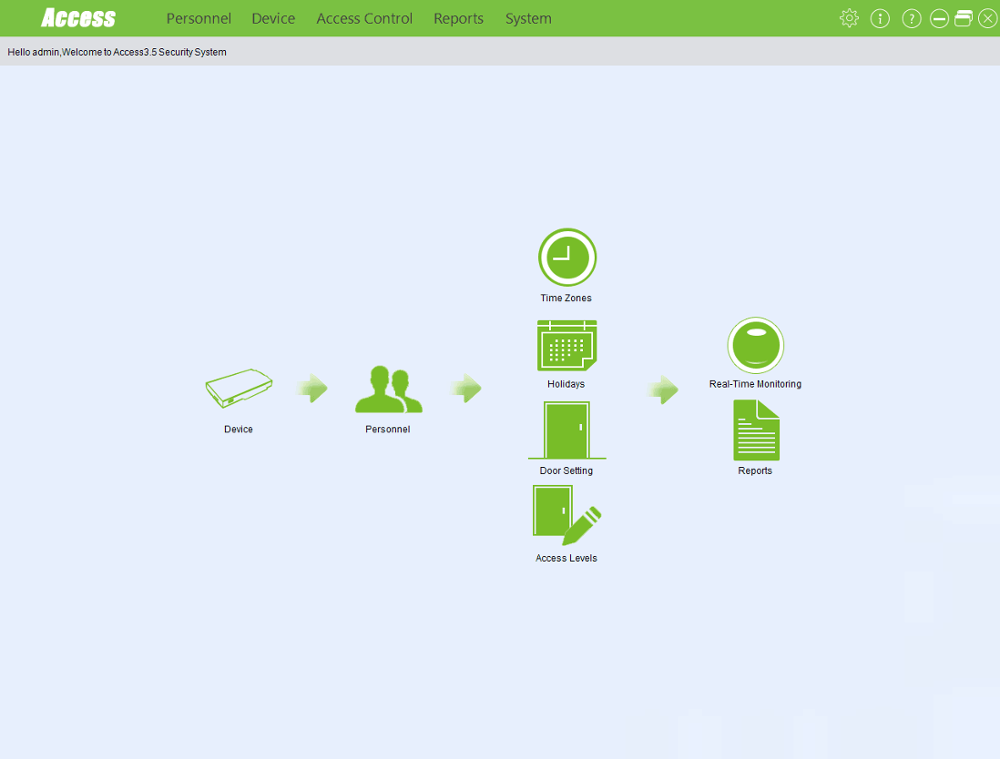

Access Control Management Software
