20kva-1250kva Electric Generator With Stamford Alternator

60HZ generating set can be supplied according to the customer,s requirement.

Technical Feature

  • Shandong, China (Mainland)
  • VOVAC
  • VC16GF-VC1000GF
  • AC Three Phase
  • 1500rpm
  • 50/60hz
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Shandong, China (Mainland)
Brand Name
VOVAC
Model Number
VC16GF-VC1000GF
Output Type
AC Three Phase
Speed
1500rpm
Frequency
50/60hz
Rated Power
20kva-1250kva(16-1000kw), 20kva-1250kva(16-1000kw)
Rated Voltage
400/230v,380/220v
Rated Current
28.8A-1800A
Function
ATS /AMF
Color
As required
Engine
Deutz engine
Alternator
Stamford/Marathon/Vigor/Wattek
Type
Open frame/silent type/mobile type/weather canopy type optional
50hz/60hz
transferable

DETAIL DESCRIPTION



20kva-1250kva Electric Generator



Product Description

 Description of electric generator

1.Electric generator power range: 20kva-1250kva

2.Electric generator type: open type, soundproof type, trailer type etc

3.Diesel engine: Cummins/Ricardo/Deutz diesel engine etc

4.Alternator:brushless, Stamford/marathon/leroy somer/Vigor/Wattek
5.Control panel: smartgen,harsen,deep sea,comap etc

6.Apply to: factory, hotel, school, hospital, super market etc



 1. Selection table-Electric generator



1) Catalogue of electric generator powered by cummins engine

Genset ModelPrime PowerStandby PowerDiesel EngineAlternator
VC18GF18/22.519.8/24.84B3.9-G1KHI18
VC22GF22/27.524.2/30.34B3.9-G1KHI22
VC25GF25/31.327.5/344BT3.9-G1KHI25
VC30GF30/37.533/414BT3.9-G1KHI30
VC40GF40/5044/554BTA3.9-G2KHI40
VC50GF50/62.555/68.76BT5.9-G1KHI50
VC58GF58/72.563.8/806BT5.9-G1KHI58
VC70GF70/87.577/966BT5.9-G1KHI70
VC80GF80/10088/1106BT5.9-G2KHI80
VC96GF96/120105.6/1326BTA5.9-G2KHI96
VC112GF112/140123.2/1546BTAA5.9-G2KHI112
VC120GF120/150132/1656CTA8.3-G2KHI128
VC144GF144/180160/2006CTA8.3-G2KHI144
VC160GF160/200176/2206CTAA8.3-G2KHI160
VC180GF180/225198/247.56LTAA8.9-G2KHI180
VC200GF200/250220/2756LTAA8.9-G2KHI200
VC240GF240/300264/330NTA855-G1AKHI240
VC250GF250/312.5275/344NTA855-G1AKHI250

NOTE: 1) 60HZ generating set can be supplied according to the customer,s requirement.

             2)Silenttype/mobiletype/weathercanoyselected

             3)Payment terms: TT/LC     Delivery period: 20 working days

             4)Alternator brand :Stamford,Marathon,Faraday,Vigor,Xingnuo,LeroySomer selected



 2) Catalogue of Electric generator powered by deutz engine

Genset ModelPrime PowerStandby PowerDiesel EngineAlternator
VD40GF40/5044/55WP4D66E200KHI40
VD50GF50/62.555/68.8WP4D66E200KHI50
VD58GF58/72.563.8/80WP4D99E200KHI58
VD70GF70/87.577/96WP4D99E200KHI70
VD80GF80/10088/110WP4D99E200KHI80
VD96GF96/120105.6/132WP6D132E200KHI96
VD112GF112/140123.2/154WP6D132E200KHI112
VD128GF128/160140/176WP6D152E200KHI128
VD144GF144/180160/200WP10D200E200KHI144
VD160GF160/200176/220WP10D200E200KHI160
VD180GF180/225198/247.5WP10D238E200KHI180
VD200GF200/250220/275WP10D264E200KHI200
VD240GF240/300264/330WP12D317E200KHI240
VD250GF250/312.5275/344WP12D317E200KHI250
VD300GF300/375330/412.5WP13D385E200KHI300

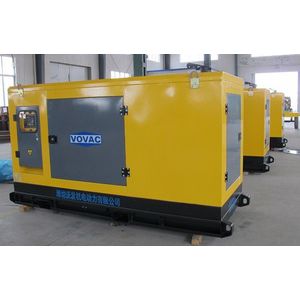

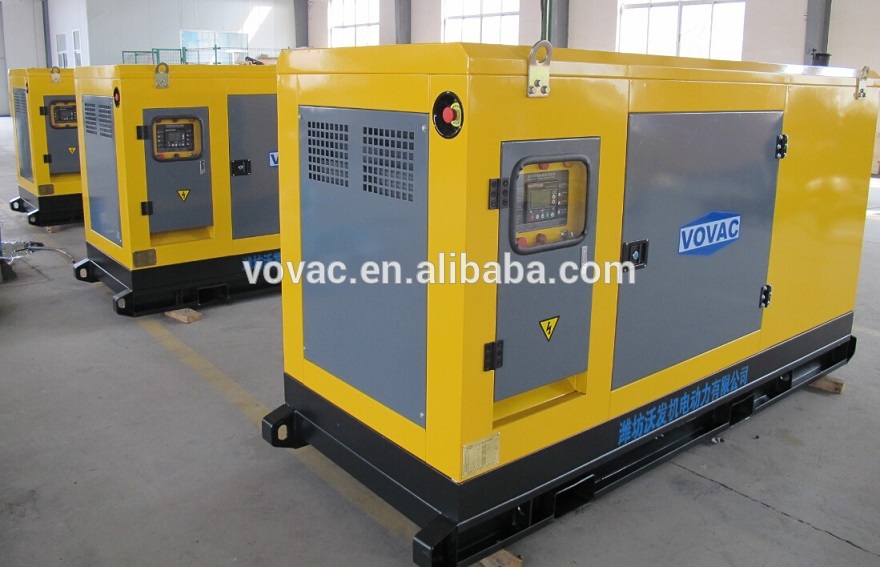

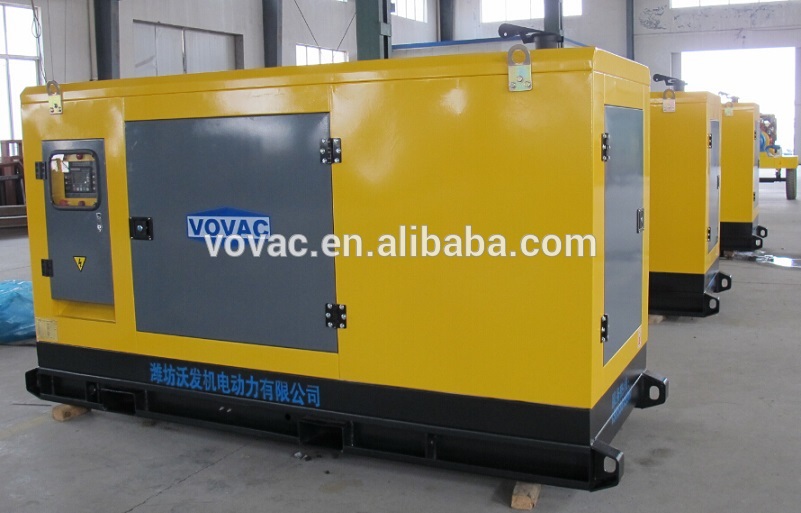

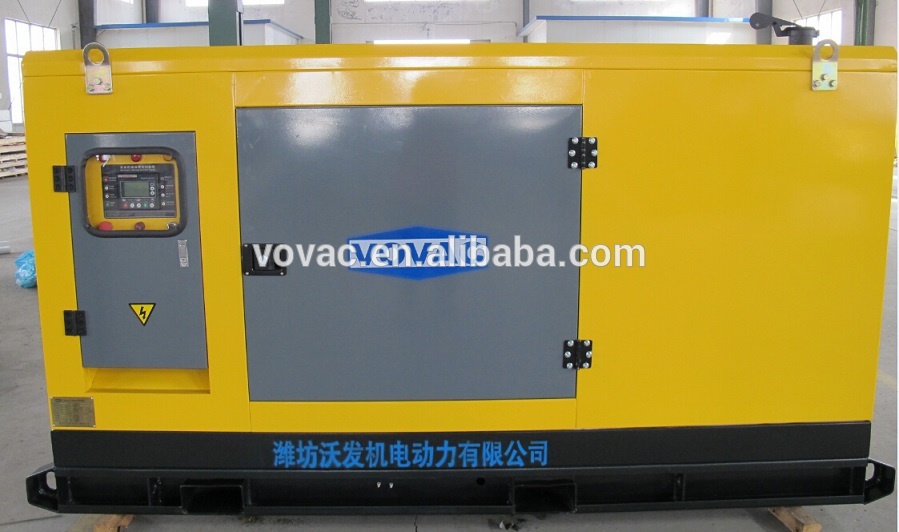

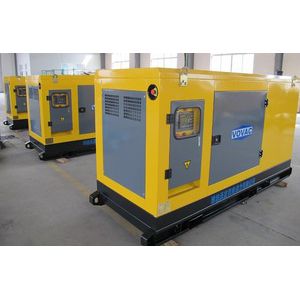

2. Pictures of electric generator

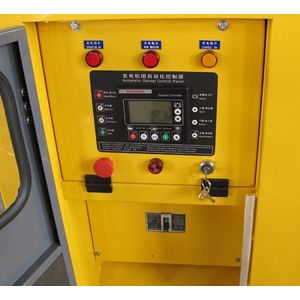

                              Control panel



Company Information


Our Cooperate Partner

Our factory





Packaging & Shipping

 1) Shipment by FCL or LCL.

 2) Delivery time: 10-15 working days after the deposit.
 3) Package:  plywood case export standard, or plastic films, or container, as customers requirement



Our Services



If you are interested in our electric generator, pls contact us, we will select a best solution for you.



Send Consultations Sending PUBLIC question and getting response from the supplier

Send Only your public informations will be shown

All Consultations

See More
Send Project Inquiry

Weifang Vovac Power Co., Ltd.

Diesel Generator Set,Machinery,Diesel Genset,Trailer Pump,Clutch

China
Supplier Page Contact Supplier

Products From Supplier

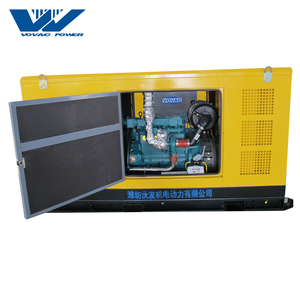

50kw electrical diesel generator set

This series diesel generator set is powered by Cummins series diesel engine .Specification of super silent diesel generator:Output range:40KW(50KVA) up to 800KW(1,000KVA)Engine model:4BTA3.9-G,6BT5.9-G,6BTA5.9-G,6BTAA5.9-G,6CTAA83-G,NTA855-G,KTA19-G,

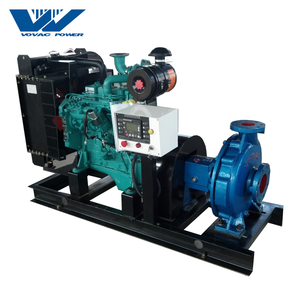

6 inch farm irrigation water pump driven by diesel engine
