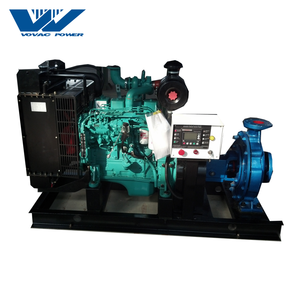

6 inch farm irrigation water pump driven by diesel engine
1.Outflow: 10m3/h--10000m3/h, headlift:5--500m
2.Usage: Agricultural Irrigation, industrial water supply, fire fighting, mine industry, drawing mud and so on
3. Good quality and competitive price
4. Brand: With Cummins engine, Deutz Air Cooled, Ricardo, Yangdong, Per kins diesel engine and so on

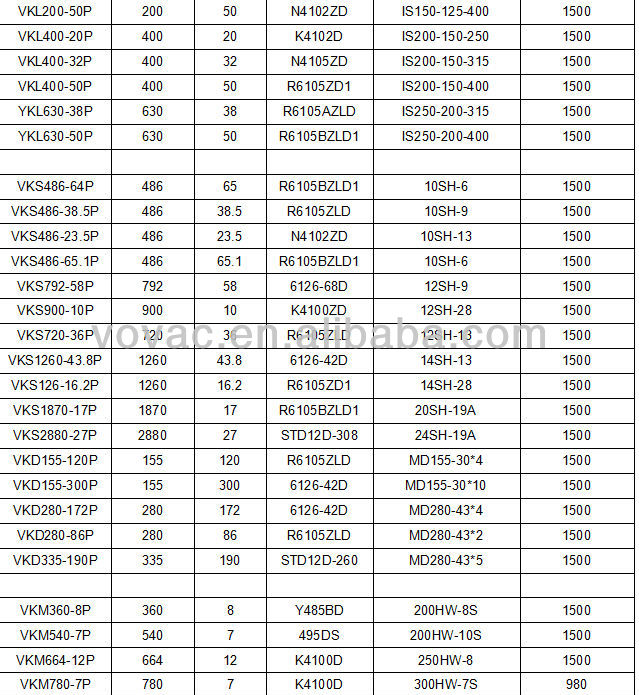

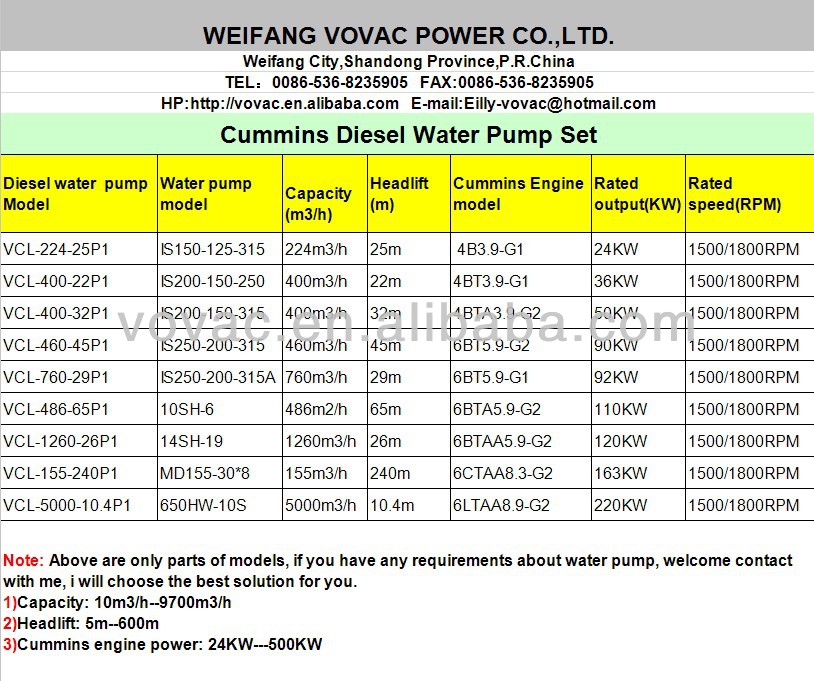

1)Irrigation Water Pump Catalogue

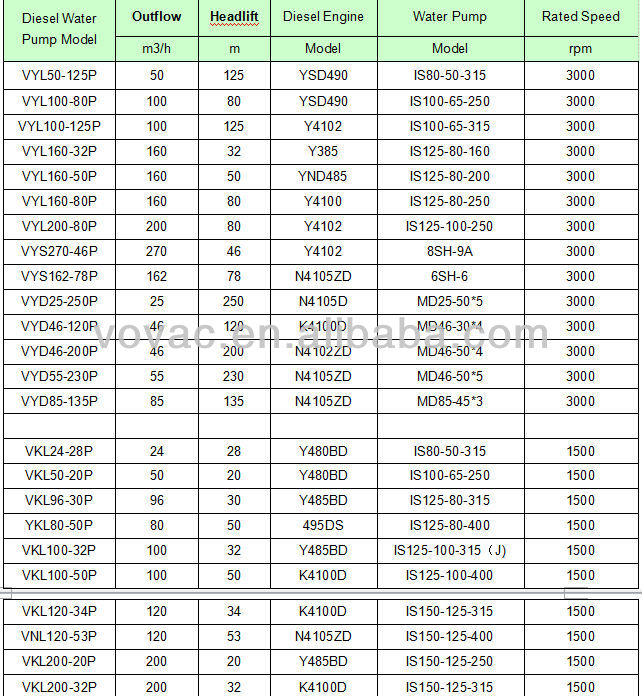

2) Irrigation Water Pump specification
| RICARDO DIESEL WATER PUMP | |
| Model of Diesel pump | V30DPK01 (Q=397 m3/h H=14.9m ) |
| Model Diesel Engine | R4100 |
| Rated Output | 30.1KW |
| Rated Speed (r/min) | 1500 |
| Starting Method | 24V DC Electric motor |
| Cooling Method | closed water cooling |
| Governing Method | Mechanic governing |
| Cylinders | 4 |
| Type | closed water cooling,in-line,4 stroke, humid liner,direct injection |
| Model Pump | IS200-150-250 |
| Type | single-stage,single-suction,centrifugal pump |
| Outflow | 397 m3/h |
| Head lift | 14.9m |
| Suction lift | 6.5m |
| Shaft Power | 20.9KW |
| Inlet diameter | 200mm (8 inch) |
| Outlet diameter | 150mm (6 inch) |
| Casing material | cast iron |
| Shaft material | Stainless steel |
| Impeller material | cast iron |
| Sealing method | Stuffing seal |
| Control System | Display oil pressure,speed, water temperature,oil temperature. |
| Standard Equipments | Diesel engine: 1set |
| Water pump: 1set | |
| Common base with 8 hour fuel tank:1 set | |
| Oil filter:1set | |
| Fuel filter:1set | |
| Air filter:1set | |
| Display meters: 4set | |
| Battery:DC 12V*2 | |
| Accessary spare parts | |
| Technic file: 1set | |
| Packing | Plywood case |
| Payment Terms | T/T30% deposit,balance before shipment |
| Delivery Time | 15 working days after received 30%deposit |
| MOQ | 1SET |

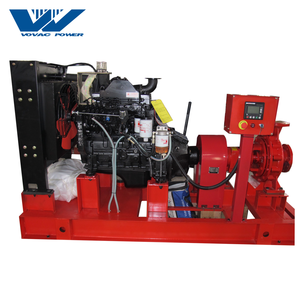

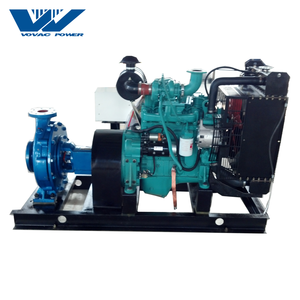

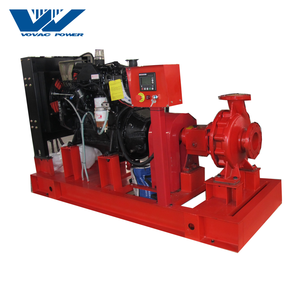

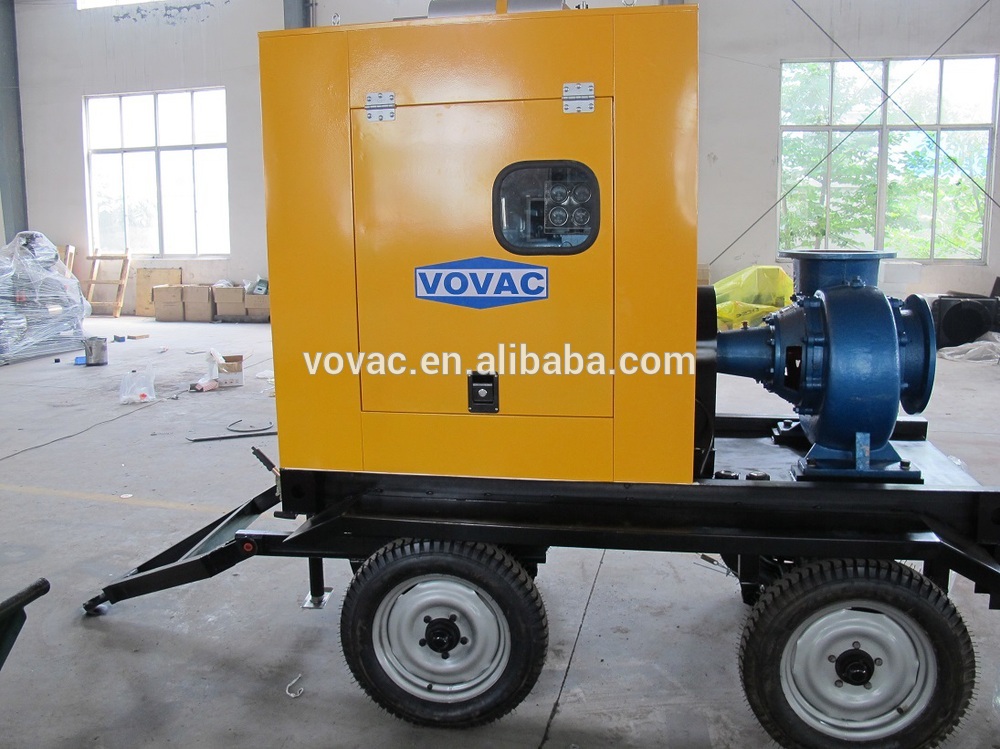

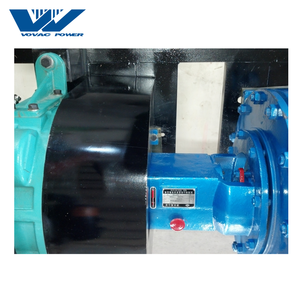

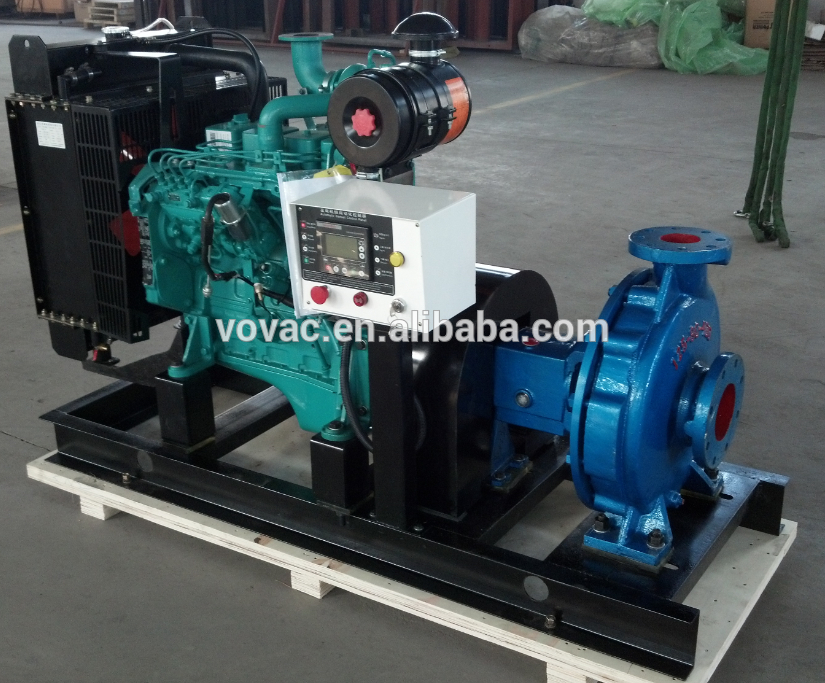

3)Irrigation Water Pump Detail Picture

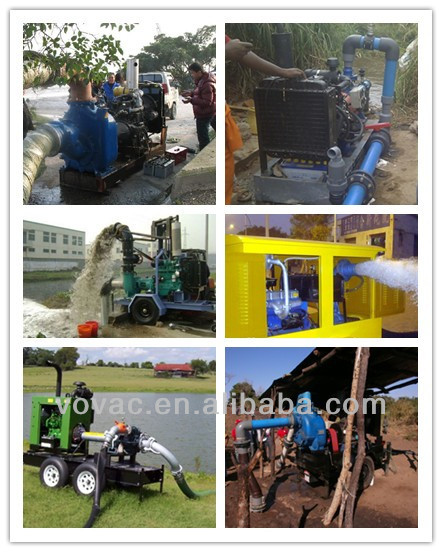

4)Clients Using Pictures
5)Cooperation Partner

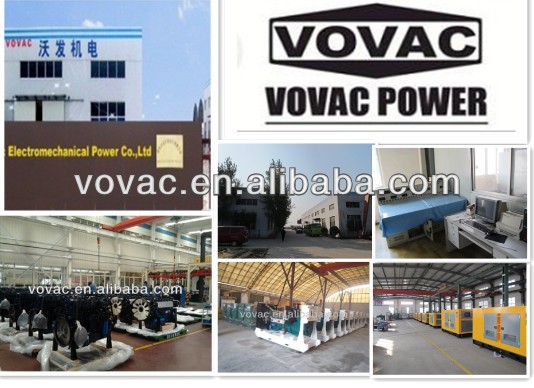

6)Factory Picture
