1.silent, electric, with 30AH storage battery
2.low fuel consumption
3.with four wheel
4.good quality and after sales service
5,CE,GS,EPA,ISO9001

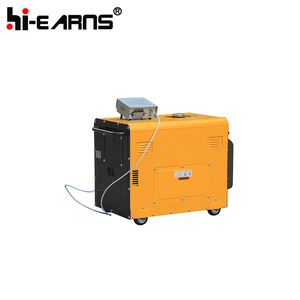

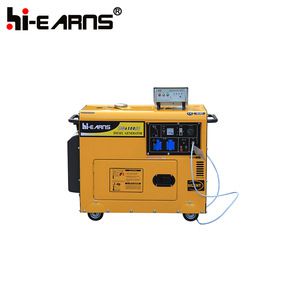

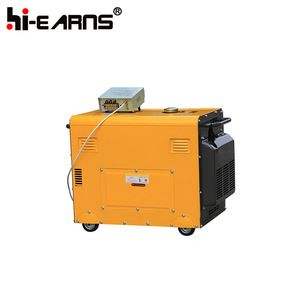

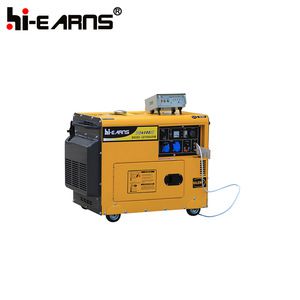

5KVA electric silent air-cooled diesel generator
| GENERATOR | Model | DG6500SE |
| Frequency(HZ) | 50 | 60 |
| Max. output(kw) | 5 | 5.5 |
| Rated output(kw) | 4.6 | 5.0 |
| Rated. AC voltage(v) | 120, 220, 230, 240 | |
| Power factor(cosΦ ) | cosΦ =1 | |
| DC output (v) | 12V/8.3A | |
| Phase | Single phase or three phase | |
| Alternator type | self-excited | |
| Starting system | Electric | |
| Operating noise level(at 7m) | 68~72 | |
| Fuel tank capacity(L) | 16 | |
| Continues work(hr) | 8.5 | 7.8 |
| ENGINE | Model | HR186FA |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |
| Bore× stroke(mm) | 86×72 | |
| Fuel | 0# or -10# light diesel fuel | |
| Lubrication oil volume(L) | 1.65 | |
| Combustion system | Direct lnjection | |
| STANDARD FEATURES | Voltmeter | yes |
| AC Output Socket | 2 | |
| AC circuit breaker | yes | |
| Oil warning light | yes | |
| Oil alert | yes | |
| OPTIONAL FEATURES | DC circuit breaker | optional |
| Calculagraph | optional | |
| Big Wheel | optional | |
| Three phase voltage | optional | |
| Current meter | optional | |
| ATS | optional | |
| Remote control | optional | |
| Welding | No | |
| DIMENSIONS | Dimension(L× W× H)(mm) | 925×525×680 |
| Net weight(kg) | 155 | |
| 20FT | 72 |

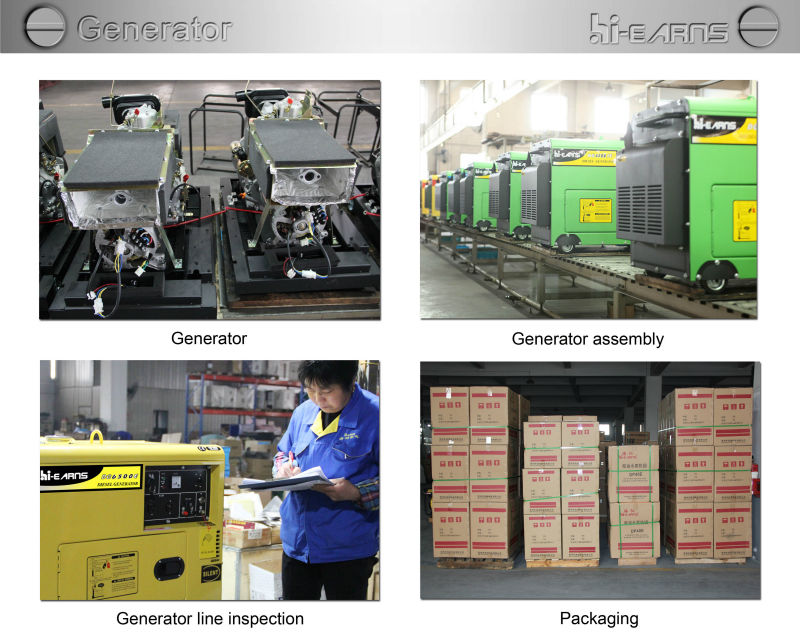

♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
♦ We are manufactory covering diesel and gasoline engine, diesel generator from 2-500KW, water pump, trash pump, construction machinery like vibrator, rammer, compactor, concrete cutter, power trowel, farm machinery and so on.
1. Reliable Performance:
Reliable Performance is the major advantage of Hi-earns products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.
2. Customer First:
We devote ourselves to develop products to meet customers' requirements .Our engineer develop and design new products for customers.

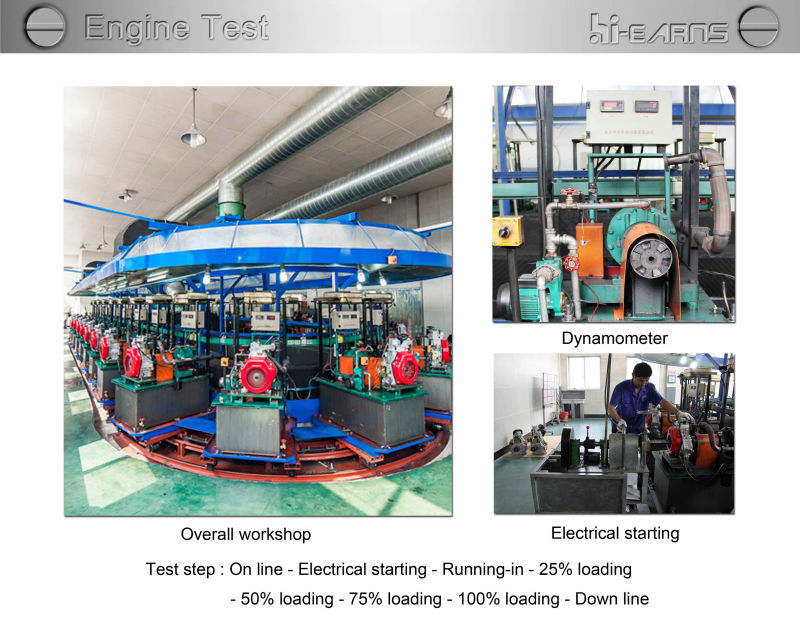

3. Strict test process before ex-factory:
Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.
4. Low fuel consumption, easy maintenance
5. Certification: CE,ISO,GS,SONCAP etc.
6.Our logo or OEM

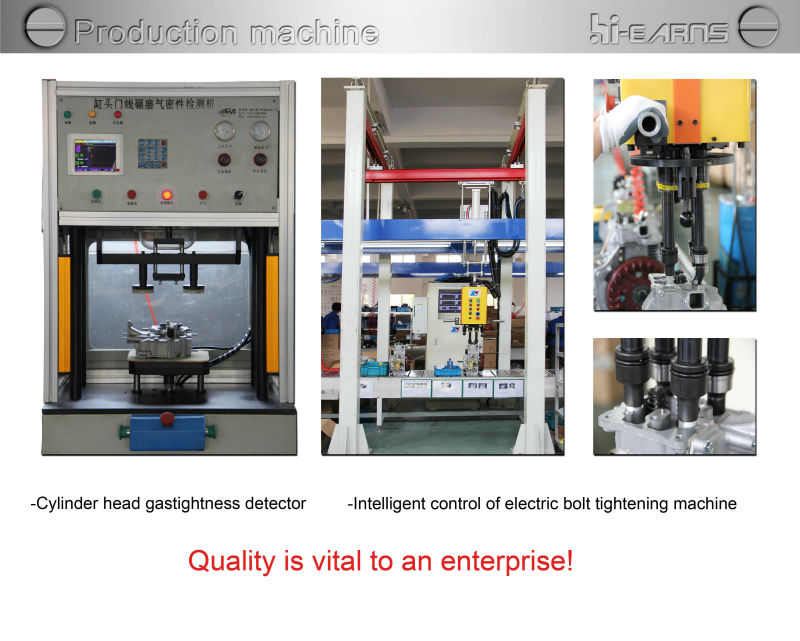

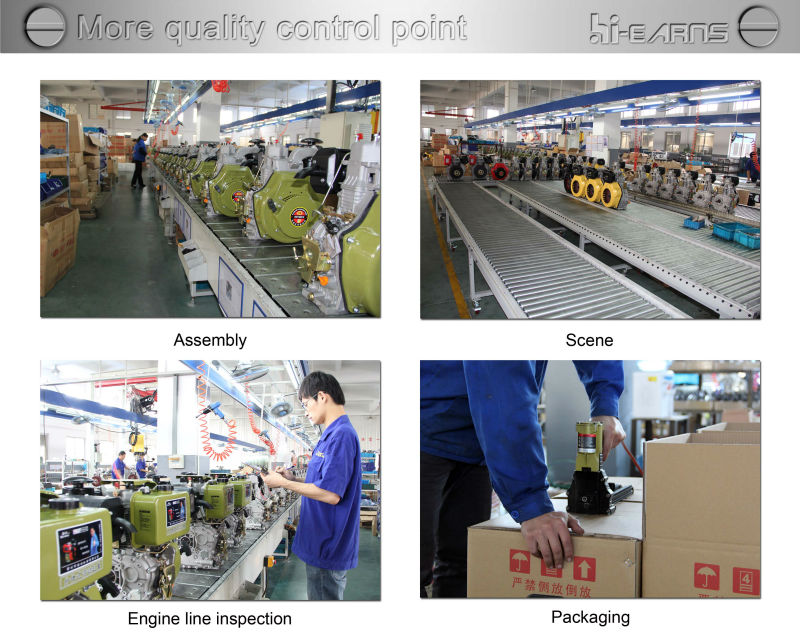

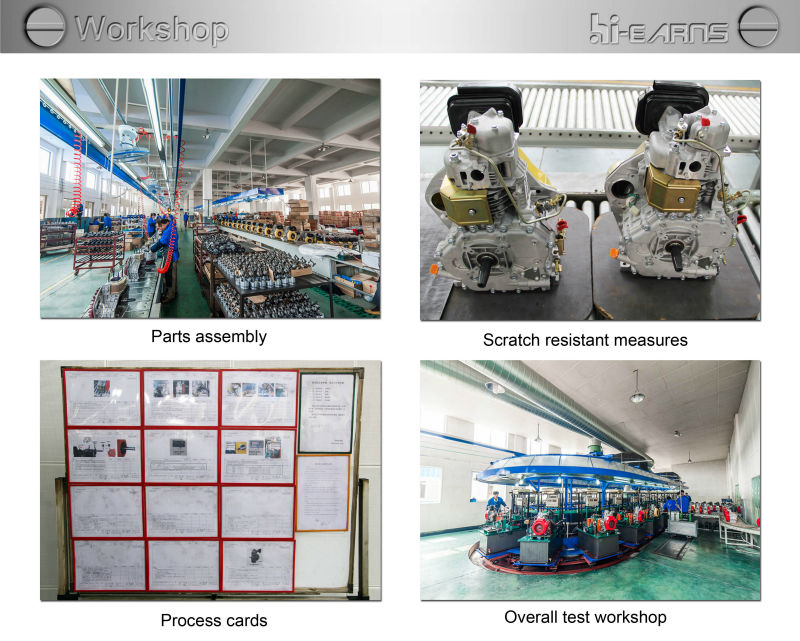

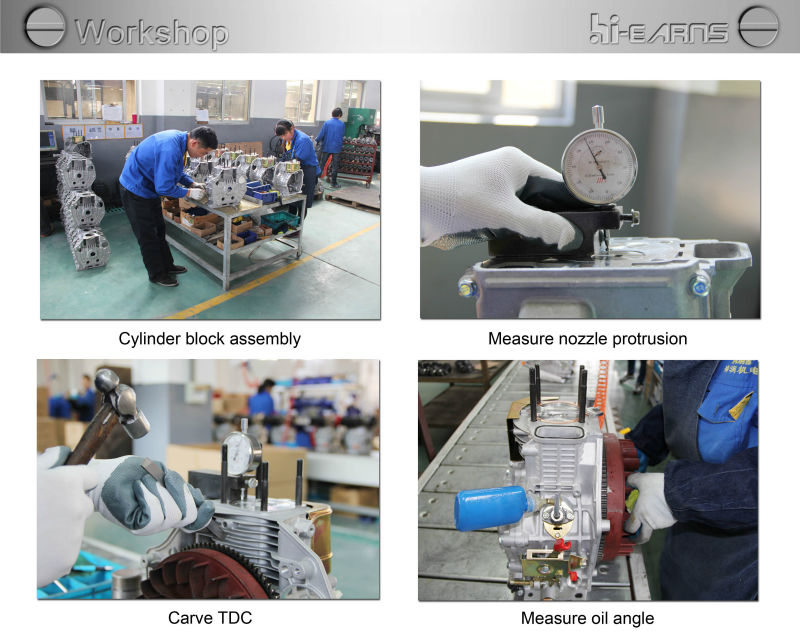

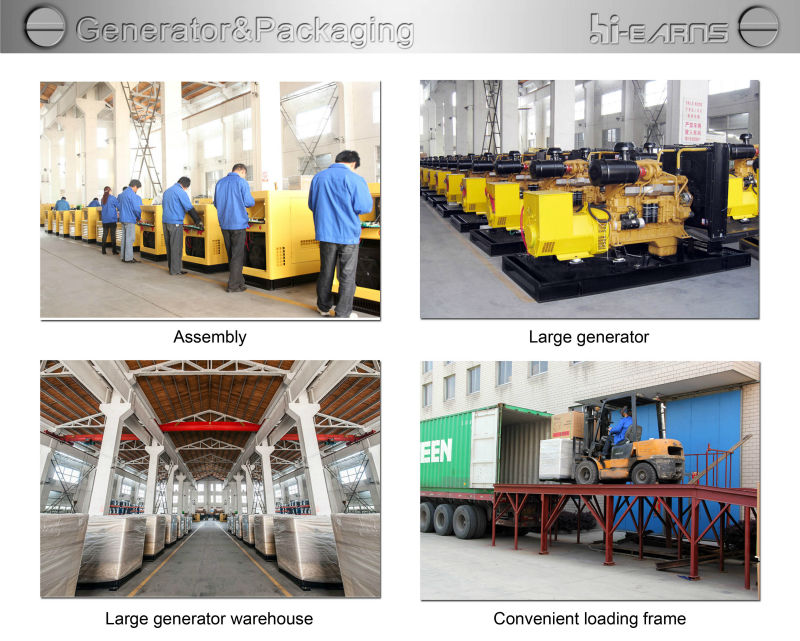

♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
