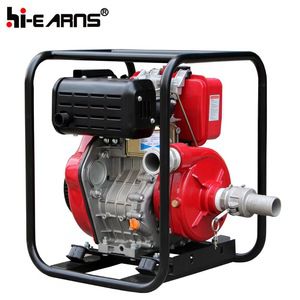

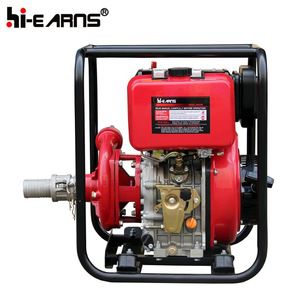

2 inch high pressure cast iron portable air cooled water pump

Strict spare parts IQC system, to ensure every spare parts are qualified.

Technical Feature

  • Jiangsu, China (Mainland)
  • Hiearns or OEM
  • DP20HCI
  • Centrifugal Pump
  • Other
  • Water
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$100~250

PRIMARY PARAMETERS

DETAIL DESCRIPTION

2 inch high pressure cast iron portable air cooled water pump



WATER PUMPModelDP20HCI
Suction,discharge port diameter[mm(in)]50(2")
Cont.head(m)90
Self-priming time(s/4m)              NO
Max suction head(m)8
Cont.capacity(m³/hr)35
ENGINEEngine modelHR186FA
Speed(rpm)3600
TypeSingle-cylinder,vertical,4-stroke air-cooled diesel engine

Displacement(cc)

 438

Bore*stroke(mm)

 86 × 72

Starting system

Electric
Fuel tank capacity(L)5.5
STANDARD FEATURESOil alertyes
Connector of infall,Connecto of outfallyes
Filteryes
Seal ringyes
Hoopyes
DIMENSIONSDimension(L× W× H)(mm)645×475×605
Net  weight(kg)80
Advantages

1. Reliable Performance:

Reliable Performance is the major advantage of Hi-earns products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.

2. Customer First:

We devote ourselves to develop products to meet customers' requirements .Our engineer develop and design new products for customers.

3. Strict test process before ex-factory:

Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.

4. Low fuel consumption, easy maintenance

5. Certification: CE,ISO,GS,SONCAP etc.

6.Our logo or OEM


















Warranty and Service

Warranty

Guarantee for one year or 800 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons(refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.

Service

1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2.If the broken spare parts are in the period under warranty, we will offer this spare parts for free under the condition of this spare parts are not intentionally damaged.
