Automatic Backwash Filter for municipality water supply system

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin

Beijing, China (Mainland)

Brand Name

AIGER

Model Number

A200series

Color

Red&personalized customization

Material quality

stainless steel

Filtering precision

50 ~ 3000u03bcm

Pressure rating

1.0Mpa/1.6Mpa/2.5Mpa

Single water filter flow

80~1500 m3 / h

Backwash water

for total filtered water 1 to 3%

Drive way

hydraulic drive; motor drive

Control mode

pressure control; PLC timing control; manual control

Sewage way

automatic or brush, safe and reliable, trouble-free

Installation

horizontal

DETAIL DESCRIPTION

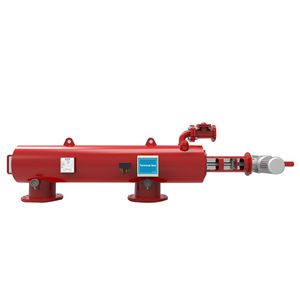

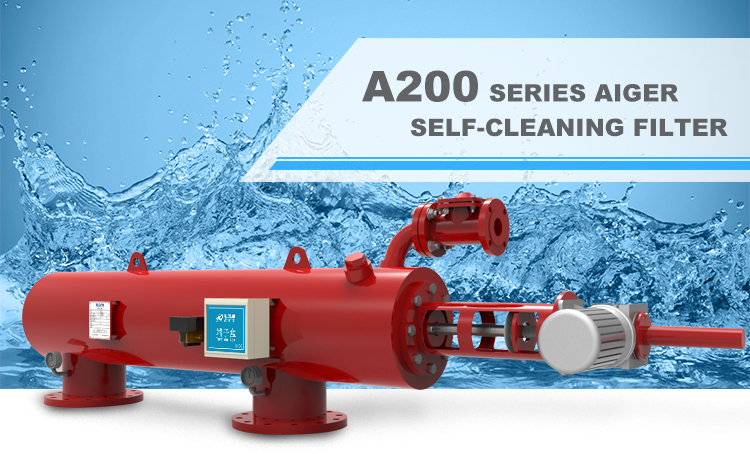

Automatic Backwash Filter for municipality water supply system

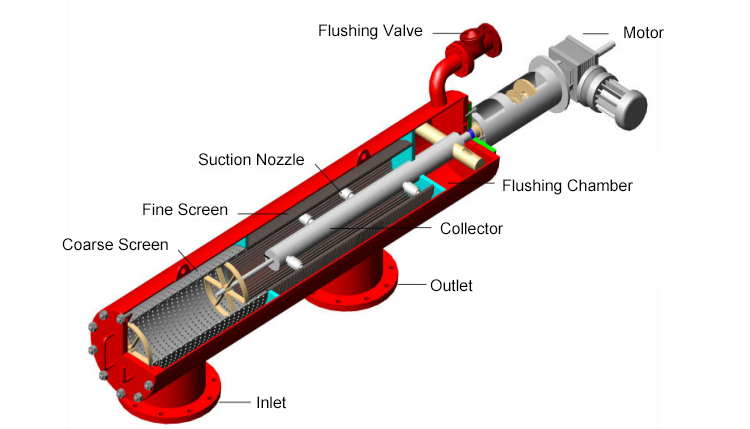

A200 series have two-stage filtration (coarse screen and fine screen). Suction nozzle type cleaning method, horizontal installation.

Operation

This automatic electric filter combines the advantages of high quality filtration from different water sources (sewage, reservoirs, rivers, lakes, etc.) with self-cleaning feature, offering the customer a continuous water supply.

The filters are designed for use in wide range of Industrial, municipal and irrigation applications.
Cleaning of the screen is performed once the pressure loss (ΔP) across the filter has reached the preset value [up to 0.5 bar (7psi)].

The filter is equipped with a coarse screen that protects the finer screen from stones and larger particles.

The flushing valve opens and pressure in the flushing chamber and the dirt collector is significantly lowered resulting in a suction process via the suction nozzles to the dirt collector and from there through the flushing valve outside. The electric motor simultaneously rotates the dirt collector and moves it along its axis. The combination of the vertical movement and rotation guarantees that the suction nozzles will cover the entire internal screen surface, efficiently cleaning the screen. The whole process takes 12-18 seconds.
During the whole process water supply is uninterrupted.

Technical Parameter

Filter flow	80-1500m³/h
Max. recommended working pressure	10bar/16bar/25bar
Min. operating working pressure during backwash	2.5bar
Water temperature range	0 ~ 65 °C
Available filtration	From 50micron
Pressure loss	< 0.1bar
Connections	Flange
Backwash time	12~18 sec
Water consumption during backwash	1%-3% of filtered water
Control model	DP /PLC Timing /Manual
Cleaning way	Suction nozzle
Drive way	Motor drive
Fine screen	Stainless steel 304 mesh, supported by a PVC cylinder
Coarse screen	PVC
Filter housing material of construction	Carbon steel ST37-2/SS304/SS316
Sewage way	Fully automatic
Installation	Horizontal
Rated operating voltage	3-ph, 380v, 220v, 50Hz

Product Parameter

Our company can manufacture the filter according to the user's requirements of size,material (eg.carbon steel, stainless steel), color and other special requirements.

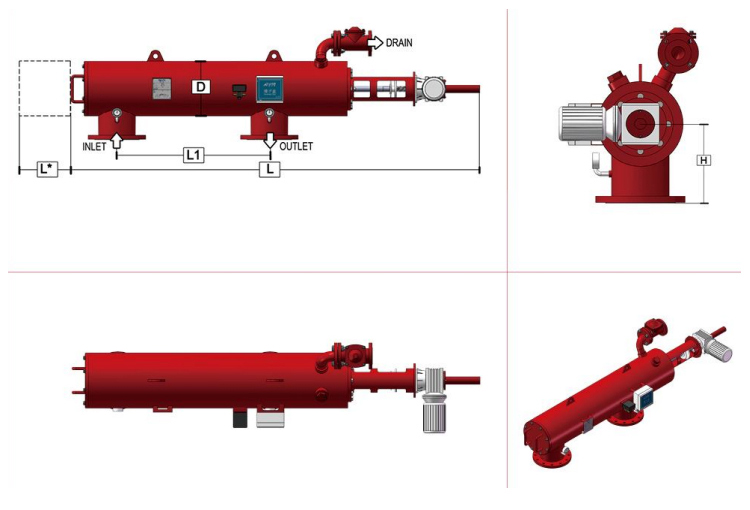

Model	DN	Flow	Filtration Area	Weight	Dimensions
					D	H	L	L1	L*
	inch	mm	m³/h	cm²	Kg	mm
A204	4	100	80	4900	145	273	245	2260	900	1400
A206	6	150	150	4900	180	325	275	2330	900	1400
A208	8	200	300	4900	200	325	275	2530	900	1400
A210	10	250	400	6670	320	426	333	2710	1100	1600
A212	12	300	600	10050	400	426	335	3460	1100	2350
A214	14	350	900	11550	480	480	367	3460	1270	2350
A216	16	400	1100	11550	560	530	400	3600	1270	2500
A218	18	450	1500	11550	745	610	440	3600	1270	2500

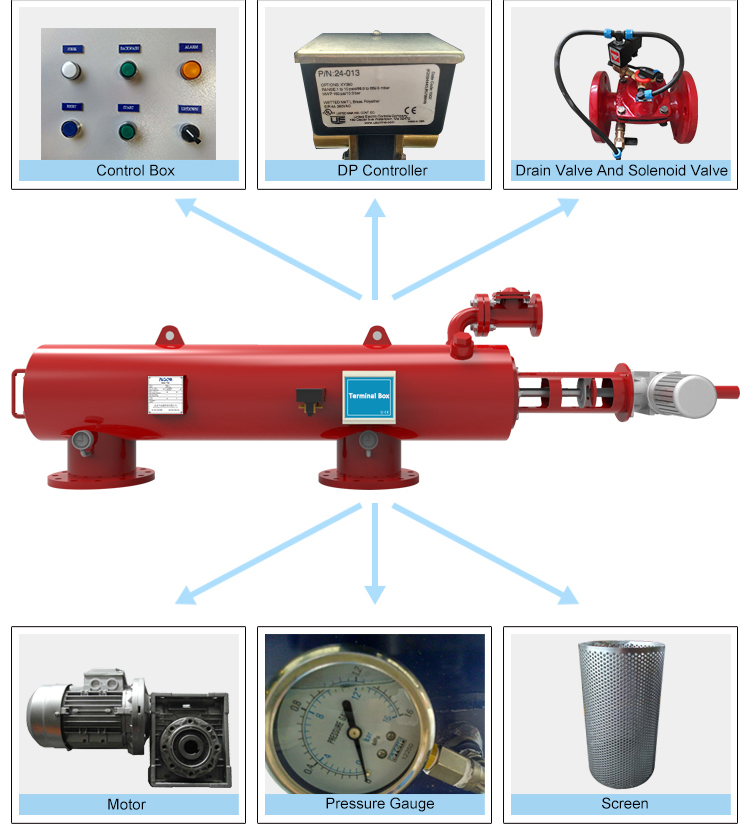

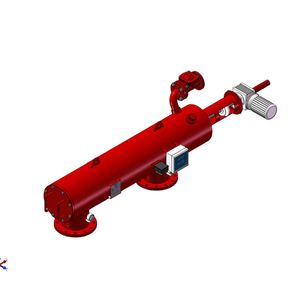

Product Details

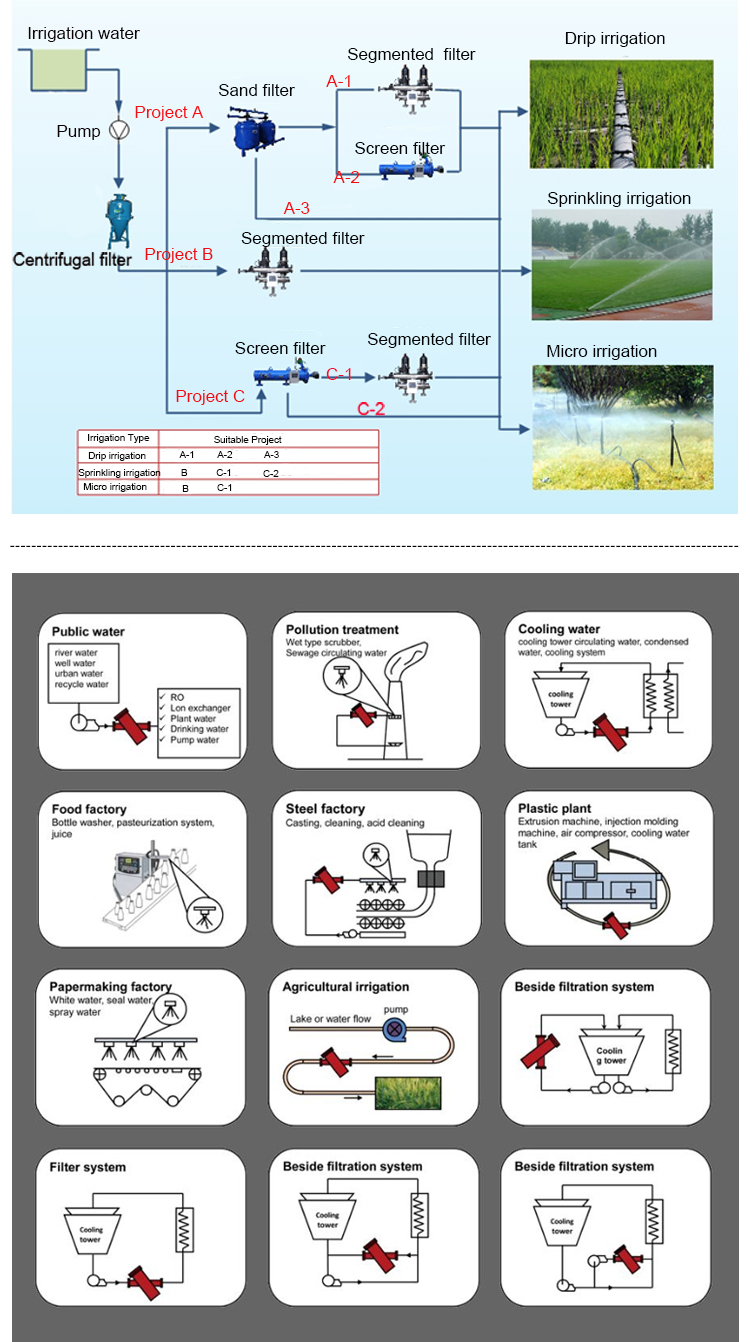

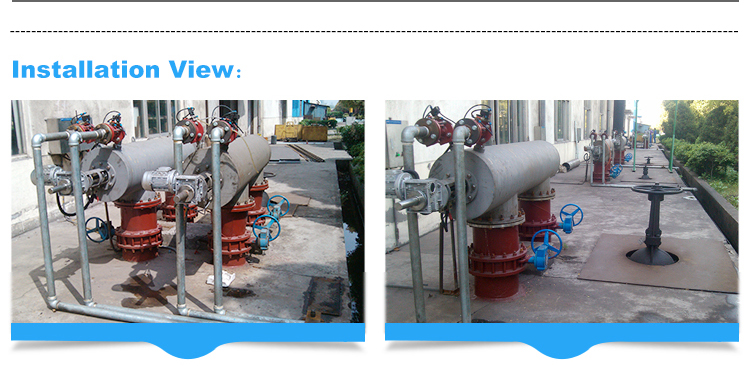

Application Area

AIGER Self-Cleaning Filter is widely used in agricultural irrigation, municipal project, power industry, paper making, coal, metallurgy and other industries.
