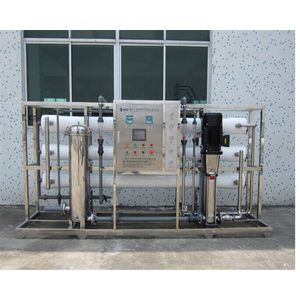

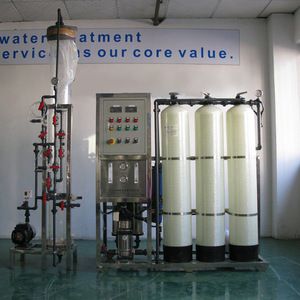

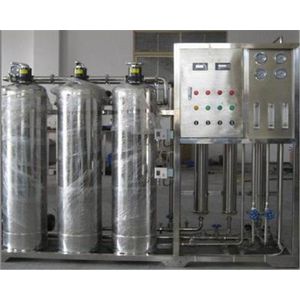

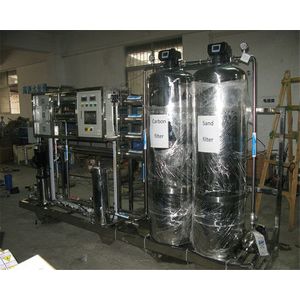

Factory supply RO water filter system
1.Summarize:
RO water filter is to produce high quality drinking water for drinking or beverage factory, which include sand filter, carbon filter, softener, micron filter and RO system.
1. Raw water pump-- provide the pressure to sand/carbon filter
2. Sand filter-- get rid of turbidity, suspended matter, organic matter, colloid and so on
3. Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on
4.Softener ---Hard water is softened by removing the calcium magnesium it contains.
5. Micron filter--prevent any deposition of large Particles, some bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump-- Provide the high pressure to RO membrane, at least 2.0 MPA

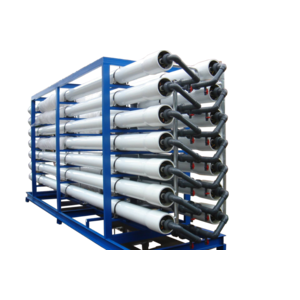

7. RO system--RO system is the heart part of pure water plant. The RO systems are capable of removing over 99% of ions, bacteria, particles and 98% of organics and silica, 85 % of B. simply operation and life span.

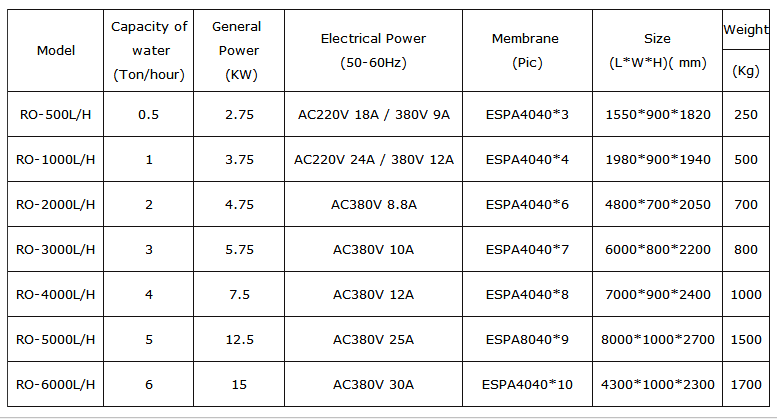

2.Water filter parameter:
3. Water filter system process flow :
Source tank →Feed water pump→ muti-media filter(sands filter)→ active carbon filter→ water softener(or inhibitor dosing)→Cartridge/Security/Micro filter→high-pressure/Centrifugal pump→ Reverse Osmosis system→ RO purified tank →ultraviolet sterilizer.
The treated water can reach WHO standard or also can used in industry process water(Eg: Cleaning, electroplate, surface preparation.

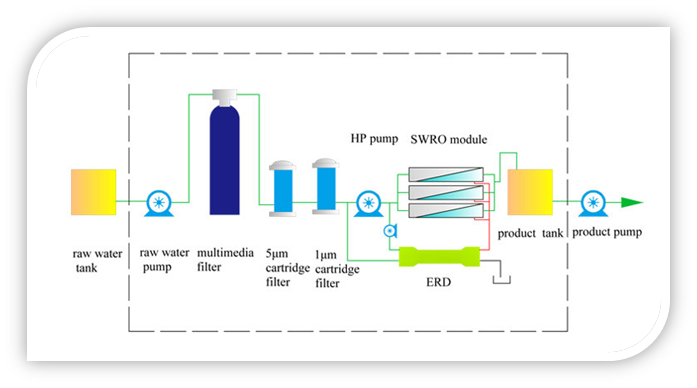

4.RO water filter system process chart:
1.Track the order until you get the goods.
2.We value every inquiry sent to us, ensure quick competitive offer.
3.Update you latest price any time.
4. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
5. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
6.Consultant services for whole machine life, 24 hours technical support by email;
