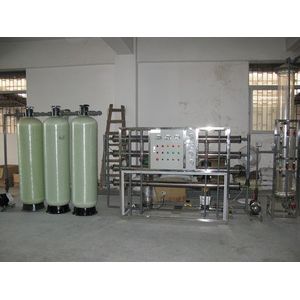

Ion exchange machine,Ion exchange system,Ion exchange equipment
1.Ion exchange detail specification
It adopts current advanced RO system , the output water no particle, tasteless.
This system adopts American HYDE company ESPA-8040,the rate of removed salt is 99%,
recovery 50%-75%. The whole system can get rid of bacterial virus , heavy metallic irons. radioactive elements ,
organic pollutant each is 99.99%,95%, 99%,95% ,the quality of water clean. Also get rid of poison harmful
material in source water , such as four chlorination carbons, benzenes, hydrocarbon, agrochemical, and lead,
mercury ,chrome ...etc other radioactive element all Be tested a limit the following.
2. Equipment:
1, desalt rate ≥99
2, capacity: 500-50000LPH
3, material: 304 S.S
4, Conductivity≤20
2.Ion exchange equipment working process
Source tank →Feed water pump → multi-media filter(sands filter) → active carbon filter → water softener(or inhibitor dosing)→PP filter→ high-pressure pump →RO system→PH adjust system →RO tank →EDI booster pump →UV sterilization →PP filter→ EDI system →EDI tank → transfer pump → outlet water.
The treated water usually used in industry (Eg: medical or other purpose ( Output water conductivity 0.1us/cm)
( Output water resistivity 10Ωm/cm -1510Ωm/cm)
The treated water can reach WHO standard or also can used in industry process water(Eg: Cleaning, electroplate, surface preparation.
Our Technical team waiting for you to inform us the below information so that we can do the right proposal for you.
1.Where is the feed water extract from. Make water analysis report?(eg. Underground water, river water. The total dissolved solid, Fe, Mg, Hardness etc whether over proof.
2.After treated, How much liter outlet flow rate per hour you required?(Or how much m3/hr with 10 hour or 20 hour) Because our plants be designed as per hours outlet.
3.After treatment, what I the water quality requirements or standard?
Ion exchange machine,Ion exchange system,Ion exchange equipment
have three grade, Which one is your requried?
1st Grade: Conductivity 0.1us/cm
2nd Grade: Conductivity 1us/cm
3nd Grade: Conductivity 10us/cm
We will be appreciated if get your response.
3.Ion exchange system process introduction.(It based on the source water quality)
| NOS. | Items | Information |
| 1. Ion exchange equipment Pre-treatment part | ||
| 1.1 | Sand filter | Remove turbidity, SS matter, organic matter, colloid, etc. |
| 1.2 | Active carbon filter | Remove color, free chloride, organic matter, |
| harmful matter, etc. | ||
| 1.3 | Water softener | Soft water and reduce it's hardness. |
| 2. RO part | ||
| 2.1 | High pressure pump | Provide power for RO. |
| 2.2 | PP filter | Prevent large particles, iron, dust, SS matter, |
| impurity into RO membrane. | ||
| 2.3 | RO membrane | Remves: lead, cooper, barium, chromium, mercury, |
| sodium, cadmium, fluoride, nitrite, nitrate, and selenium. | ||
| 3. EDI system part | ||
| 3.1 | PP filter | Further removes ions in water. |
| 3.2 | Booster pump | Provide power for ion exchange system. |
| 3.3 | EDI mode | Further removes ions in water. Use Siemens/Canpure. |
| 4. Electricity control system | ||
| 4.1 | PLC+Touch screen control system | Japan Mitsubishi. siemens |
| 4.2 | Electrivity components | Import from German. Schneider, Omron. |
| 4.3 | Pipe and fitting | Adopt domestic famous brands. |
Or add whatsapp:+86 135 4477 4483(Sunny)
4.Ion exchange column process chart:
Why choose Ion exchange machine,Ion exchange system,Ion exchange equipment ?
Why you can rely on our reverse osmosis drinking water system?
-Fully compliance with all the latest international standards
-Patented Products & Great Quality.
-Welder and process engineers teams with professional certification.
-With 10 years professional experience on designs, production and service in domestic and foreign markets.
-Products with ISO9001 & SGS certification.
-As a member of Alibaba for 6 years, with Trade Assurance Service by a good credit of $110,000.
-OEM & ODM Service available and 7*24 full time service by We-chat, WhatsAPP, and emails etc.
-What we provide not only the good products, but also our whole team, the quality, experience, and service.
Any interest please contact me to send you our latest product catalog for your reference.
