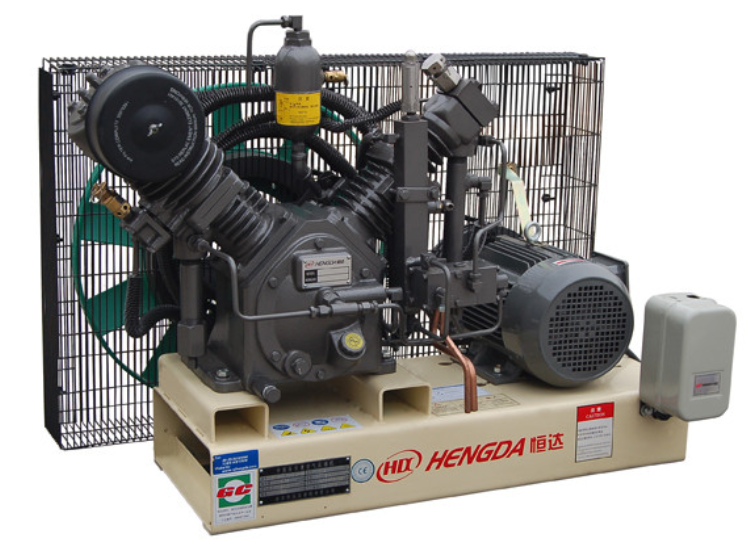

50 150 200 250 300 400 bar 1.5 ton high pressure mini air compressor
1. High efficiency, energy saving, environmental protection
Far ahead than the minimal power, high efficiency exhaust, industry
Low fuel consumption, almost no compressed air oil, greatly reducing pressure treatment system
2. Efficient valve assembly
All stainless steel body, plus imports valves, the airflow smoother,
Efficient stainless steel combination valve easier maintenance
3. The overall crankcase
Overloaded heavy cast iron crankcase overall higher stiffness,
With a longer stroke and a low number of revolutions of the piston,
The machine runs more smoothly and truly meet the 24-hour operation
4. High-quality imported bearings
High-load, high-precision cylindrical roller bearings imported,
Carrying Capacity increased by 3 to 5 times more than ordinary bearings
5. compact large intercooler and aftercooler
Clean and efficient and maintenance-free, air-cooled finned tube extrusion,
Better reduce exhaust temperature, compact machine design, more user-friendly maintenance
50 bar 150 bar 200 bar 250 bar 300 400 bar bar 1.5 ton high pressure mini air compressor | ||||
High pressure air compressor | ||||
Model | Host Model | Air capacity (Nm3/min) | Working pressure(Mpa) | Power(KW) |
38VH-0.3/45 | H0421 | 4.5 | 0.3 | 5.5 |
38VH-0.5/45 | 4.5 | 0.5 | 7.5 | |
56VH-0.18/70 | H0221A | 7.0 | 0.18 | 4 |
34WH-1.0/55 | H1031 | 5.5 | 1.0 | 15 |
34WH-0.65/60 | 6.0 | 0.65 | 11 | |
34WH-0.9/70 | 7.0 | 0.9 | 15 | |
54SH-1.6/60 | HH2041 | 6.0 | 1.6 | 22 |
51SH-2.0/80 | HH2541 | 8.0 | 2.0 | 30 |
39WH-1.0/80 | HH1031 | 8.0 | 1.0 | 15 |
39WH-0.94/98 | 9.8 | 0.94 | 15 | |
39WH-0.93/105 | 10.5 | 0.93 | 15 | |
21VH-0.15/210 | H0221A | 21.0 | 0.15 | 4 |
20WH-0.50/245 | 20T4 | 24.5 | 0.5 | 11 |
20WH-0.61/245 | 24.5 | 0.61 | 15 | |
20WH-0.49/345 | H20T4 | 34.5 | 0.49 | 11 |
20WH-0.59/345 | 34.5 | 0.59 | 15 | |
20WH-0.54/420 | H20T6 | 42.0 | 0.54 | 15 |

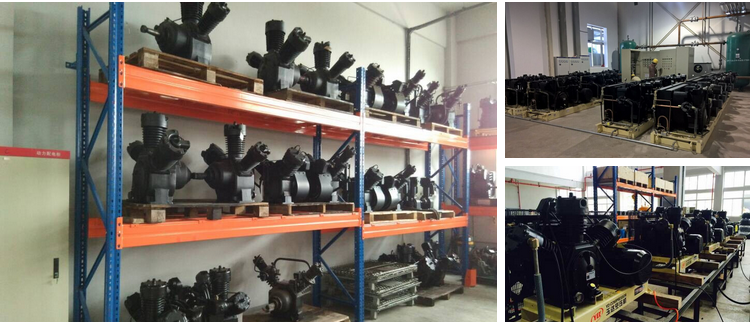

Our Factory
Our company
Hengda air compressors are widely use in most chinese manufacturing industries. With perpetual research and development,we in hengda has maintained superior product quality and hence provide highly reliable machine operating performance.
In the pet blow moulding industry, Hengda is the main provider of high quality high pressure air compressors. Having been supplying high pressure compressors to the pet industry for a number of years,we are very familiar with the stringent requirement of the quality of the air requirement.
Being provided with clean and oil-free compressed air is very important. The high pressure air compressors,filters,dryers and control system are specially designed to meet your strict requirement in order to produce high quality pet products.
For international market,we have qualified and well experienced engineers basing in Singapore who provide designing,commissioning and service. all these engineers could give prompt and direct service in your country by the developed airport transportation without andy visa restriction.
30-40bar air compressor
Work pressure:30-40bar
Air capacity:0.7-6M3/Min
High pressure air compressor
Work pressure:45-200bar
Air capacity:0.3-6M3/Minoil-free air compressor
Work pressure:30-40bar
Air capacity:1.0-2.2M3/Min
Screw air compressor
Work pressure:7-13bar
Air capacity:0.8-40M3/Min
Booster air compressor
7-13bar air pressure can be
pressurized up to 60-400bar
low pressure air compressor
Work pressure:8-17bar
Air capacity:0.2-6M3/Min
