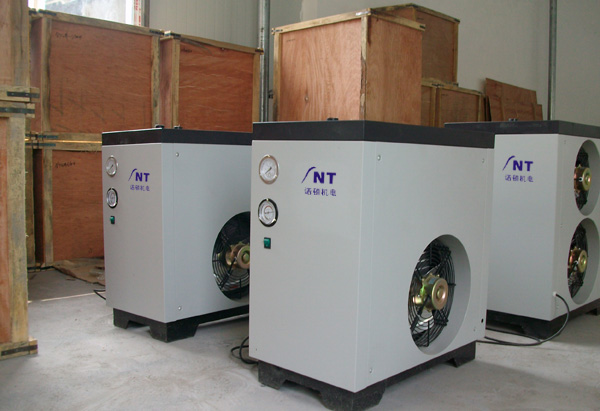

refrigeration dryer for compressor

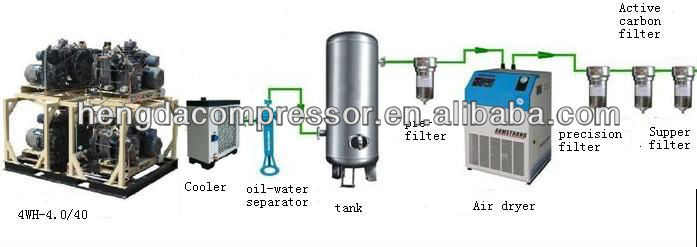

Air dryer, air filter, oil-water separator, post cooler is used for air compressor to reach clean air.
Just tell us the air capacity and working pressure, we can choose suitable model for customers.
1.Description:
(1).Thecompressors in this series arewidely used in PET bottle blowing.
(2).The compressor delivers outstanding quality under all weather conditions.
(3).A automatic unload system ensures that the system starts safely without residual pressure.This feature protects both frame and motor and so extends the working life of all components.
(4).The equipment doesn't require a fundation saving plant installation costs.
2.Technical configuration:
Model | Air capacity (M3/min) | Working pressure (Bar) | Power(Kw) | Speed(r.p.m) | Weight(Kg) |
VH-0.7/30 | 0.7 | 30BAR | 7.5 | 680 | 310 |
WH-1.0/30 | 1.0 | 11 | 600 | 430 | |
WH-1.2/30 | 1.2 | 15 | 760 | 450 | |
WH-1.5/30 | 1.5 | 18.5 | 790 | 520 | |
WH-2.0/30 | 2.0 | 22 | 670 | 610 | |
WH-2.35/30 | 2.35 | 25 | 760 | 620 | |
2-WH-3.0/30 | 3.0 | 2*18.5 | 790 | 1150 | |
3-WH-3.6/30 | 3.6 | 3*15 | 700 | 1580 | |
VH-0.17/35 | 0.17 | 35BAR | 2.2 | 660 | 110 |
VH-0.65/35 | 0.65 | 9.0 | 605 | 420 | |
WH-1.1/35 | 1.1 | 15 | 900 | 475 | |
WH-2.0/35 | 2.0 | 22 | 670 | 615 | |
WH-2.2/35 | 2.2 | 25 | 735 | 600 | |
VH-0.3/40 | 0.3 | 40BAR | 5.5 | 500 | 290 |
WH-1.0/40 | 1.0 | 11 | 790 | 470 | |
49SH-2.6/40 | 2.6 | 25 | 625 | 900 | |
49SH-3.0/40 | 3.0 | 30 | 695 | 920 | |
2-49SH-6.0/40 | 6.0 | 2*30 | 695 | 2100 | |
4-WH-4.0/40 | 4.0 | 4*11 | 790 | 2400 | |
6-WH-6.0/40 | 6.0 | 6*11 | 790 | 3600 |

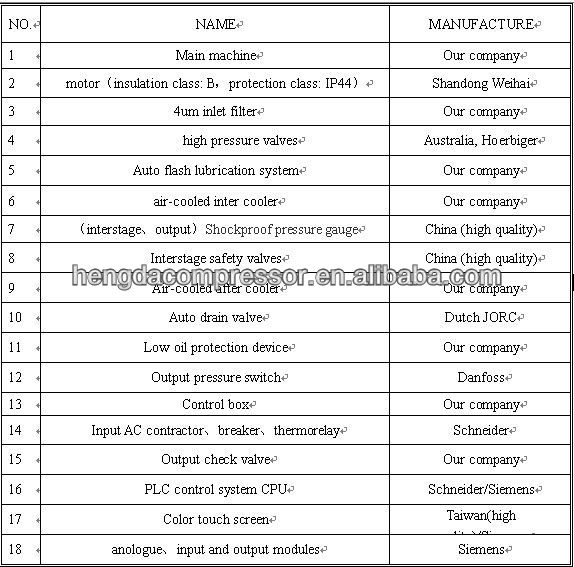

3.Main data:
item | Configuration item | Manufacturer |
1 | piston compressor main components | Nanjing Hengda |
2 | Automatic splashing lubrication system | Nanjing Hengda |
3 | Air cooled middle cooler | Nanjing Hengda |
4 | Oil damping (between stages, output) shockproof pressure gauge | Domestic high quality |
5 | Safety valves between stages | Domestic high quality |
6 | Air cooled after cooler | Nanjing Hengda |
7 | Automatic drain valve | Domestic high quality |
8 | Low oil level protection device |
German imported and installed in Hengda |
9 | Output pressure switch | Schneider |
10 | Electric control box | Nanjing Hengda |
11 | Imported ac contactor, circuit breaker, thermal relay, etc | Schneider, etc. |
12 | Output check valve | Nanjing Hengda |
13 | timer | Domestic high quality |
14 | Oil sight glass | Nanjing Hengda |
15 | Low oil level protection switch | Nanjing Hengda |
16 | PLC control system CPU | Siemens |
17 | Color touch screen | Siemens |
18 | Analog, input and output module | Siemens |
19 | motor | Siemens |

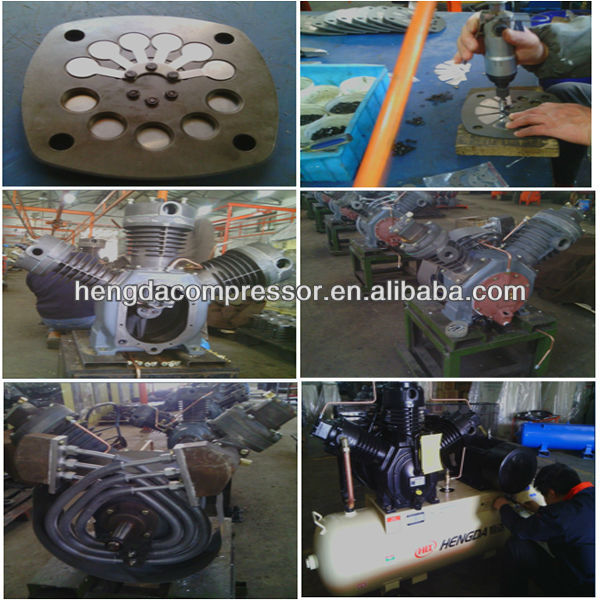

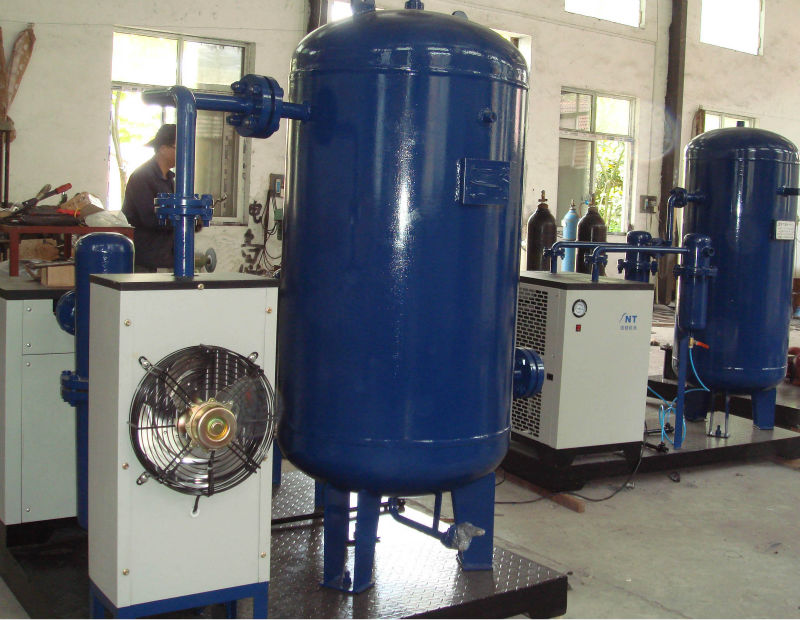

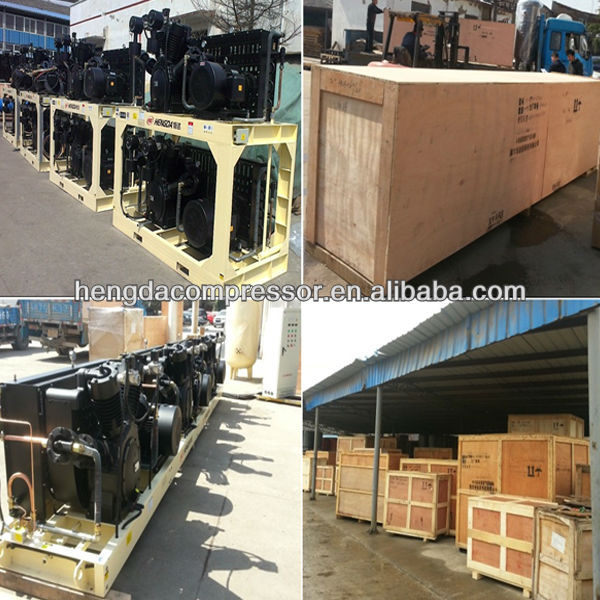

4.photo:
....
