High pressure oilfield steam injection boilers for oIl Recovery -CSS Wells

Boilers for high pressure steam flooding and injection with steam into wells to increase oil production.

Technical Feature

  • New
  • Natural Circulation
  • Industrial
  • Fire Tube
  • High Pressure
  • Horizontal
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition
New
Type
Natural Circulation
Usage
Industrial
Structure
Fire Tube
Pressure
High Pressure
Style
Horizontal
Fuel
Oil-fired
Place of Origin
Shandong, China (Mainland)
Brand Name
CNPS
Model Number
YZG11.5-21-D
Output
Steam
Dimension(L*W*H)
17*2.5*3
Weight
5~50ton
Certification
ASME
After-sales Service Provided
Overseas service center available
Product name
High pressure oilfield steam injection boilers
features
Trailer-Mounted Boiler
Standard
ASME

DETAIL DESCRIPTION

High pressure oilfield steam injection boilers for oIl Recovery -CSS  Wells



Product Name: Oil (Gas) Burning Steam Boiler

Product Explanation: Heavy oil and natural gas as fuel; Fixed boiler and integral truck-mounted mobile boiler;



Product Description



Boilers for high pressure steam flooding and injection with steam into wells to increase oil production.

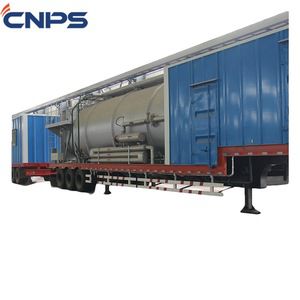

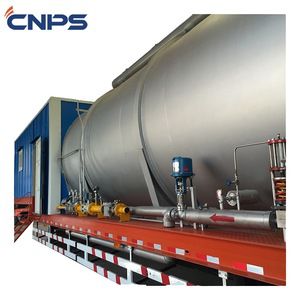

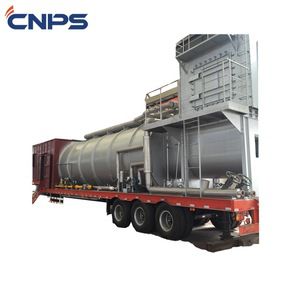

Complete system in a trailer. The boiler can inject 40 barrels of cold water converted to steam per day into an oil well to recover oil using enhanced oil recovery (EOR) methods. Capable of cyclic (Huff n Puff) or flooding with steam. We also have boilers that use produced water for the boiler feed water eliminating the use of clean water.



Features



Fixed boiler is suitable for steam injection in intensive well pattern, and the integral truck-mounted mobile boiler is suitable for steam   injection in detached well.



Automatic intelligent control.


Heavy oil and natural gas as fuel;
Fixed boiler and integral truck-mounted mobile boiler ;
 Fixed boiler is suitable for steam injection in intensive well pattern, and the integral truck-mounted mobile boiler is suitable for steam injection in detached well;
Automatic intelligent control.





Specifications




Parameters
Model
YZG11.2-21-D

YZG23-17.5-D

YZG50-17.2-D

Rated evaporative capacity
11.2t
23t
50t
Rated steam temperature
370℃
353℃
353℃
Rated operating pressure
21MPa
17.2MPa
17.2MPa
Water feed temperature
20 ℃
20 ℃
20 ℃
Steam quality
80%
80%
80%
fuel
Heavy oil,
natural gas
Heavy oil,
natural gas
Heavy oil,
natural gas
funnel temperature
230℃
215℃
170℃
