API spec 11 AX ESPCP Electric submersible direct drive hydraulic progressive screw cavity pump

PRIMARY PARAMETERS

Place of Origin

Shandong, China (Mainland)

Brand Name

High land

Model Number

QZLB460-27-138/30

Theory

Axial Flow Pump

Structure

Screw Pump

Usage

Oil recovery

Power

Electric

Standard or Nonstandard

Nonstandard

Fuel

Electric

Pressure

Low Pressure

Application

Submersible oil,oil recovery

Feature

High Efficiency

Motor

100% Copper Wire

Certificate

API spec 11 AX

DETAIL DESCRIPTION

API spec 11 AX ESPCP Electric submersible direct drive hydraulic progressive screw cavity pump

Product Description

Artificial lift technology selection is highly dependent on the conditions of the wellbore and the specific application parameters of a given well. Electrical submersible pumping (ESP) systems employing centrifugal pumps are the preferred artificial lift technology for wells with higher flow rates and deeper well depths. ESP systems are used to lift fluids for a variety of industries, including oil and gas, mining, municipal water and geothermal. Rod lift systems-the most common form of artificial lift-use sucker rods to bring fluid to the surface and are used primarily in lower flow wells.

Specifications

TYPE	Screw pump model	Motor model	Recommended speed (rpm)	Per rotation (ml)	Rated Output (m3/d)	Ratedhead
100rpm	150rpm	200rpm	m
QZLB40-42-116/11	LB40-42	QYT116-11X	150	40	5.76	8.64	11..52	1900
QZLB75-40-116/11	LB75-40	QYT116-11X	150	75	10.8	16.2	21.6	1800
QZLB120-36-116/15	LB120-36	QYT116-15X	150	120	17.28	25.92	34.56	1500
QZLB190-33-116/18	LB190-33	QYT116-18X	150	190	27.36	41.04	54.72	1450
QZLB300-33-116/18	LB300-27	QYT116-18X	150	300	43.2	64.8	86.4	1200
QZLB400-33-116/22	LB400-21	QYT116-22X	150	400	57.6	86.4	115.2	940
QZLB500-33-138/30	LB500-21	QYT138-30X	150	500	72	108	144	940
QZLB600-33-138/30	LB600-16	QYT138-30X	150	600	86.4	129.6	172.8	720

Applications

ESPCP Application Benefits:

Initial costs are lower compared to a conventional ESP system
Improved volumetric and overall pump efficiency versus an ESP
Reduces operating expenses
Eliminates mechanical wearing of tubing and rods in deviated or horizontal installations
Allows for smaller motors to drive the system
Improves reliability and optimizes motor and pump speeds
Eliminates the need for multiple oil systems and seals for the motor and gear reducer
Provides efficient gas separation in deviated or horizontal wells
Allows the maximum flow rate at the lowest pressure drop

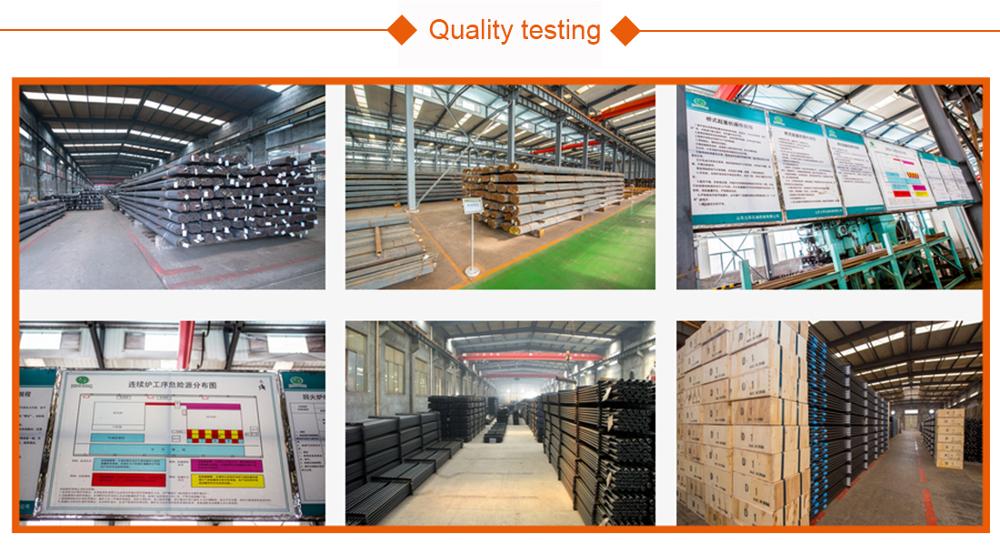

Quality Assurance

High quality and efficiency, Science and technology leading, Top level service, Customer satisfaction.

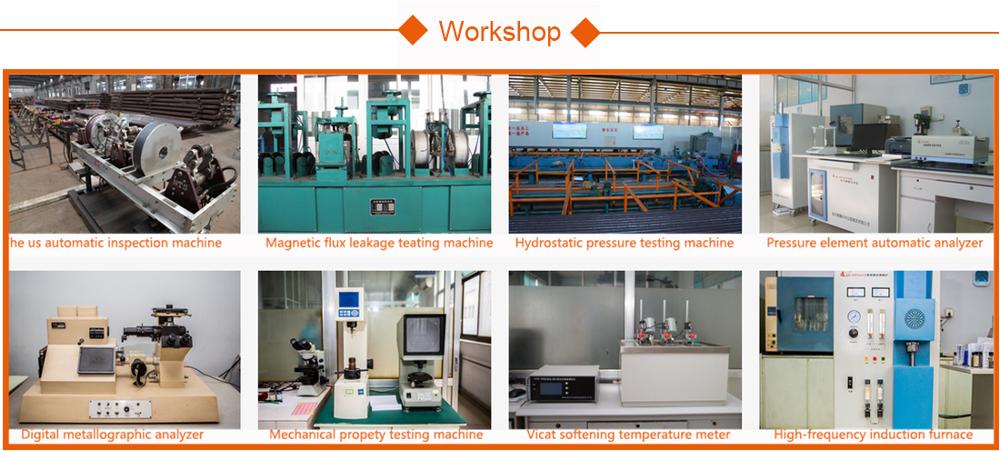

Workshop

FAQ

Q1,Could you do OEM Service?

A: Some items accept this service, pls contact us for details.

Q2: What’s your Delivery Time?
A: In generally , the delivery time is about 3-7 days for sample order. We will make the delivery asap with the guaranteed quality.

Q3:What’s the convenient way to pay?
A: Trade Assurance, L/C,T/T,Western Union and Escrow are accepted , and if you have a better idea, please feel free to share with us.

Q4:Which mode of transport would be better?
A: In general , we advice to make delivery by sea for large order, and for small order,Courier,By Air both ok,Also we respect your views of other transportation as well.

You May Like

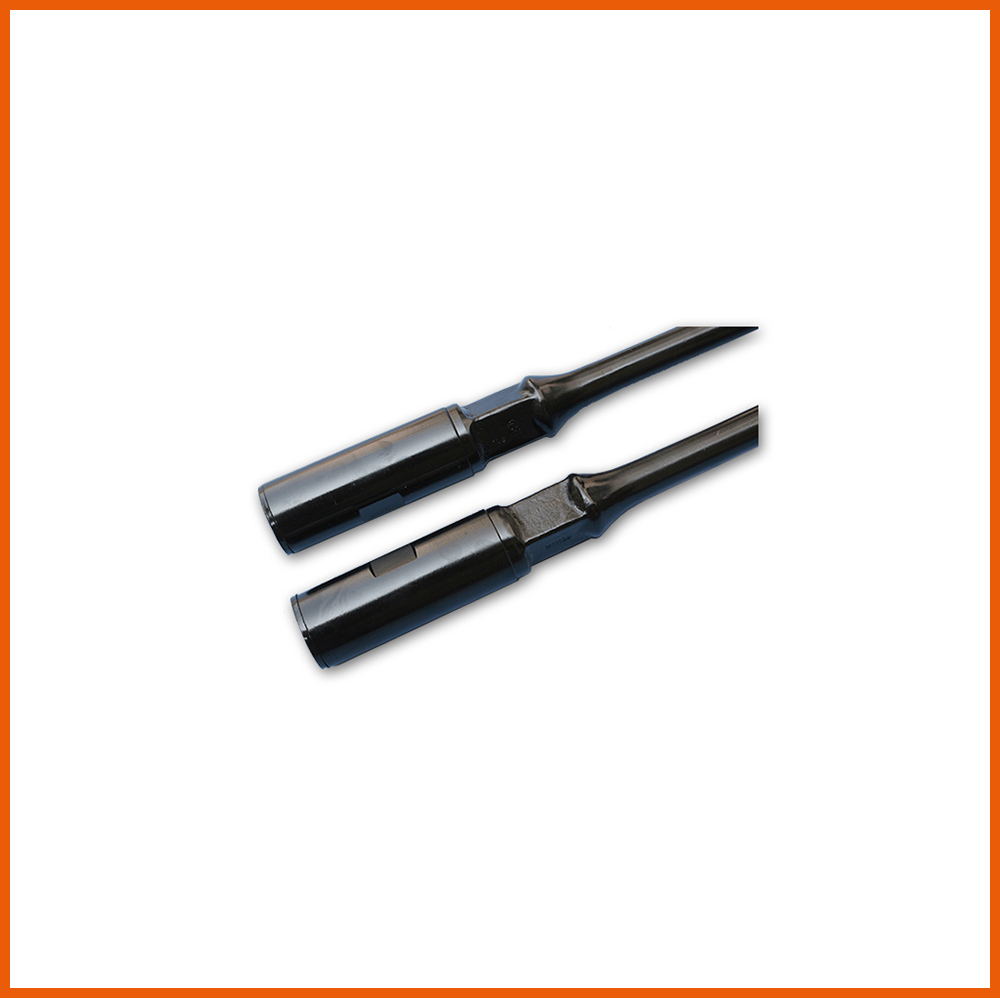

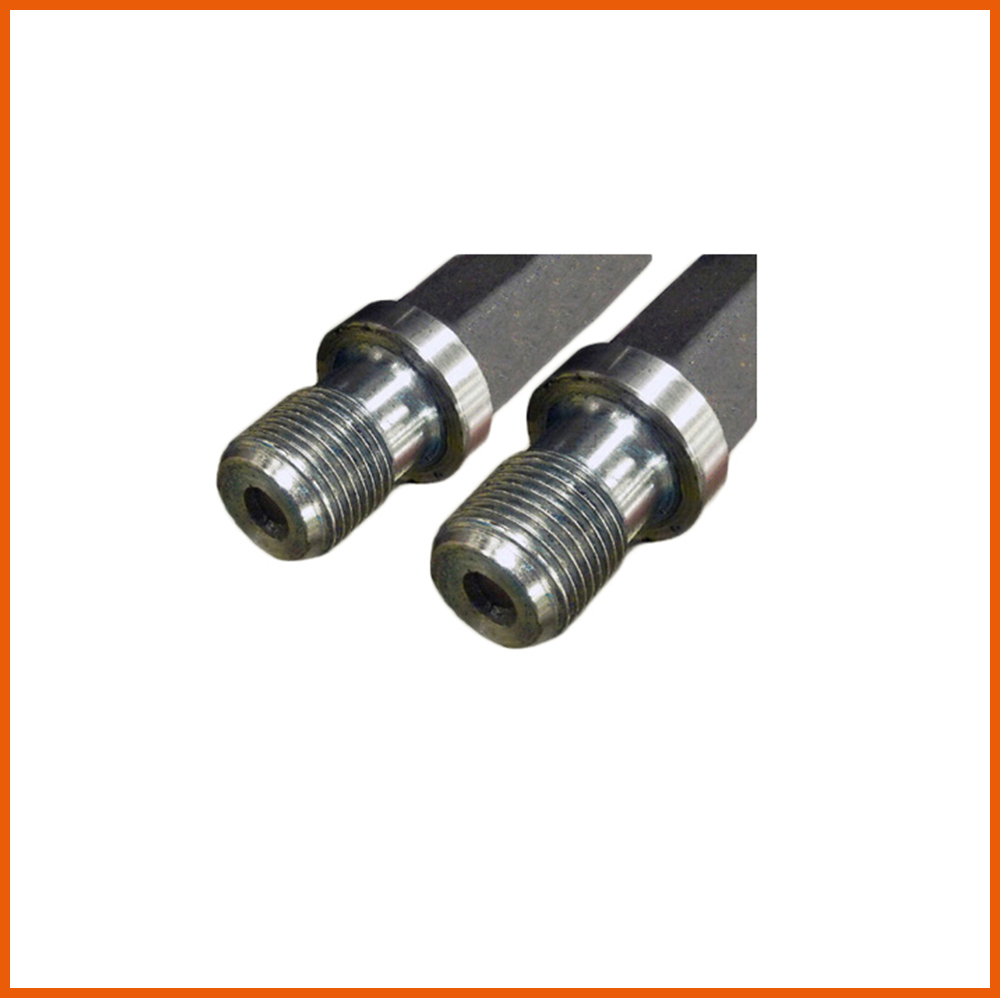

API spec 11B Hollow sucker rod for oil and gas well production	API spec 11B Hollow sucker rod for oil and gas well production	API Spec 11B pony sucker rod for oil and gas production	API Spec 11B Continuous sucker rod for oil and gas well production
