Hot 6 ton Diesel Oil Gas Fired Industrial Steam Boiler

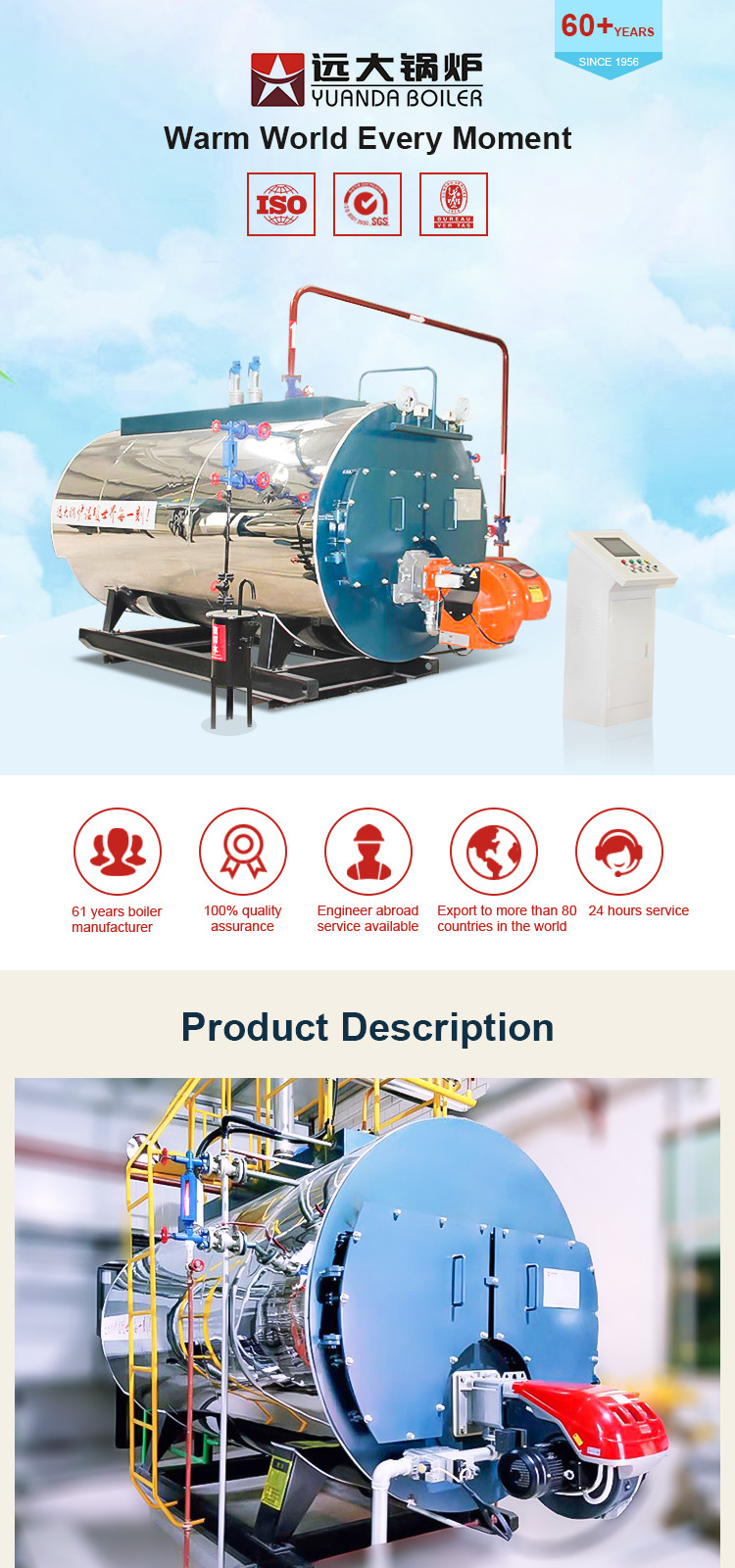

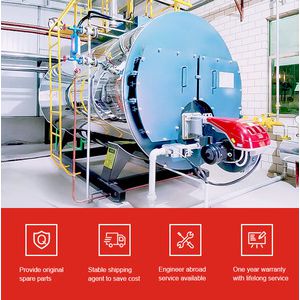

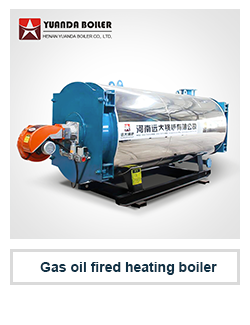

WNS series gas/oil fired steam boiler is horizontal three pass fire tube wet back full automatic steam boiler. It normally suitable for 500kg to 20ton/h capacity, use all kinds of gas and oil fuels,such as natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.

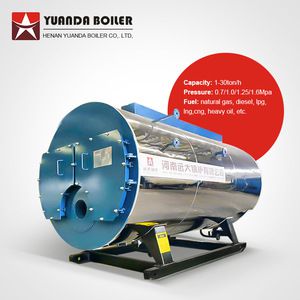

1.Model:WNS
2.Steam Capacity: 500kg/h-20ton/h
3.Design pressure:1.0Mpa(10bar), 1.25Mpa(13bar), 1.6Mpa(16bar),2.5Mpa(25bar)
4.Stem temperature:below 224 degree
5.Design fuel:natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil

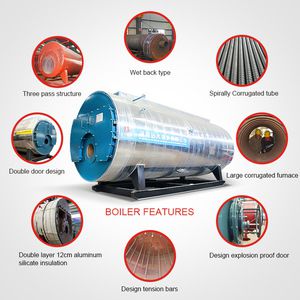

6.Structure: three pass fire tube wet back

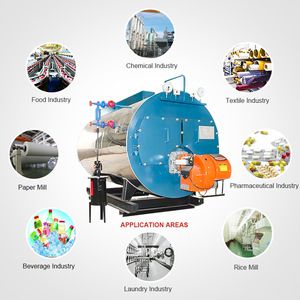

7.Application: boiler for textile mill, milk pasteurization,corrugated machine, sugar factory,pringting dyeing mill,medicine industry, food & beverage industry, chemical industry, garment industry, food processing industry, and wood processing industry, etc.
| Boiler model | Rated capacity | Rating pressure | Steam temperature | Fuel consumption | Weight | Dimension | |||
| Diesel oil | Heavy oil | Natural Gas | Lpg | ||||||
t/h | MPa | ℃ | Kg/h | Kg/h | m³/h | m³/h | Ton | mm | |
| WNS1-1.0-Y(Q) | 1 | 1 | 184 | 65.5 | 132.2 | 165 | 57.3 | 4.3 | 3561×1690×1910 |
| WNS2-1.25- Y(Q) | 2 | 1.25 | 194 | 129.6 | 132.2 | 162 | 57.3 | 7.2 | 4111×1950×2199 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 194 | 192 | 195 | 250 | 82 | 8 | 4330×2248×2564 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 194 | 256 | 261.9 | 323.6 | 109 | 9.6 | 4732×2150×2448 |
| WNS5-1.25- Y(Q) | 5 | 1.25 | 194 | 318 | 322 | 386 | 140 | 12.5 | 5970×2360×2796 |
| WNS6-1.25- Y(Q) | 6 | 1.25 | 194 | 380 | 390.6 | 450 | 164 | 16.5 | 5500×2600×2990 |
| WNS8-1.25- Y(Q) | 8 | 1.25 | 194 | 503 | 517 | 642 | 209 | 24.8 | 6450×2800×3200 |
| WNS10-1.25- Y(Q) | 10 | 1.25 | 194 | 628 | 643 | 805 | 264 | 26.8 | 6800×2900×3394 |
| WNS15-1.25- Y(Q) | 15 | 1.25 | 194 | 940 | 965 | 1182 | 400 | 38 | 7150×3200×3540 |
| WNS20-1.25- Y(Q) | 20 | 1.25 | 194 | 1250 | 1301 | 1597 | 520 | 55 | 8200×3400×3826 |
