design manufacture workshop warehouse steel structure building with CE Certification

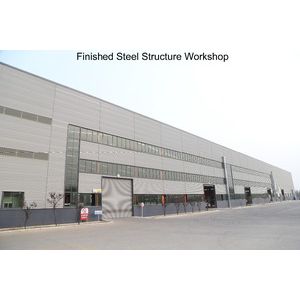

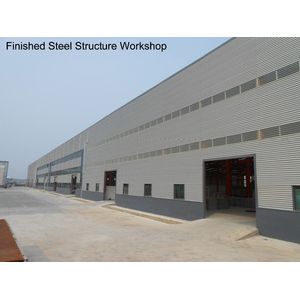

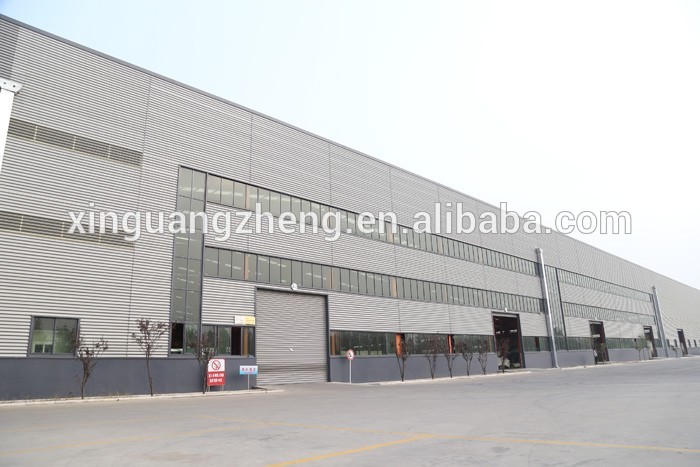

The steel structure building adopts portal frame structure, and has Eight Spans, Area: 28800 square meters. Length: 190m, Width: 152m, Height: 12m(Eave Height) ~ 15m(Ridge Height)
Characteristics
1. Enviromental friendly
2. Lower cost and maintenance
3. Long using time up to 50 years
4. Stable and earthquake resistance up to 9 grade
5. Fast construction, time saving and labor saving
6. Good appearance
Used:
The steel workshop warehouse building is widely used for workshop plant, warehouse, office building, steel shed, aircraft hangar etc.
Technical Parameters
Item Name | design manufacture steel structures for workshop warehouse hangar building |
Steel column and beam | Q345B, welded H section steel with two coats of red lead paint |
Cran beam | Q345B, welded H section steel with two coats of red lead paint |
Purlin | Q235, galvanizd C section steel with two coats of red lead paint |
Roof Cladding | V-760 0.5mm dip aluminum-zinc steel sheet + Glasswool Blanket with Aluminum-foil paper+ Wire Mesh |
Skylight sheet | V-760, 1.2mm / V-900, 1.0mm / V-780, 1.2mm |
Exterior wall sheet | V-780, 0.5mm dip aluminum-zinc steel sheet |
Window | Aluminum alloy window |
Door | EPS sandwich panel sliding door |
Service | Design, Fabrication and Installation |
We can make quotation according to customer's drawing or requirement; (size by length/width/height and wind speed), offering a free design drawing and all detailed drawings for installation. | |
Design software: Auto CAD,PKPM,MTS,3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc | |
Packing | According to customer's requirement |
Load into 40/20GP,40HQ or 40OT |

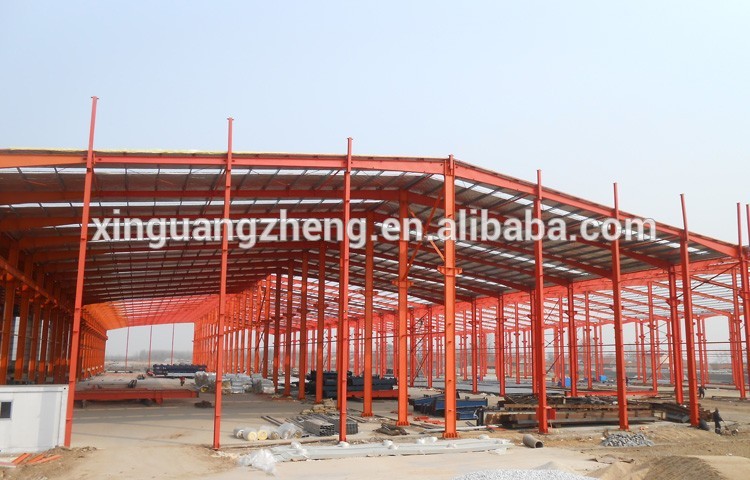

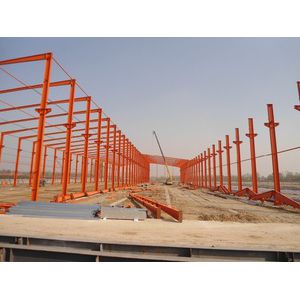

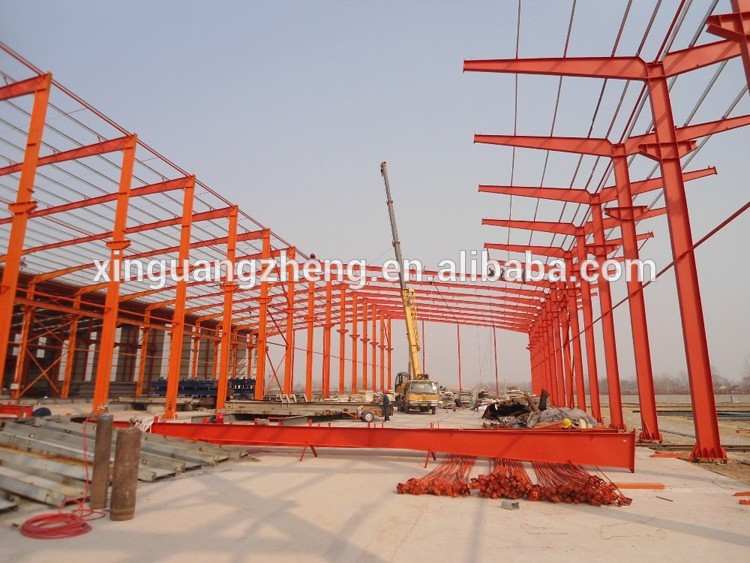

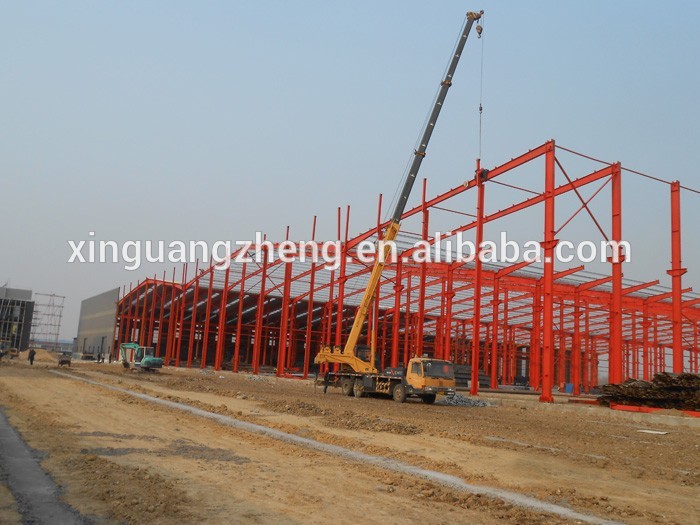

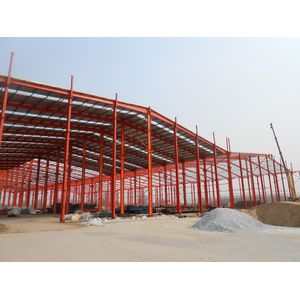

Main steel structure frame:

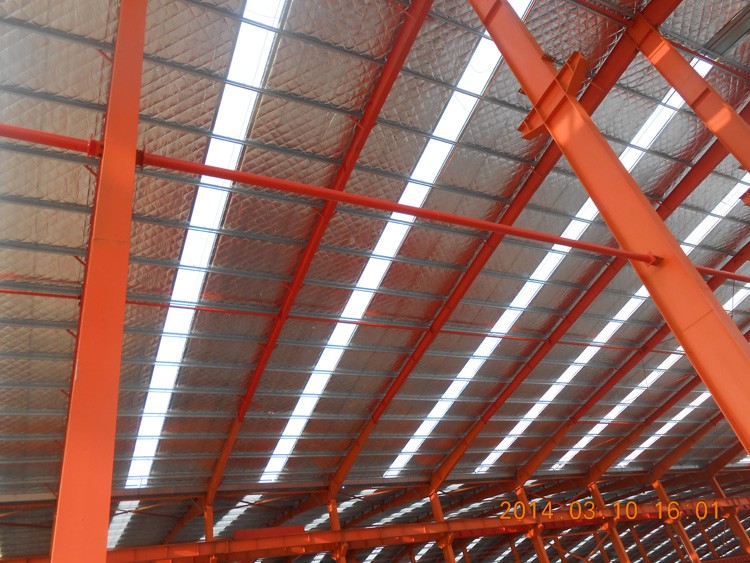

Roof Cladding System:

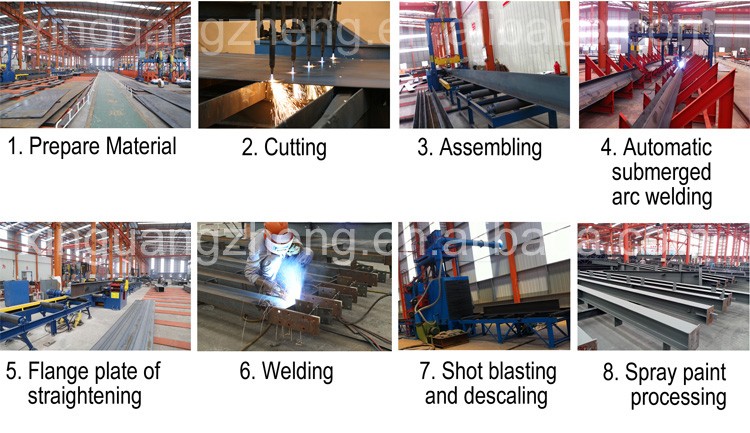

Steel Structure Workshop Warehouse Building Manufacturing Progress:
Column and Beam

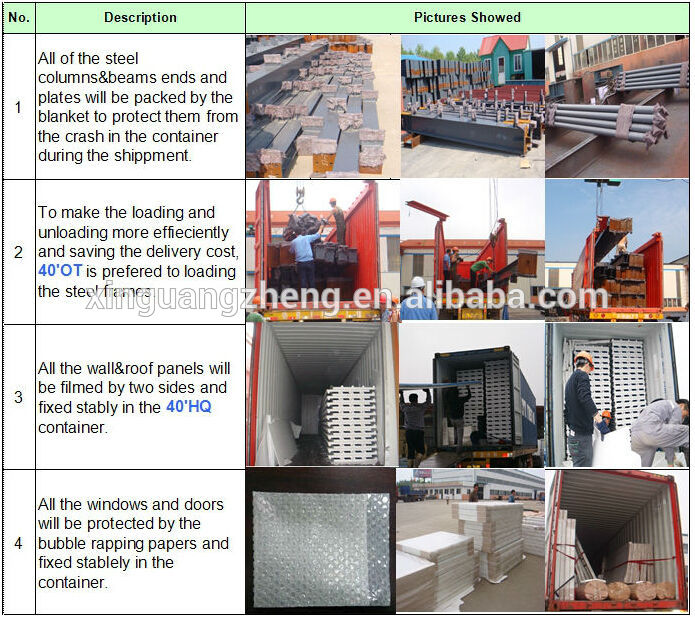

Steel Structure Workshop Warehouse Packing & Shipping

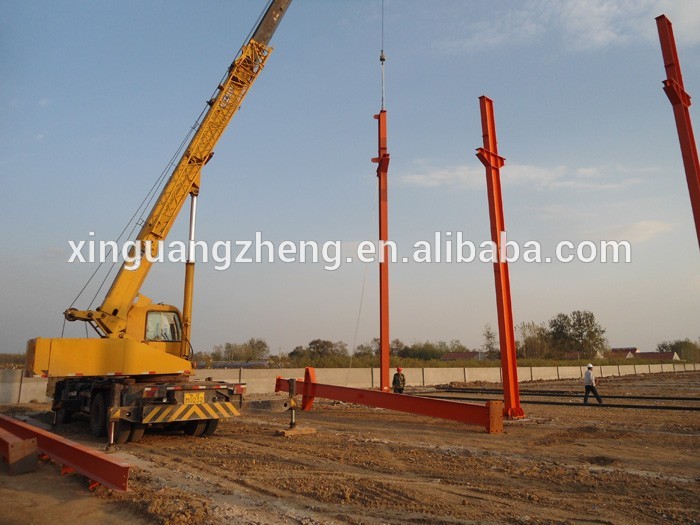

Our skillful engineering installation and site operation teams
Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.
1 Location (where will be built? ) _____country, area
2 Size: Length*width*height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height)
_____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
Qingdao Xinguangzheng Steel Structure Company design, supply & install steel structure buildings(steel structure workshop, steel structure warehouse buildings, steel structure hangar)
19-year experiences
90+ countries exported: Ethiopia, Tanzania, Nigeria, South Africa, Algeria, Dubai, Saudi Arabia, Thiland, Australia, France, Germany etc. around the world.
Overseas and Domestic Steel Structure Project Case
ISO, CE, BV certificates
1. What kind of company you are?
We are steel structure building Manufacturer located in Qingdao China, We were gaining good reputation among our customers for our professional, warm and thoughtful service. Because we know that a long terms business based on the quality control, price, packing, delivery time etc.
2. Does your company is a factory or trade company?

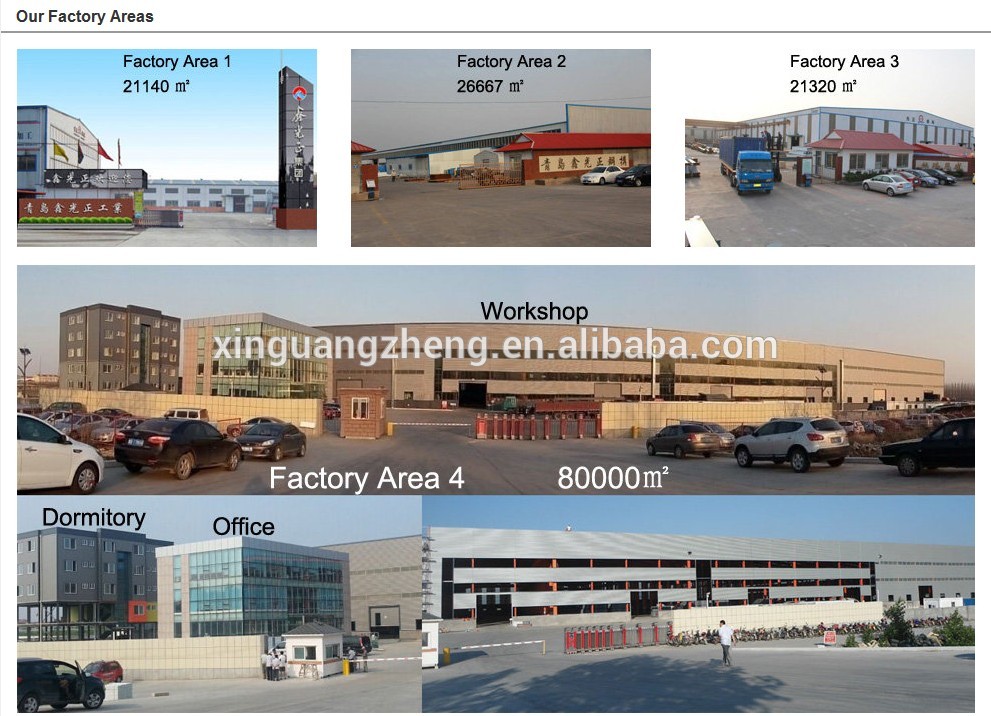

We are factory, so you will enjoy the best price and competitive price. Our factory covers an area of 150,000 square meters.
3. Whats the quality assurance you provided and how do you control quality ?
Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc.
4. Can you offer designing service?
Yes, we have more than 100 design engineers. We could design full solution drawings as per your requirments. They use software: Auto CAD,PKPM, MTS, 3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc.
5. Do you offer guiding installation on site overseas?
Yes, we can provide the service of installation, supervision and training by extra. We can send our professional technical engineer to surpervise installation on site overseas. Besides, We also have our own abroad guiding installation team consisting of more than 30 people.
They have succeeded in many countries, such as Iraq, Dubai, South Africa, Algerial, Ghana, Gabon, Tajikistan, Burkina Faso, Panama, Australia.
Our excellent design team will design the steel structure building for you. We can quote If you give the following information.
1. Location (where will be built? ) _____country, area
2. Size: Length*width*height _____mm*_____mm*_____mm
3. Live load on roof(KN/M2), live load on second floor(KN/M2) if have
3. Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4. Snow load (max. Snow height) _____kn/m2, _____mm
5. Anti-earthquake _____level
6. Brickwall needed or not If yes, 1.2m high or 1.5m high
7. Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels, Corrugated steel sheet with fiber glass wool will be suggested; If not, the Corrugated steel sheet will be ok. The cost of the latter will be much lower than that of the former.
8. Door quantity & size _____units, _____(width)mm*_____(height)mm
9. Window quanity & size _____units, _____(width)mm*_____(height)mm
10. Crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
11. Skylight belt, ventilator and any other accessories if needed.
