Product Application
Solid:candy,peaunt,green bean,pistachio,brown sugar,cake,daily commodities,cooked food,pickles,puffed food etc.
Granule:grain,granular drug,capsule,seed,condiment,granulated sugar,Chicken essence,melon seeds,nuts etc.
| SPECIFICATIONS FOR Solid & Granule Packaging Production Line | |||
| High Speed Roary Packing Machine | Bags size | W:80-210mm | L:100-300mm |
| Filling Volume | g | 10-1500(Depending on type of products) | |
| Capacity | 30-60bags/min(the speed depends on type of products) | 25-45bags/min(for zipper bag) | |
| Package Accuracy | Error | ≤±1 | |
| Total power | 5KW | 220V/380V,3PH,50HZ | |
| Demension | L*W*H | 1710*2500*1640mm | |
| Weight | KGS | 2275 | |
| Compress air requirement | m³/min（supply by user） | ≥0.8 | |
| Pouch Type | All type of heat sealable preformed side seal bags, | block bottom bags,zip-lock recloseable bags,stand-up pouch with or without spout etc. |
Main Features

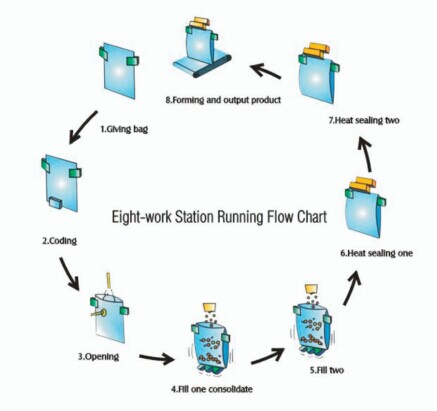

1.Full automatic 8-station intermittent rotary performed bags dispensing,opening

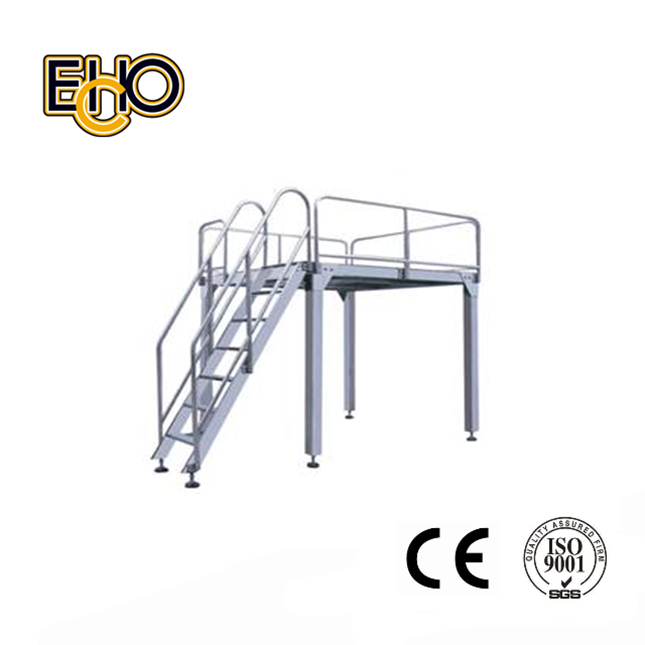

and closing machine combined with automatic combination weigh scale filler, overhead
work platform and Z-elevator bulk feeder.
2.Safety guard protected for high speed and consistent production.
3.Heavy duty components and parts are selected for machine durability.
4.Hygienic construction and easy cleaning. Operators' friendly design touch-screen control system.
5.Versatile in design,easy to link up with other down stream packaging equipment,such as liquid filler
powder filler, multiheads weigher,metal detector,check weighter,case sealer etc.
6.Innovative and practical solution at reasonable costs.
7.Dust control and extractor system on special request.
8.The product contact parts are adopted 304 stainless steel.

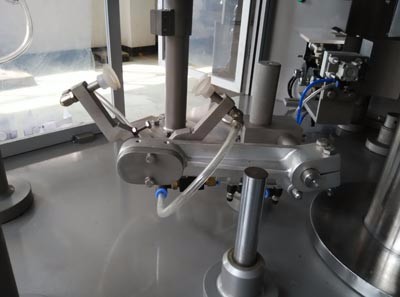

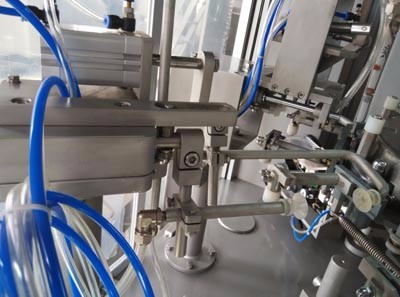

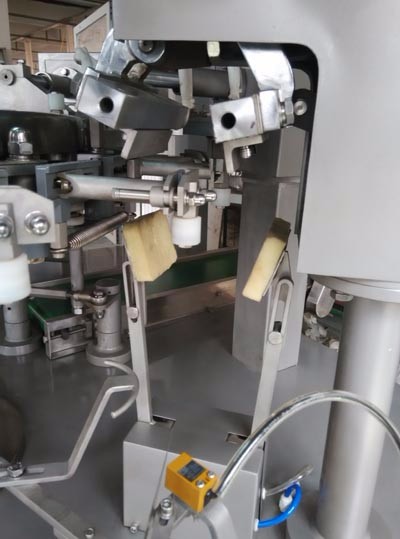

Machine Parts

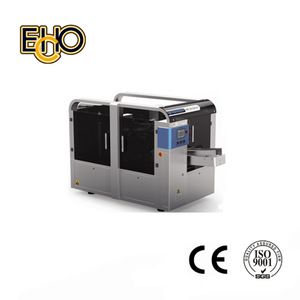

Name:MR8-200RW
Brand:ECHO
Weight:1480KGS
Demension:1710*1505*1640(L*W*H)
Total power:2.5KW(220V/380V,3PH,50HZ)
Pouch Type：All type of heat sealable preformed side seal bags,block bottom bags,zip-lock recloseable bags,stand-up pouch with or withoutspout etc.
Main Features

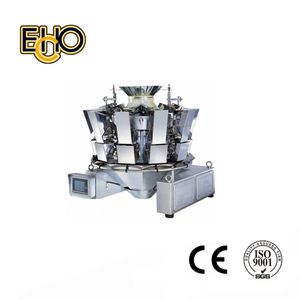

Name:10-head computer weigher
Size of machine body(mm): 1150(L)X950(W)X1129(H)
Weighing Range:10-1000g
Hopper capacity:1300ml
Average tolerance for single bag:0.2-0.5g
Preset number for product: 99 kinds
Hopper type:Bi-row hopper without memory
Driving:Step motor
Maximum weighing quality:3000g
Maximum weighing speed:70 bags /minute
Range of weighing precision:0.1-1.5g
Machine Parts

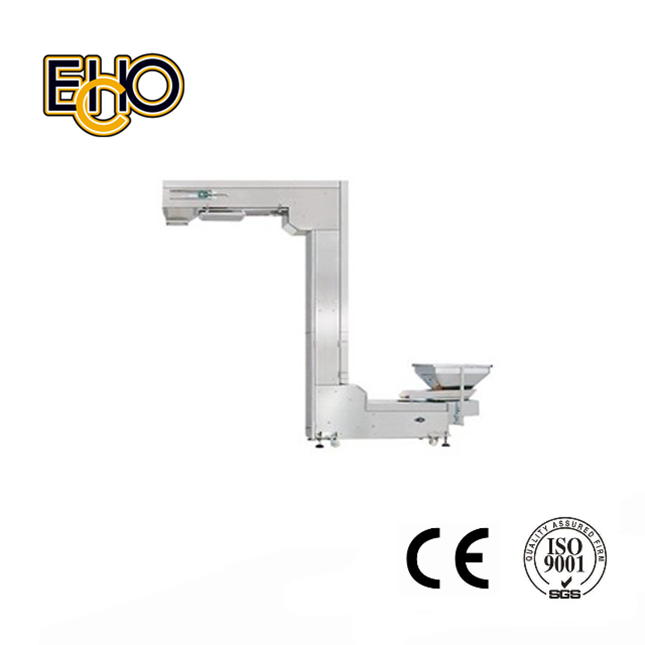

Name: Z type conveyor
Highness of lifting:3m -10m
Speed of lifting:0-17m/minute
lifting quantity:5.5cubic meter/hour
Power:750w
Conveying ability:3-6m3/h
Voltage:220v
Remark:Specification customized; material: carbon steel plastic-spray or stainless steel; the part contacting with food is food grade plastic.

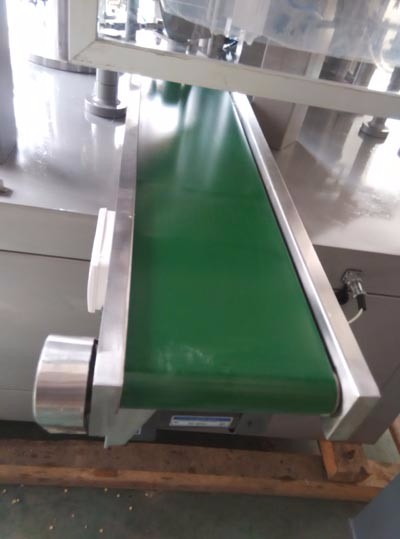

Main Features
power:120W
conveying ability:29cm/second
voltage:220V
gross weight:150Kg
| Packaging Details | Wooden case |
| Delivery Details | 60days |

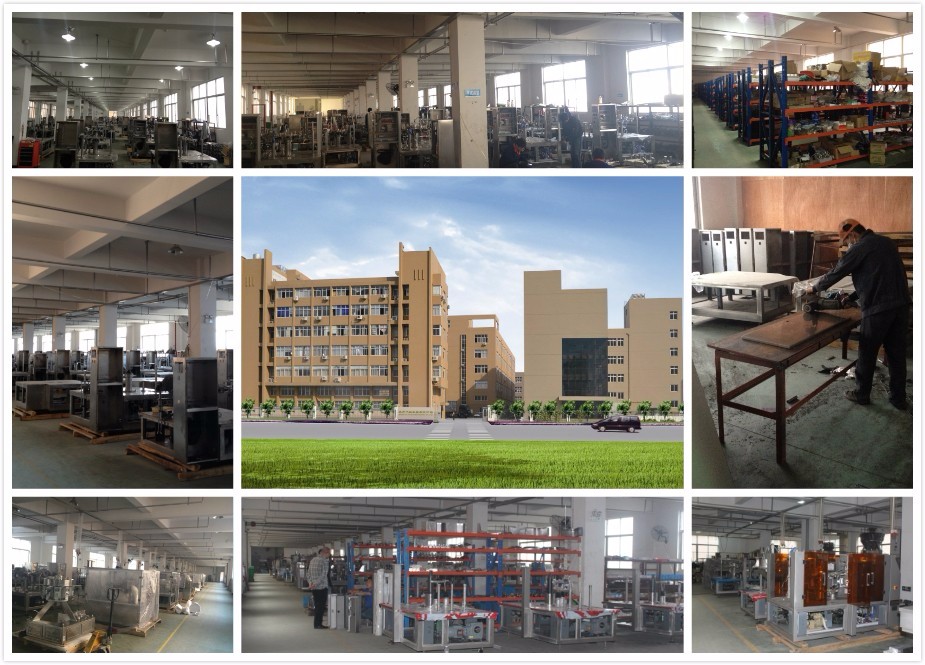

1.ECHO has 20 years’ experience of manufacturing packing machine.
2.Strong ability of product makes sure the delivery of the goods within a month
3.We have our own brand ECHO
4.We have a stable technology team including five high engineers in our factory
5.ISO9001 certified workshop and CE
6.The supporter of spare part all are famous company and have a reliable quality
7.Our machine can pack most of film. We also provide the film according to your demand.
8.In the field of pillow style packing machine, ECHO brand has came into top 5.
9.Our main product:Pillow type packing machine ,automatic cartoning machine, automatic thermoforming machine, vertical packing machine, three-dimension machine, rotary packing machine , and parts.
