GKH horizontal scraper discharging centrifugal separator

GKH horizontal scraper discharging centrifugal separator is a fully automatic-controling, continuous running, intermittent discharging filter type centrifugal separator. It can finish recoiling, feeding, dewatering, washing, discharging and unloading at f

Technical Feature

  • Automatic control
  • Stable operation
  • PLC control
  • Small vibration
  • Large capacity
  • Low moisture
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~999

PRIMARY PARAMETERS

Brand name
JIANGBEI
Application
Chemical industry, grain deep processing, food, pharmacy, light industry
Process input material
-
Process output material
-
Place of origin
China
Equipment material
-
Power (kW)
45~200
Weight (kg)
3820~24900
Outer dimension (mm)
Depends on model
Warranty
One year
Delivery
30 days
Main spare parts
-

MODEL SPECIFICATIONS

Model GKH800-NB GKH1250-NK GKH1600-NA GKH1800-NA
Drum diameter (mm) 800 1250 1600 1800
Drum length (mm) 450 600 1000 1250
Rotary drum speed (r/min) 1550 1200 950 800
Loading limit weight (Kg) 130 450 1000 1760
Loading volume (L) 100 355 830 1325
Separation factor (Fr) 1070 1006 800 645
Main motor power (kw) 45 90 132 200
Shape size (mm) 2480×1670×1310 4050×2300×1960 5200×2745×2295 5800×2840×2600
Host weight (Kg) 3820 10760 16550 24900

DETAIL DESCRIPTION

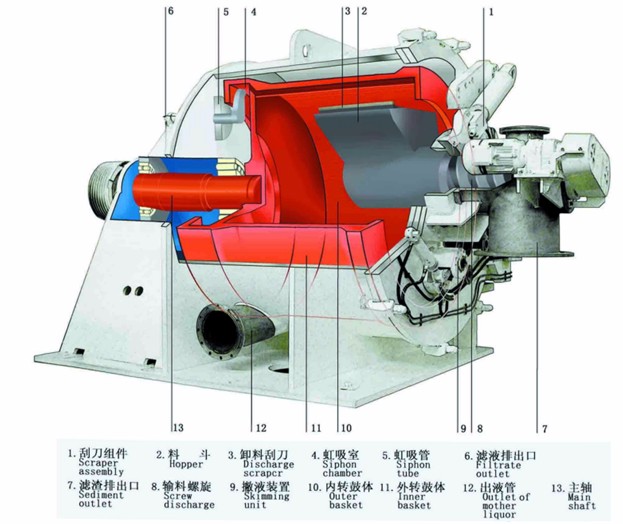

GKH type horizontal scraper discharge centrifuge


GKH horizontal scraper discharging centrifugal separator is a fully automatic-controling, continuous running, intermittent discharging filter type centrifugal separator. It can finish recoiling, feeding, dewatering, washing, discharging and unloading at full speed or variable speed. It is suitable for separating particles ranging 5um-5mm, DS1%-40% crystal or short-fiber material, especailly for large load production and sufficient washing


Structure and performance characteristics:

(1) Automatic operation, small working intensity

(2) Full closed, fine operating environment;

(3) Each executive element is controlled by hydraulic system, the operation is stable and reliable.

(4) Controlled by PLC, accurate and easily adjusting.

(5) Driven by frequency converter or hydraulic coupler, starting and stopping smoothly;

(6) Increase the siphon force and shorten the separating time.

(7) Large production capacity, low moisture.

(8) The material is uniform and the vibration is small.

(9) The filtration speed can be freely adjusted and the operation flexibility is large.

(10) Good regenerative effect.

(11) High washing efficiency and low consumption.

Application: widely used in chemical, grain processing, food, medicine, light industry, etc..

Typical applications: potassium chloride, ammonium chloride, soda, calcium sulphate, sodium pyrosulfite, hydrazine hydrate, sodium cyanide, potassium cyanide, calcium carbonate, cobalt carbonate, cobalt carbonate, lithium carbonate, calcium phosphate, activated carbon, methionine, oxalic acid, two acetonitrile, glycine, glyphosate, dimethyone, imidone, insoluble sulfur, and jade Rice starch, cassava starch, wheat starch, denatured starch, gulonic acid, Vc, VC sodium, APAP, molasses, AK sugar, erythromycin, raw materials, pharmaceutical intermediates and so on.
