GK horizontal scraper discharging centrifugal separator

GK horizontal scraper discharging centrifugal separator is open the feeding valve after fully running, the material pass the hopper to go into drum and distribute on the drum filtering medium. Under the centrifugal force, the liquid will be removed from f

Technical Feature

  • Automatic control
  • Stable operation
  • PLC control
  • Smoothly running
  • Easily adjusting
  • Wide usage
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~999

PRIMARY PARAMETERS

Brand name
JIANGBEI
Application
Food, chemical, medicine, light industry
Process input material
-
Process output material
-
Place of origin
China
Equipment material
-
Power (kW)
37~110
Weight (kg)
3350~12800
Outer dimension (mm)
Depends on model
Warranty
One year
Delivery
30 days
Main spare parts
-

MODEL SPECIFICATIONS

Model GK800—NB GK1250—NB GK1600—NB
Drum diameter(mm) 800 1250 1600
Drum length(mm) 450 600 800
Drum rotational speed(r/min) 1550 1200 950
Loading volume(L) 100 310 660
Main motor power(kw) 37 55 110
Shape size(mm) 2460×1670×1300 3100×2070×1775 3385×2725×2220/ 4720×2725×2220
Machine weight(kg) 3350~12800 7420 12400/12800

DETAIL DESCRIPTION


GK horizontal scraper discharging centrifugal separator

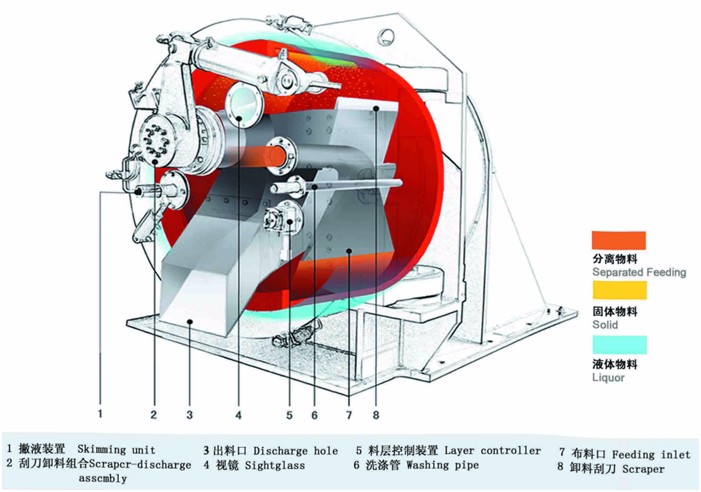

GK horizontal scraper discharging centrifugal separator is open the feeding valve after fully running, the material pass the hopper to go into drum and distribute on the drum filtering medium. Under the centrifugal force, the liquid will be removed from filtering medium and the small hole of drum, solid will be stopped on the filtering medium and form the filting cake. When the cake layer is enough thick, the feed valve will be closed and solid will be washed, then dewatering. Finally the scraper scrape the filter cake down, material will be removed through the conveyor.

Structure and performance characteristics:

(1) Automatic operation, small manual intensity

(2) Each executive element is controlled by hydraulic system, and the operation is stable and reliable.

(3) Control by PLC, accurate and easily adjusting.

(4) Driven by frequency converter or hydraulic coupler, starting and stopping smoothly;

Application: it can be widely used in food, chemical, medicine, light industry, etc..

Typical application materials: starch, potassium chloride, salt, heavy alkali, caustic soda, diphosphonium, sodium cyanide, calcium hydrogen phosphate, ammonium chloride and so on.


Main specifications and technical parameters


Model

GK800—NB

GK1250—NB

GK1600—NB/ND

Drum diameter(mm)

800

1250

1600

Drum length(mm)

450

600

800

Drum rotational speed(r/min)

1550

1200

950

Loading volume(L)

100

310

660

Main motor power(kw)

37

55

110

Shape size(mm)

2460×1670×1300

3100×2070×1775

3385×2725×2220/

4720×2725×2220

Machine weight(kg)

3350

7420

12400/12800
