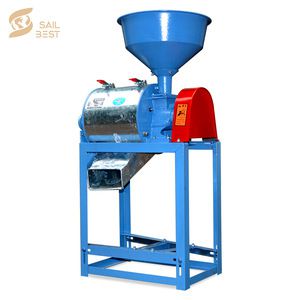

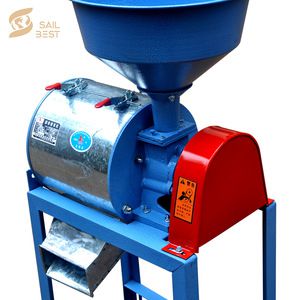

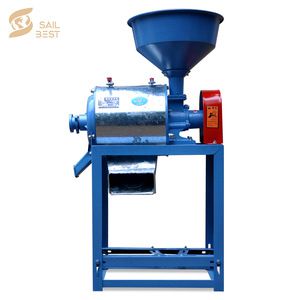

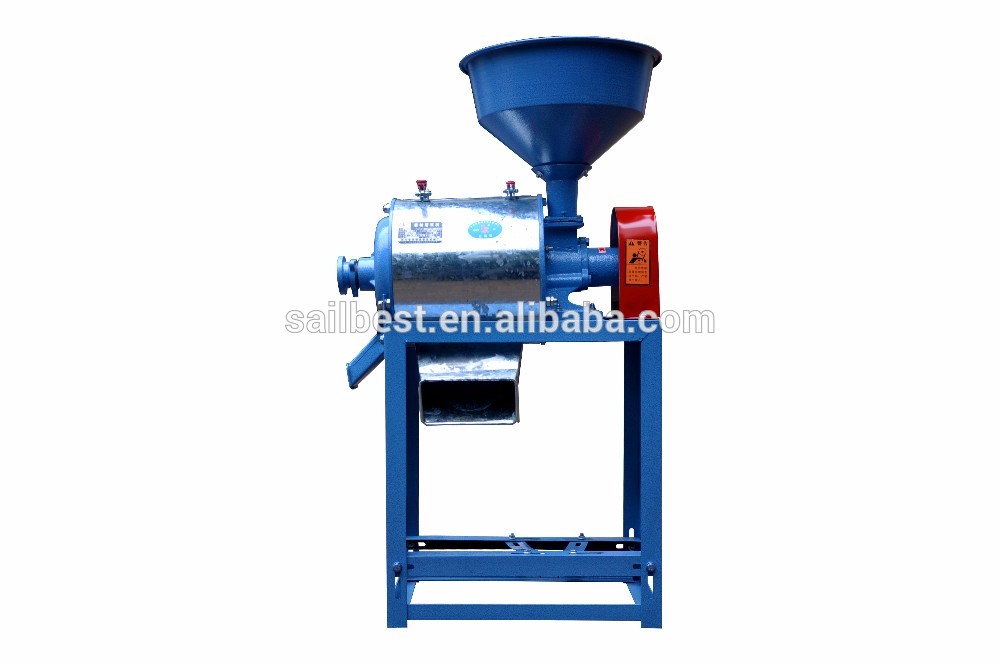

Corn flour mill grinder/grain grinder milling /maize flour plant with complete processing line
Product Parts Composition
1.The machine of 6FP-180 working parts are consisted of rotor, the fixed tooth as its assistant part.
2.Working principle:Raw material keep being striked by high speed spinning tooth then turn to very fine powder.When you are putting the raw material manually, the material then entered the crushing chamber automatically.
3.The raw material was crashed by the rotor while the machine is running, so as to finish the whole grind process. After that, the crashed powder will pass through the collection hopper under gravity and airflow. It use screen of different size mesh to control the size of powder. Structure of this machine is very simple. You can understand the working principle and learn to operate it easily.
Main Parameters
| Product Name | 6FP-180 |
| Rated voltage | 220V |
| Rated power | 2.2KW |
| Energy Consumption | ≤ 20 Kw·h/t |
| Sieving Mesh Size | 0.15 mm |
| Noise Level | ≤ 93 dB（A） |
| Bearing Temperature | ≤ 20 ℃ |
| Main Shaft Speed | 1200 r/min |
| Production Capacity | ≥100 Kg/h |
Product Function
1.Powder Crusher is widely used for grinding corn,grains,sorghum,beans,spices,Chilli, and all kinds of food into fine dry powder.
2.6FP-180 also can smash Paprika，pepper，fresh soybeans, red beans,mung beans grains wheats and corns,etc. The final product powder can meet customers' need.

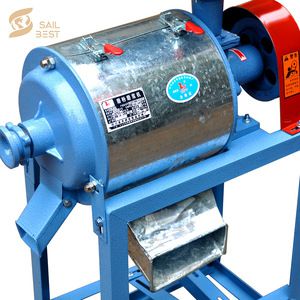

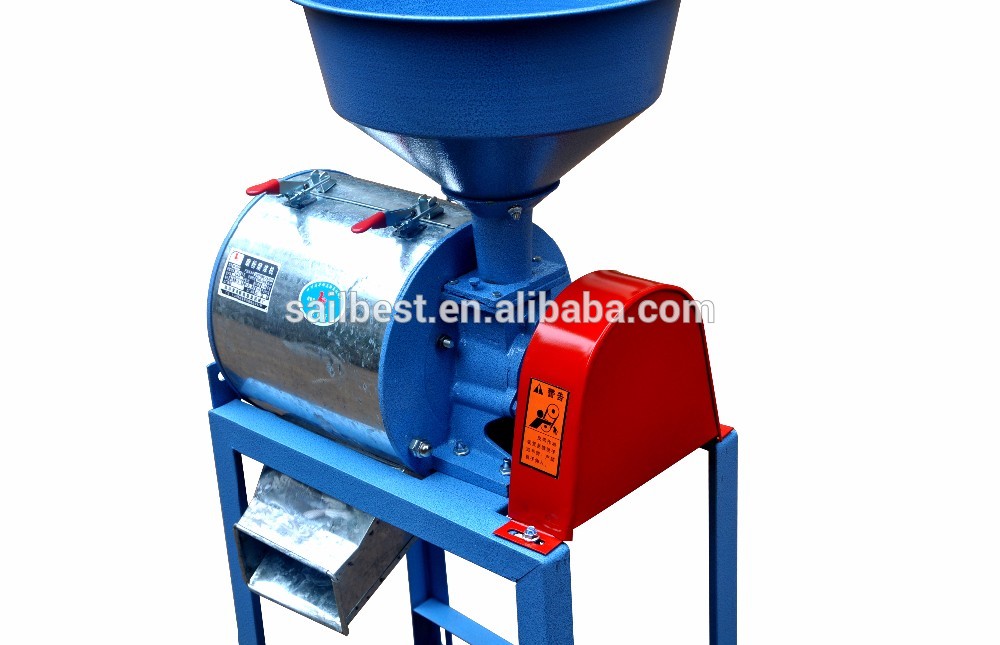

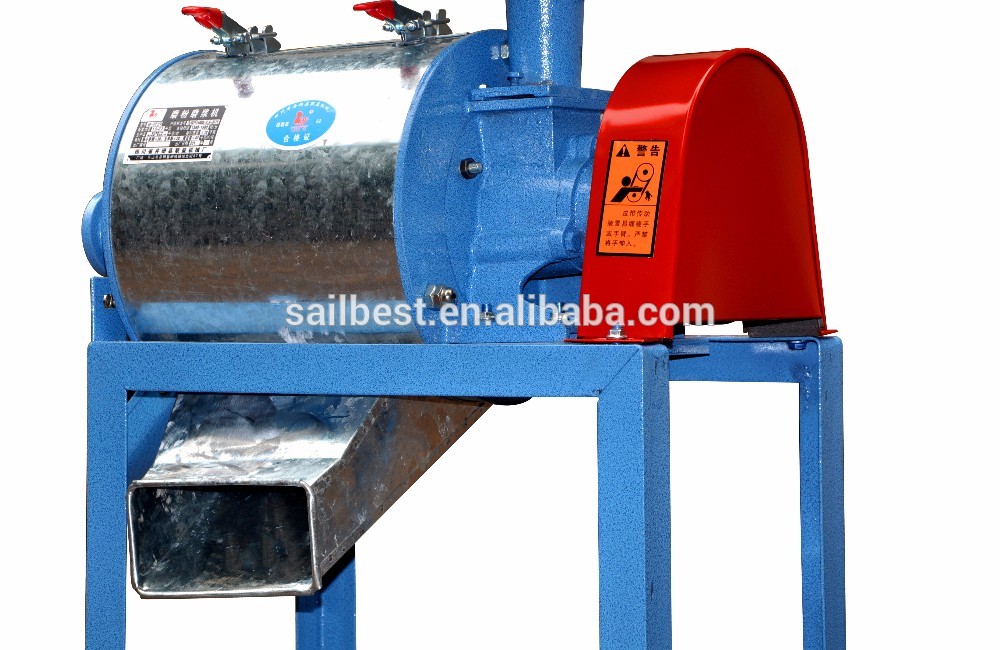

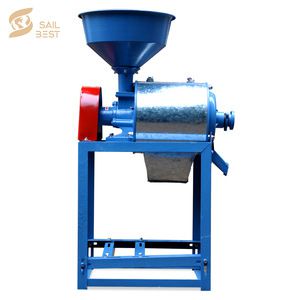

Pictures Show Of 6FP-180 Function
Annotate

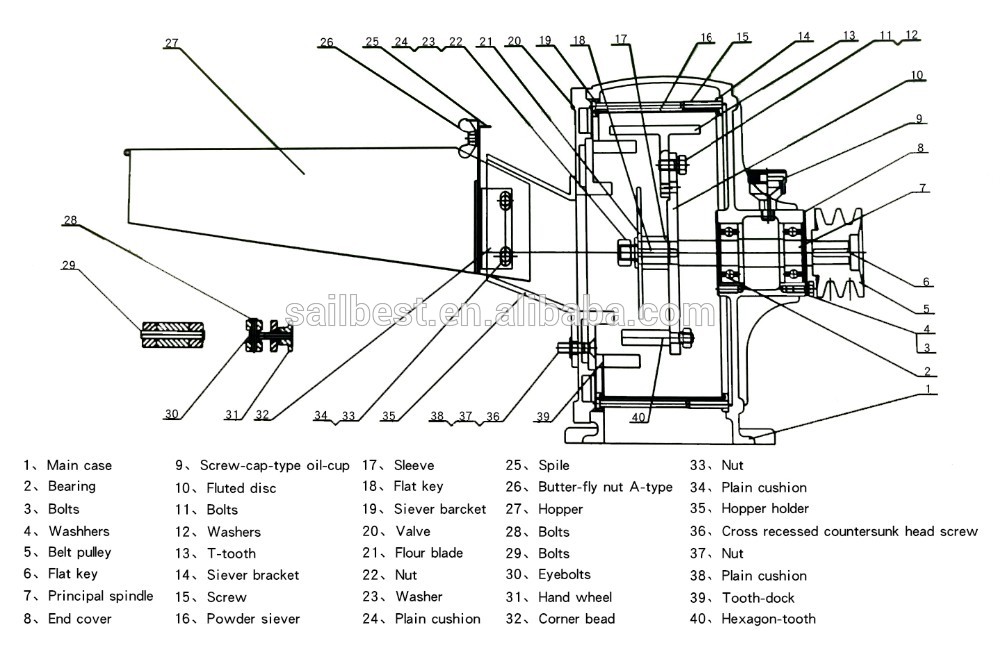

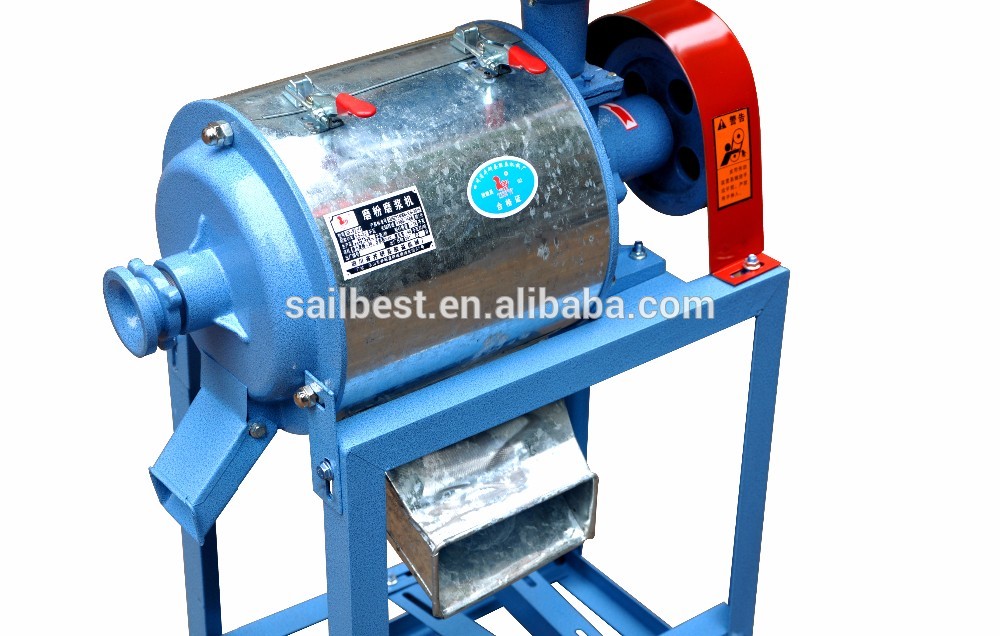

Structure Picture

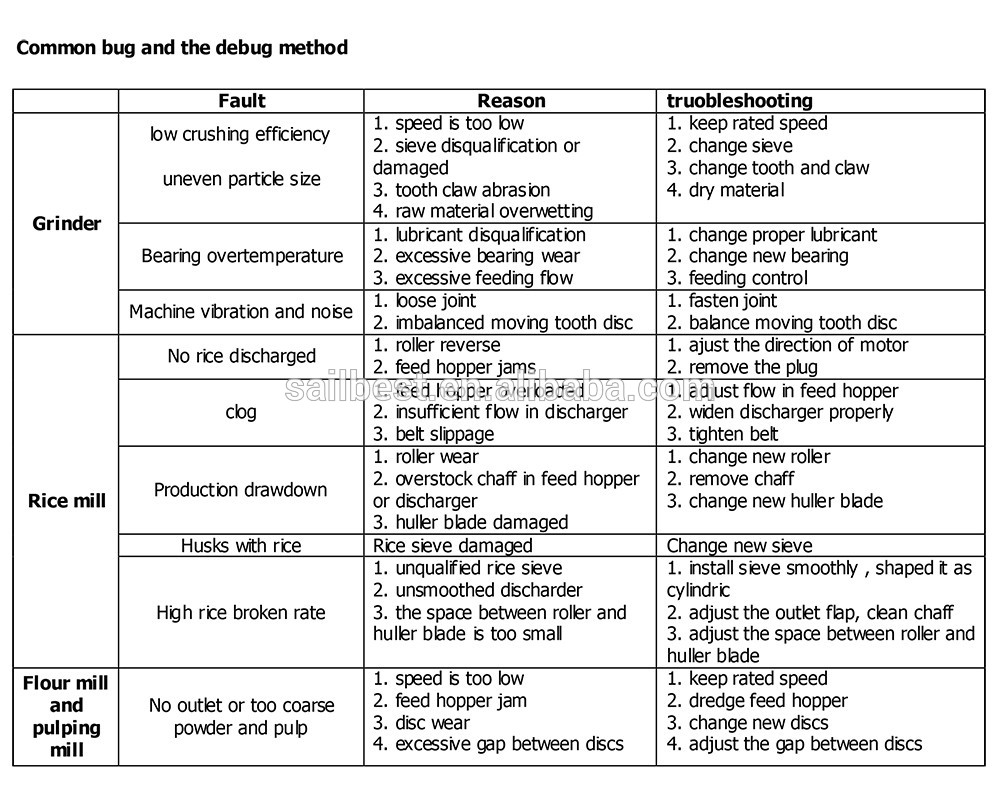

Mechanical Troubleshooting
| Packaging | |
| Size | 480(L) * 310(W) * 540(D) |
| Weight | 31kg |
| Packaging Details | The normal package is carton box(Size: 480*310*540). If export to european countries,the carton box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Resources
1.We make a maximum resource integration of high quality agriculture machinery suppliers in China, in order to offer our customers various types of agricultural machinery.
2.We have rich experience, and we cooperate closely with many well-known distributors.
High quality
1.Every product from our factories is elaborately manufactured and strictly tested according to standard in order to ensure its high quality when delivered to customers.
2.Good production process.
3.Provide you with the best quality products and the most preferential price.
Cooperation
1.Favorable price teamed up with on time delivery has made us immensely popular among our hugely satisfied clientele.
2.We boast of over 1,000 dedicated and high profile clients who have appreciated our excellent service and given us repeated orders.
A:Of course, we can provide you with an accurate quotation based on your specific requirement and order volume.
2. Q:How about the quality of your rice grinder machine ?
A:Every product from our company is elaborately manufactured and strictly tested according to standard so as to ensure its high quality when delivered to customers.
3. Q:How about the product warranty?
A:We provide a free replacement within 1 year if our products meet any problem caused by artificial factors.
4. Q:Could you provide OEM&ODM service?
A:Our professional designers are capable to design your products based on your requirements of ODM&OEM orders.

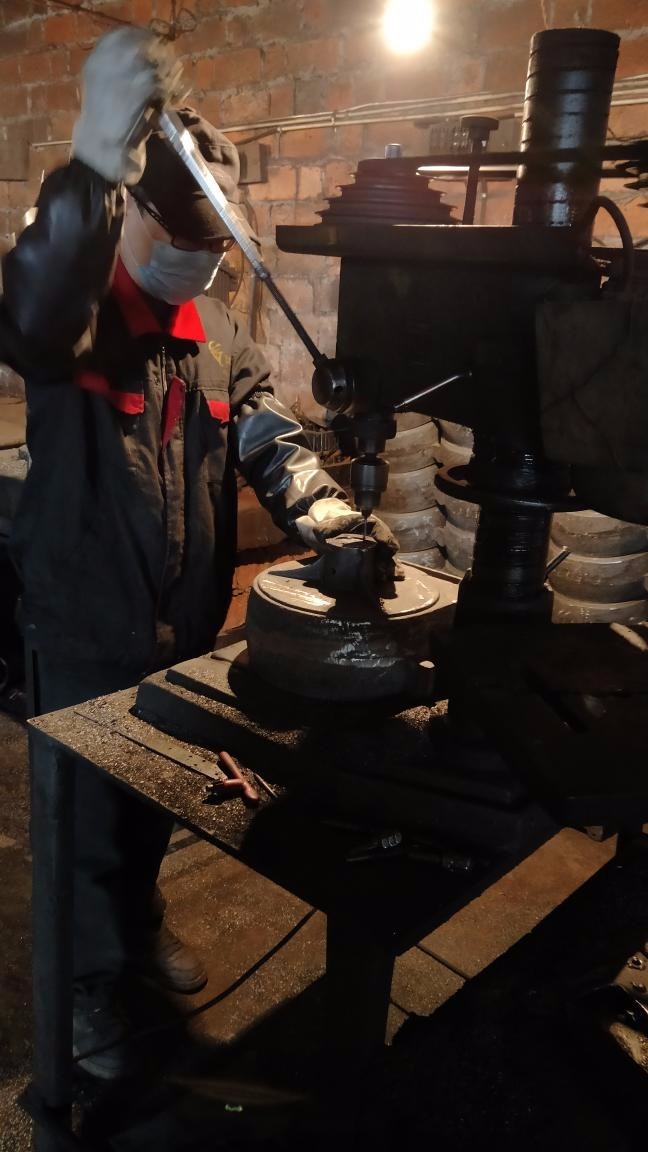

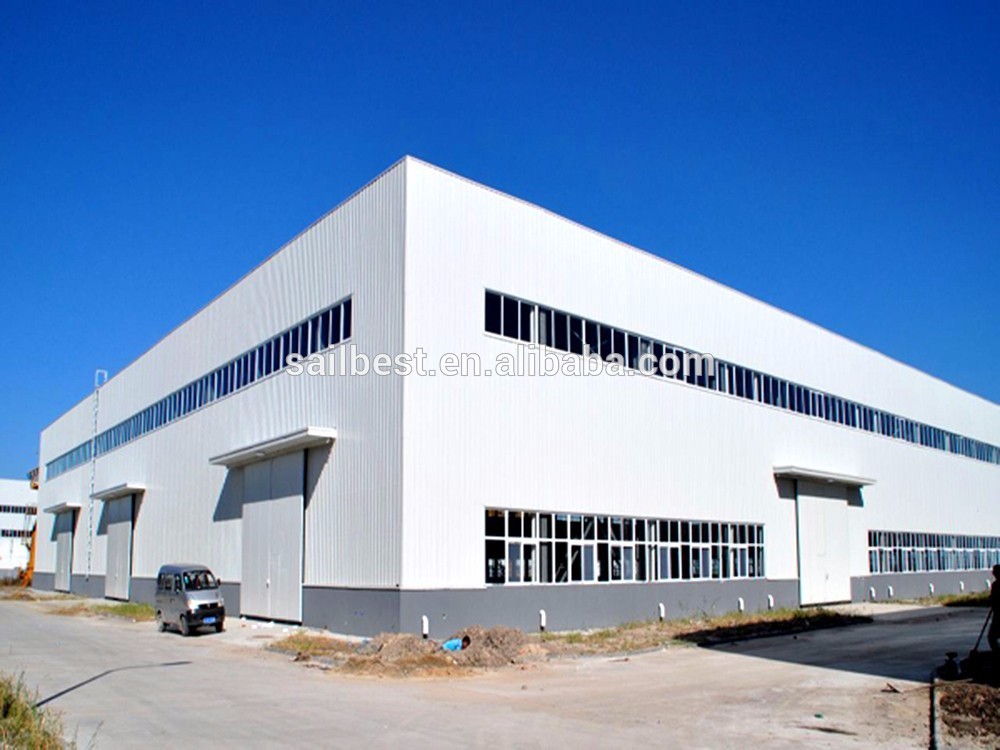

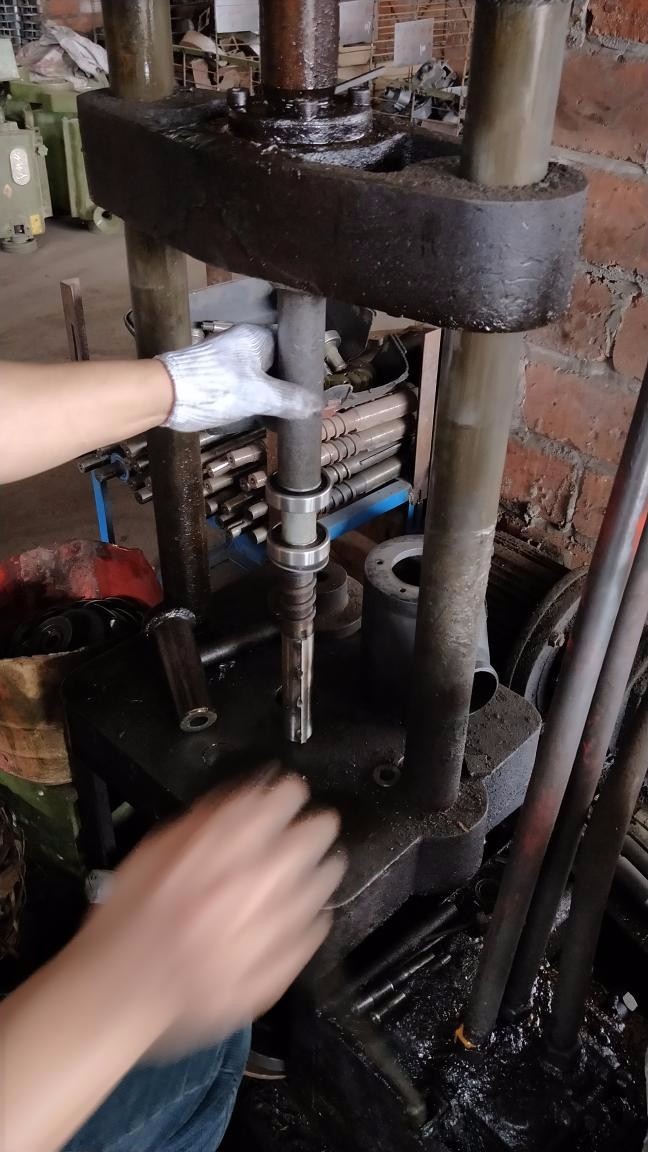

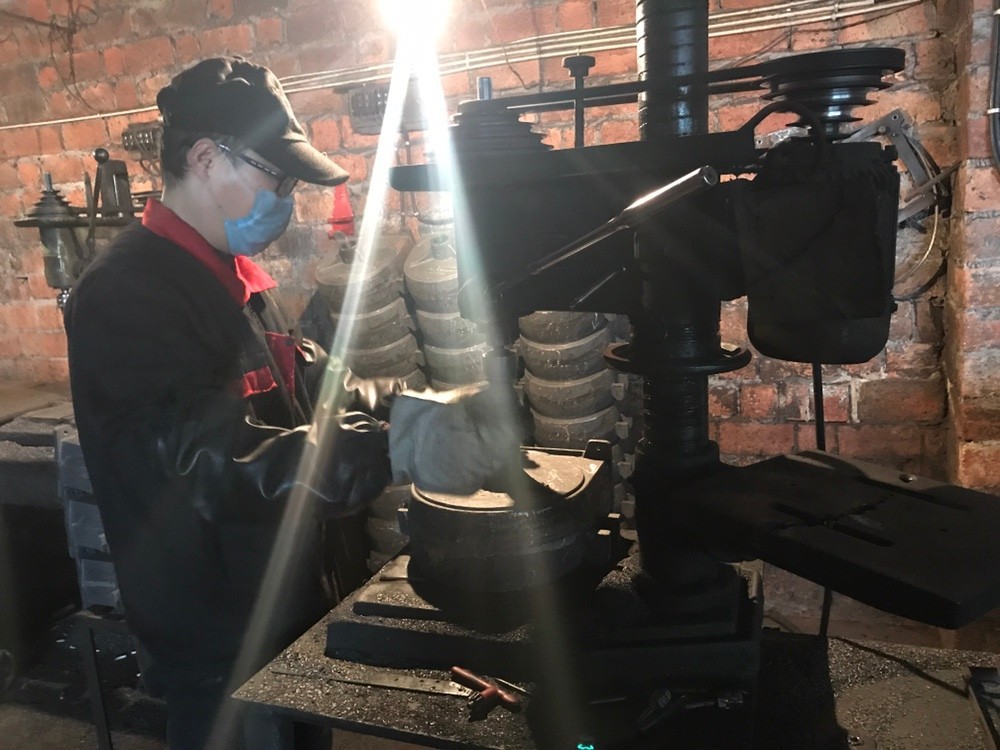

Factory and Processing line Picture Show:
