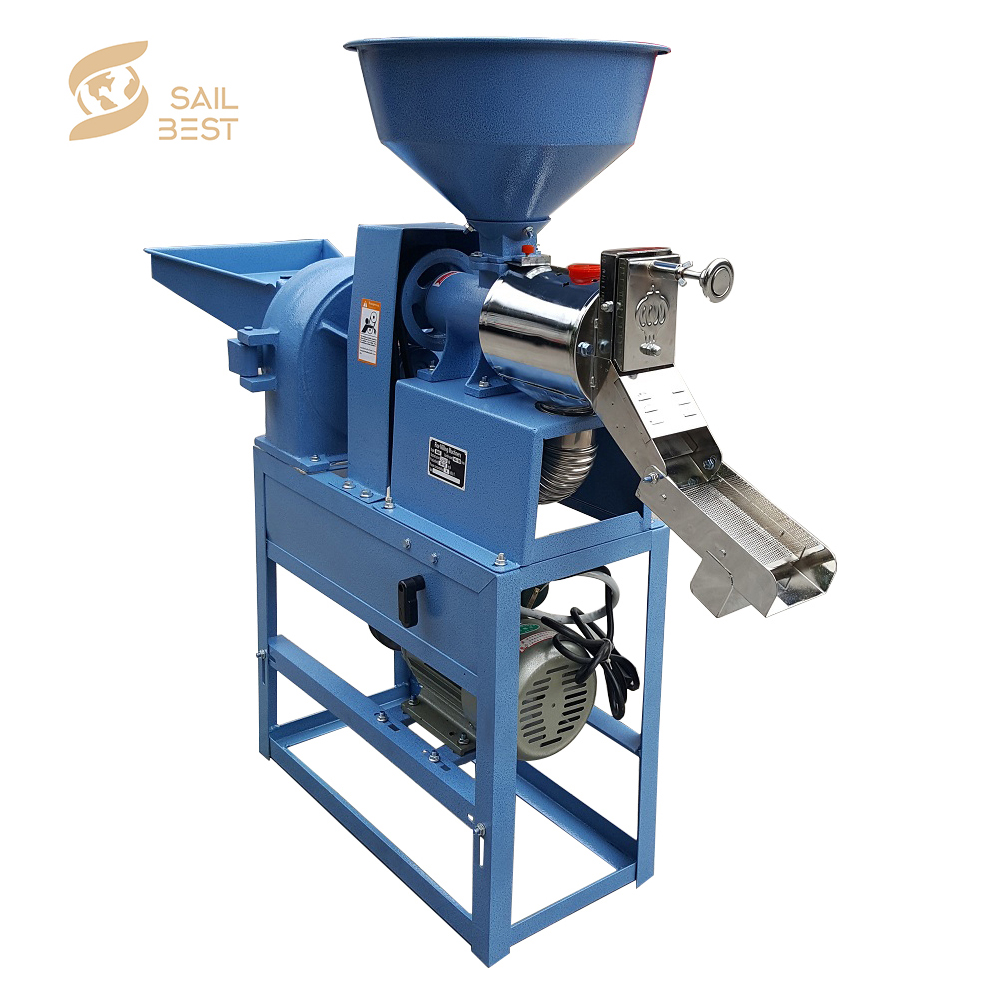

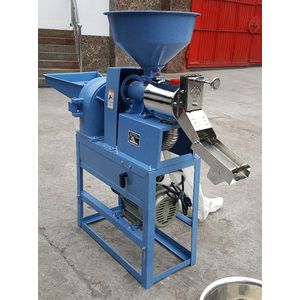

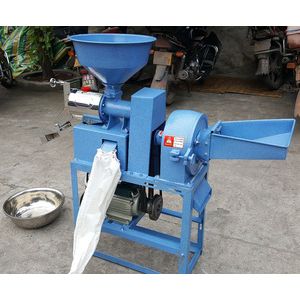

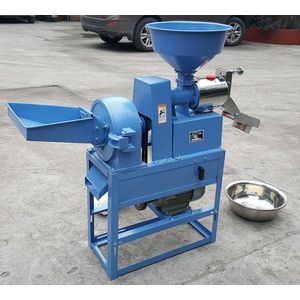

Small Corn Milling Machine Grinder Combined With Rice Mill Plant Electric
Combination & Usage

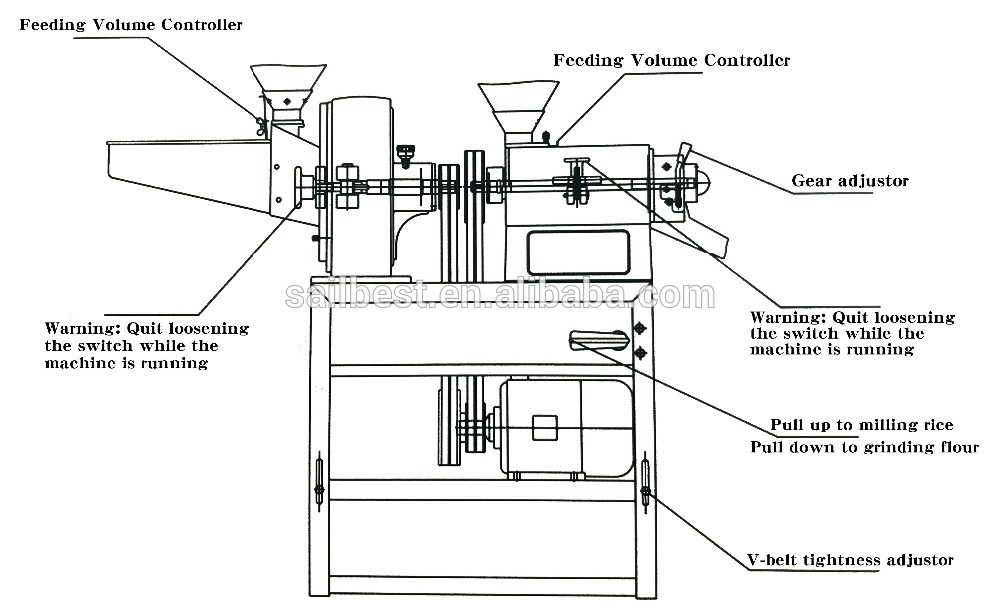

1. This kind of combination machine consists of four main parts: rice milling machine,corn flour grinder ,electric motor(excluding) and steel frame .The rice milling machine consists of protection cover, seat base, rice roller,rice sieve,rice blade,feeding hopper,slide screen,material flow adjustor .The grinder machine consists of feeding hopper,crushing parts and output hopper.
2. The rice milling part can process the paddy directly into rice, and separate the rice from bran and broken rice. The grinder part can crush the paddy,wheat,corn,maize,sorghum,soyabeans,herbs.etc.
3.Working Principles:
Start motor, belt pulley of the motor drives the belt and bearing of rice machine to rotate. Paddy in feeder will be carried to inner rice milling box by rotated bearing. Paddies in milling box squeezed by bearing ,screen and themselves. Almost every paddy is milling to husked rice and be whiten at this step. Then bran will be blow out by fan ,come into the bran bag we provided without shell and bran , husked rice will get through screen and come to discharge port of the milling box. As for broken rice,it will get through the screen on discharge port and be separated from whole rice.Main Parameters
| Product Name | Small Corn Milling Machine Grinder Combined With Rice Mill Plant Electric |
| Dimension | 1260*430*1140 mm |
| Packing size(L*W*H)mm | 630*320*550 mm |
| Rated voltage | 220V-240V |
| Rated power | 2.2KW |
| Rated motor speed | 2800 r/min |
| Productivity of Grinder | >=220kg/h |
| Productivity of rice mill | >=160kg/h |
| Structure style of rice mill | Disconnected Type |
| Structure style of grinder | Tooth Claw Type |
| Noise | Rice mill : <=85 dB(A) |
| Grinder : <=89 dB(A) | |
| Net weight(Without motor) | 63.25 kg (Without Motor) |
Product Function
Rice Mill
Low rice broken rate
High capacity and quality
Very safety belt protection cover
Design for farmer and used conveniently in home
Easy operate and maintain with detail
instruction
etc.
Corn grinder
Power consumption is lower
High - Productivity
The thickness of the crush powder can be chosen by the customer
Easy to operate and maintain with detail instruction
etc.
Their own characteristics
Rice Milling Machine.
1.This machine is directly turning paddy into rice. Our unique design can separate the rice completely from bran and broken rice.
2.Our rice milling machines' feed hopper adopts the whole drawing process, enhancing the durability and strength.

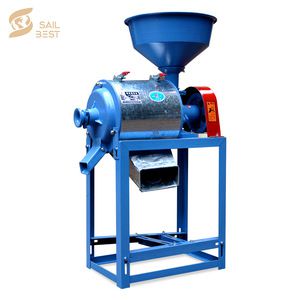

Grain Grinder.
1.The grain grinder is widely used in grinding cereal and animal feed stuff such as corn, maize, soybean, dried sweet potato slices, herbs and so on with kinds of usages.
2.Our grain grinder's thickness of powder depends on sieve diameter size.There are different kinds of sizes which can satisfy the customers' need.
Annotate
1.With different size of powder mesh,It can meet your different production needs.
2.Our price is excluding motor. Additional charge is needed if you want a motor.
3. If you want a inverted switch for combined machine, the electrical inverted switch is not in the guaranty. No return and No change supporting.
| Packaging | |
| Size | 630 (L) * 320 (W) * 550 (H) |
| Weight | 63.25 kg (Without Motor) |
| Details | The normal package is carton box(Size: 630*320*550). Commonly packed by carton. |
Please Pay Attention Here.
Resources
1.We make a maximum resource integration of high quality agriculture machinery suppliers in China, in order to offer our customers various types of agricultural machinery.
2.We have rich experience, and we cooperate closely with many well-known distributors.
High quality
1.Every product from our factories is elaborately manufactured and strictly tested according to standard in order to ensure its high quality when delivered to customers.
2.Good production process.
3.Provide you with the best quality products and the most preferential price.
Cooperation
2.We boast of over 1,000 dedicated and high profile clients who have appreciated our excellent service and given us repeated orders.
1.Q: Could you provide us a better price?
A:Of course, we can provide you with an accurate quotation based on your specific requirement and order volume.
2. Q:How about the quality of your rice grinder machine ?
A:Every product from our company is elaborately manufactured and strictly tested according to standard so as to ensure its high quality when delivered to customers.
3. Q:How about the product warranty?
A:We provide a free replacement within 1 year if our products meet any problem caused by artificial factors.
4. Q:Could you provide OEM&ODM service?
A:Our professional designers are capable to design your products based on your requirements of ODM&OEM orders.

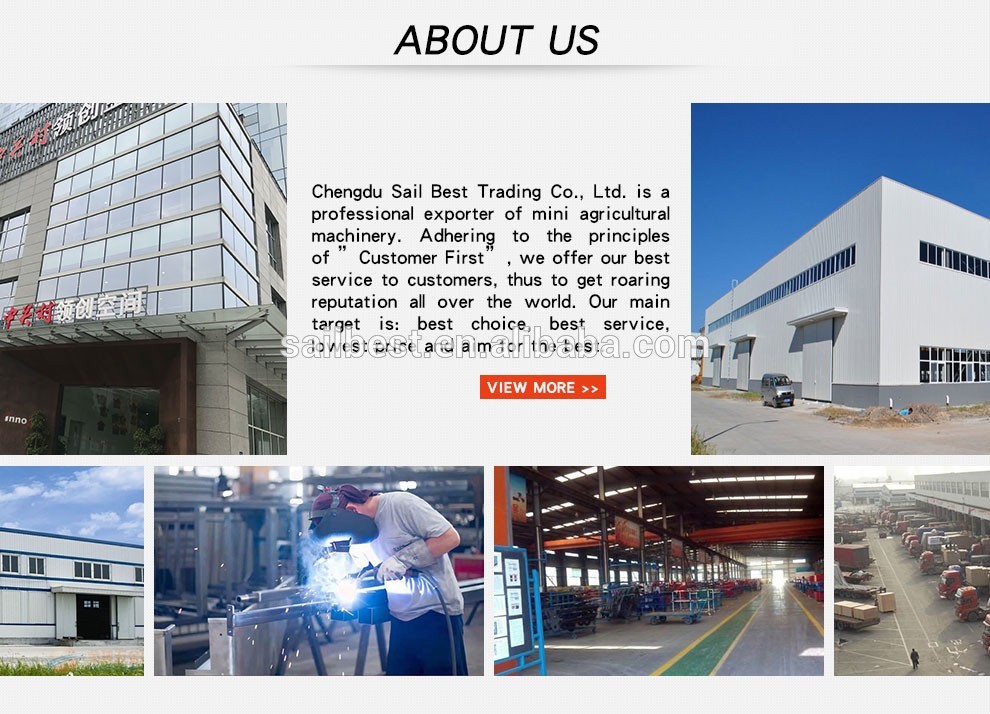

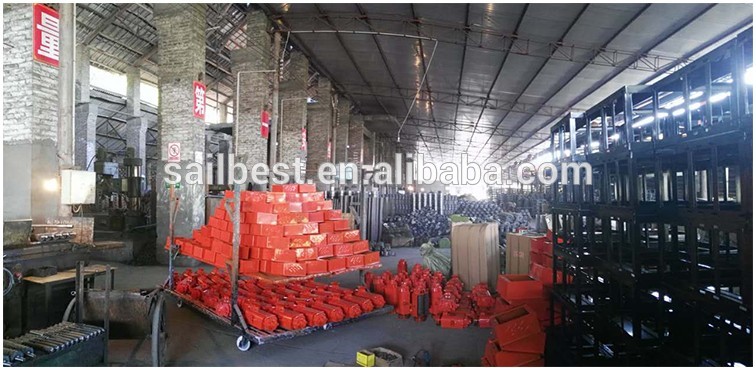

Our Factory

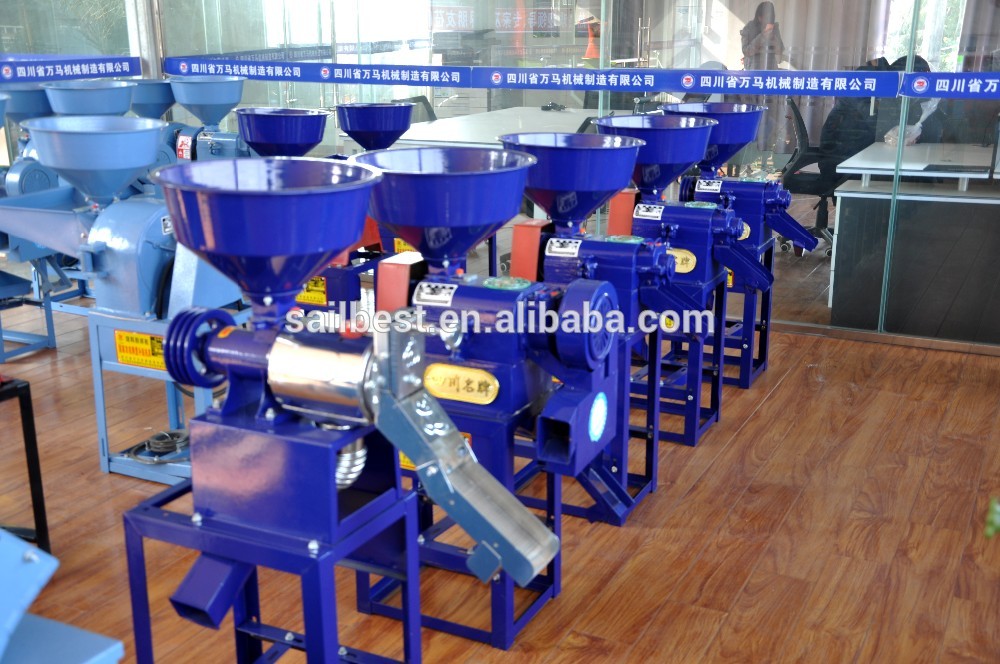

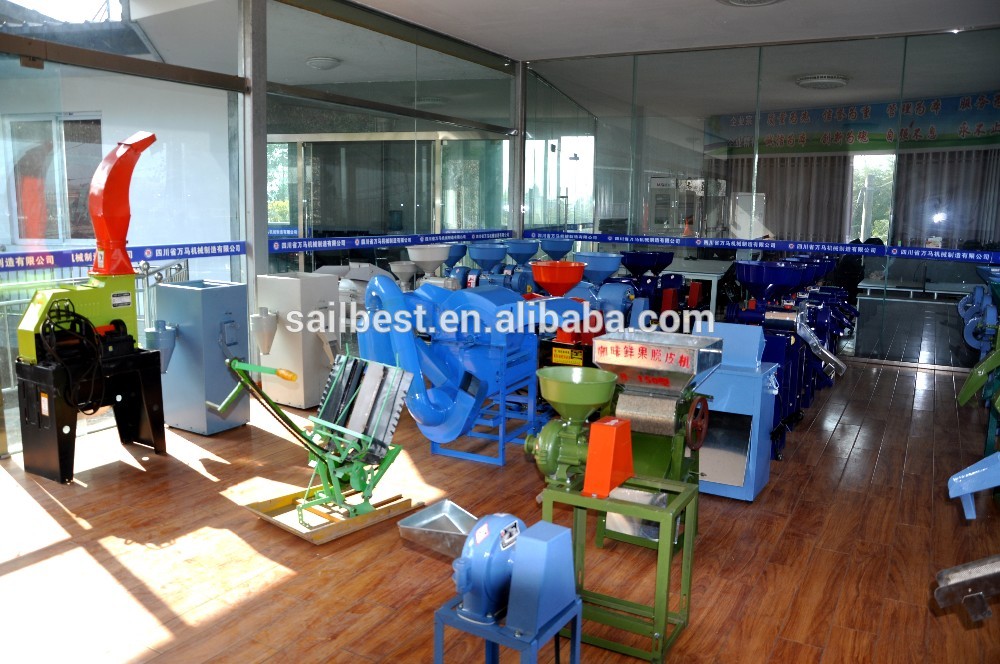

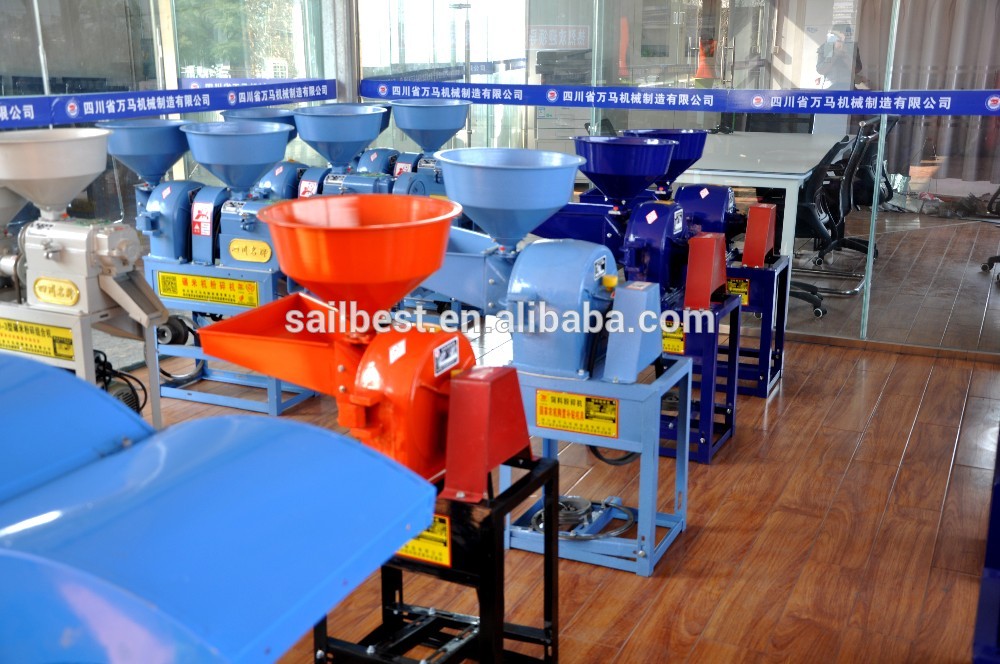

Our Sample Room Pictures
