20-200T/D complete set of flour milling
30-200 T/D FTA complete set of corn processing
using dry peeling and degerming technology, it can produce different sizes of corn grits and flour at the same time. Corn grits size can be customized as per customer’s need in order to meet various needs such as brewery, snack food, glucose, and sugarhouse. Thanks for the dry peeling and degerming technology, husks and germs collected at the end don’t need to be dried before used for animal feed.
FTA complete set maize milling machine can produce low fat corn grits, corm germ, corn flour and corn peel with different size at the same time. The throughput of the set varies from 30 tons to 200 tons per 24 hours. The whole assembly line consists of grain cleaning, maize peeling, maize milling and maize flour packing parts.
Introduction:
1. It can finish cleaning, peeling, removing embryo, radices and black cord, crushing, grit getting, polishing, grading, selecting flour in one time.
2. Beautiful appearance, easy operation, reliable performance, and energy saving.
3. it's suitable for wet and drying peeling.
4. It has wind webdust control system, stepless smashing system, electric currency display system, etc.
5. it’s suitable for kinds of corn, and this machine had exported to many countries successfully.
Process Flow:
Maize- bucket elevator-separator-magnetic box-low pressure air blower-destoner- bucket elevator-air aspirator –emery roller dehuller-tank- emery roller dehuller-iron roller polisher- bucket elevator-grading sieve-germ separation table-hammer mill-grits polisher- bucket elevator-flour sifter-husk separator-plan sifter- low pressure air blower- air aspirator- Grits packaging.
Output Index:
Model | Capacity (input corn per 24 hours) | Total power(kw) | Working space(m) | Power consumption |
FTA | 30-200 tons | 17-285 | 7*3*3.5-27*7*8 | 35-50kw.h/t |
Final products | Output yield | Fat content | Size |
Corn grits | 45-55% | <0.8% | Mesh 8-40 |
Corn flour/ corn meal | 20-30% | <1.5% | Mesh 50-80 |
Animal feed/ maize peel | 25% | High | Normal |
Final products parameter
1. Sand content≤0.002%
2.Metal content≤0.003g/kg
3. Water content: 13.5-14.5%
4. Color and smell: regular
Henan Chengli Grain & Oil Machinery Co., Ltd has decade years of researching, designing and producing experience, as a professional manufacturer specialized in producing grain processing machineries.CHENGLI is engaged specially in project design on grain processing factory of wheat flour and corn/maize flour. Our superior products are complete set of 30T-200T/D maize flour processing machine and wheat flour processing machine.

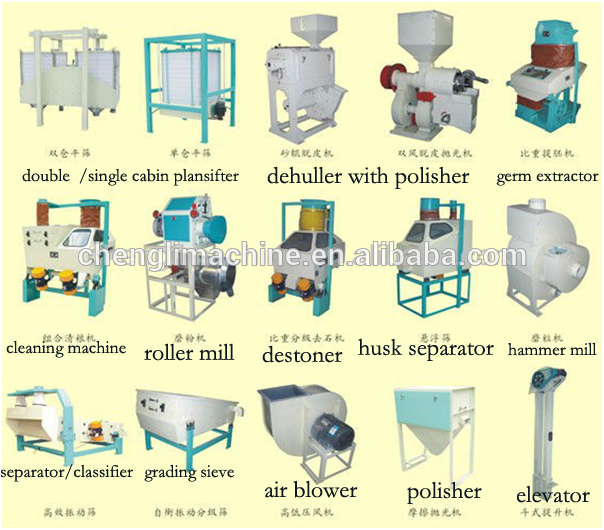

We are the professional manufacturer in China, We can supply the technology and service on complete set of Corn/Maize Deep-processing Machine, Maize/Wheat Flour Deep Milling machine, single Peeling machine, single Grinding machine, single Polishing machine, different kinds of Pulverizer, Separator, Classifier, Sieves and Plansifter, Centrifugal Ventilator, Pellet machine, Hammer Mill, Packing machine, Oil Refining production line, Oil Press and other machinery parts. We can supply the different designs with different cost to meet different buyer's request.
