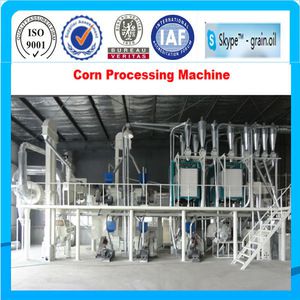

Maize/Corn Milling Mills, small capacity corn wet milling plant
Using dry peeling and degerming technology, it can produce different sizes of corn grits and flour at the same time. Corn grits size can be customized as per customers' need in order to meet various of needs such as brewery, snack food, glucose, sugarhouse. Thanks for the dry peeling and degerming technology, husks and germs collected at the end don't need to dried before used for animal feed.
The series of dry milling corn grits machine:
FTA-10 FTA-20 FTA-30 FTA50 FTA-100
Technical data:
Model | Capacity(t/h) | Total power(kw) | Working space(m) | Power consumption |
FTA-30 | 30 | 105 | 10*5*5.5 | 55kw*h/t |
FTA-50 | 50 | 128 | 13*5*6 | 50kw*h/t |
FTA-100 | 100 | 285 | 27*7*8 | 50kw*h/t |
Final products | Output yield | Fat content | Size |
Corn grits | 45-55% | <0.8% | Mesh 8-40 |
Corn flour | 20-30% | <1.5% | Mesh 50-80 |
Animal feed | 25% | High | Mormal |
1.Sand content:<0.02%
2.Metal content:<0.003g/kg
3.Water content:13.5-14.5%
4.Color and smell:regular
Function parts of the machine:
The main equipments in each step
Cleaning
High efficiency vibration sifter, Destoner
Peeling ,milling and degerming
Sand roller, Peeling polisher, Roller mill, Vibrating grading sceen and Germ extractor
Screening
Grinder mill ,Polisher, Suspension screening mahcien, Double cabin plansifter.
End products of the machine:
Company Information
As a professional manufacturer of grain processing machineries, Henan Chengli Grain & Oil Machinery Co.,Ltd has been catering to various wheat and maize milling and other grain processing needs of clients since found bu proving top class solutions.
Our advantages:
1. We have made a long-term development relying on our solid technology, scientific management, advanced facility as well as good after-sale service.
2. We have been taking the researching and manufacturing of top grade grain machinery as its responsibility, cooperating with many scientific research institution and universities, attaching the importance to the talents and advanced technology introduced from the outside world.
3. We have made the marketable products of new and high quality management system, owned our own factories and ready local markets, and enough energy to export all around the world including Russia, Vietnam, the Philippines, Australia, Mexico, Bangladesh, India, and African countries.
Our services:
We not only supply big comprehensive plants but also provide standalones for private users.
We concentrate on corn and wheat processing machine both in small sized and big sized line.
We are not only professional in manufacturing but also professional in installment and maintainment after the sound operation.
