RHB-80 pillow type packing machine

This machine is a horizontal pillow-shaped packaging machine, which can automatically complete the automatic bag making, wrapping, sealing and cutting of the tubular film. A single or several continuous package suitable for solid shaped articles. For diff

Technical Feature

  • Compact in structure
  • Simple in operation
  • Reliable in operation
  • High in packaging speed
  • Stable in packaging quality
  • Flat and beautiful in packaging
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10000~50000

PRIMARY PARAMETERS

Brand name
Ruiyi
Application
This machine is used for the packaging of instant noodles, bread, biscuit snacks, bowl noodles, bottled lactic acid beverages, etc. It is also suitable for the packaging of medicines, cosmetics, soap daily necessities and industrial parts.
Process input material
-
Process output material
-
Place of origin
China
Equipment material
SS
Power (kW)
3.66
Weight (kg)
1100
Outer dimension (mm)
5000*965*1750
Warranty
One year
Delivery
30 days
Main spare parts
-

MODEL SPECIFICATIONS

Model RHB-80
Name Pillow type packing machine
Model RHB-80
Capacity(B/min) 120
Film material PC, POF or OPP
Film spec.(mm) D350*450
Film dimension(mm) (45-210)*(10-150)*(5-50)
Overall dimension(mm) 5000*965*1750
Power(kw) 3.66
Weight(kg) 1100

DETAIL DESCRIPTION

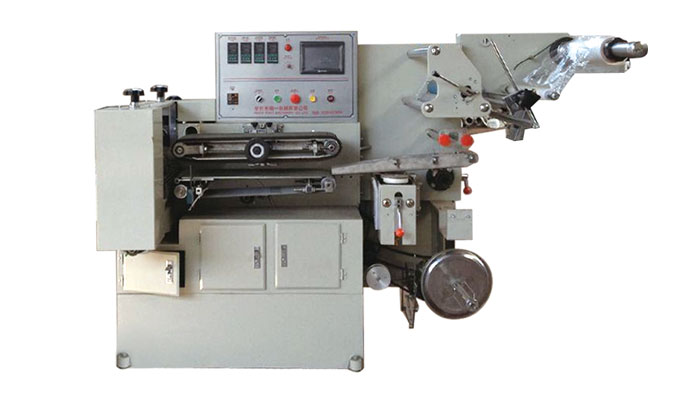

RHB-80 pillow type packing machine


Application

This machine is a horizontal pillow-shaped packaging machine, which can automatically complete the automatic bag making, wrapping, sealing and cutting of the tubular film. A single or several continuous package suitable for solid shaped articles. For different product packaging requirements, the vertical seal can achieve a bottom edge seal or a side seal. This machine is also used for the packaging of instant noodles, bread, biscuit snacks, bowl noodles, bottled lactic acid beverages, etc. It is also suitable for the packaging of pharmaceuticals, cosmetics, soap daily necessities and industrial parts. This machine has a wide range of applications and can be quickly changed through adjustment. Packaging variety.

During the working process, the packaged object is fed into the former by the feeding conveyor, and at the same time, the packaging film is pulled into the former by the longitudinal sealing wheel and the upper and lower clamps under the input of the film driving roller, and the packaged object is wrapped tightly. Forming a cylindrical shape, the longitudinal sealing wheel seals the film while pulling the film, and the tubular film after the wrapping is transported to the horizontal seal by the upper and lower clips, where the transverse sealing is transversely cut, cut, and warp After the brush is exhausted, it is discharged by the output input machine.

The device is compact in structure, simple in operation, reliable in operation, high in packaging speed, stable in packaging quality, and flat and beautiful in packaging. Advanced technology and safety devices such as overload protection, leakage protection, fault alarm, etc., complete functions.
