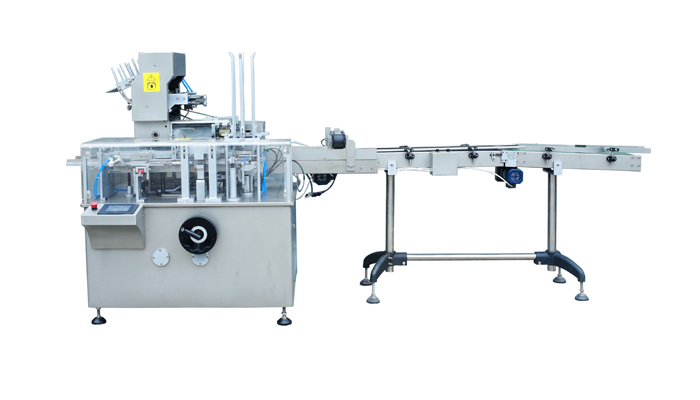

RYZ-120KH wide box injection type automatic cartoning machine
Technical performance and features
The machine is equipped with the front-end printing input machine and paper tray cascade line. It adopts frequency conversion speed regulation and human-machine interface operating system. The speed setting is stable and reliable. The control part adopts imported programmable controller, which automatically displays the loading speed and counting, and has Automatic rejection of non-conforming products. The specification of the model is simple and convenient to operate, reasonable in structure and convenient in maintenance.
Application
The products are widely used in the automatic packaging of injection products in the pharmaceutical industry.
Specification
| No. | Description | Unit | Spec. | Remark |
| 1 | Dimension | mm | 2600*1000*1550 | |
| 2 | Total power | kw | 1.5 | |
| 3 | Voltage | V | 380 | |
| 4 | Packing speed | B/min | 50-90 | |
| 5 | Carton dimension | mm | (85-160)*(70-135)*(13-35) | |
| 6 | Carton paper | g | 250-300(White card) or 300-350(gray card) | Per square meter |
| 7 | Strating current | A | 10 | |
| 8 | Running current | A | 5 | |
| 9 | Air consumption | L/min | 5-20 | |
| 10 | Compressed air | M Pa | 0.5-0.8 | |
| 11 | Vacuum pumping capacity | L/min | 10 | |
| 12 | Vacuum degree | M Pa | -0.08 | |
| 13 | Weight | kg | 1050 | |
| 14 | Noise | ≤dB | 70 |
