1 year warranty turnkey project maize mill

Corn grain is hard with embryo, which need to be soaked so that it can be crashed easier.

Technical Feature

  • Henan, China (Mainland)
  • DOWIN
  • DW-CS-100
  • Grain Processing Equipment, corn starch machine
  • Engineers available to service machinery overseas
  • 1 year warranty turnkey project maize mill
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
DOWIN
Model Number
DW-CS-100
Type
Grain Processing Equipment, corn starch machine
After-sales Service Provided
Engineers available to service machinery overseas
Name
1 year warranty turnkey project maize mill
Function
corn starch making
Texture
SS
Service life
50 years
Service after sale
Plant design, installation, training
Warranty
1 Year
Transportation
as customer required
Capacity
Diffrent Capacity
Voltage
220V/380V

DETAIL DESCRIPTION

1 year warranty turnkey project maize mill

Product Description

 Corn starch, corn flour or maize starch or maize is the starch derived from the corn (maize) grain or wheat. The starch is obtained from the endosperm of the kernel. Corn starch is a popular food ingredient used in thickening sauces or soups, and is used in making corn syrup and other sugars.





Production process

1. Purifying: Clean up the impurities in the corn grain, usually by screening, wind selection, the proportion of sorting and so on. Purified corn is sent to steeping section.

Main Equipment: Vibrating sieve

2. Steeping: Corn grain is hard with embryo, which need to be soaked so that it can be crashed easier. It is to make corn become soft in steeping tank with steeping principle, where acid is heated and remains 50°C. Dipped corn is pumped to crashing stage, sending to wet corn storage after dewatering.

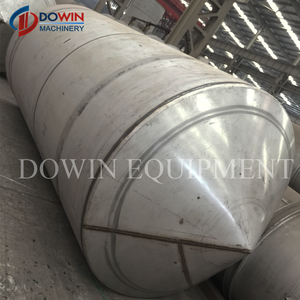

Main Equipment: steeping tank

3. Corn Coarse Crushing: Mainly to break soaked corn into more than 10 small pieces, so that its easier to separate the embryo.

Main Equipment: Disc Crusher

4. Germ Separation: Crashed corn is pumped into the first germ cyclone and screen, and then goes to the second mill for further crush. Germ goes to the second germ cyclone then back to previous tank.

Main Equipment: Corn Germ Stripping Mill, Germ Hydrocyclone

5. Milling: In order to extract the starch, corn pieces must be ground to separate fiber and bran.

Main Equipment: Hammer Crusher

6. Starch Sieving: After grinding, the corn paste can be got. Then we can separate starch from coarse residue.

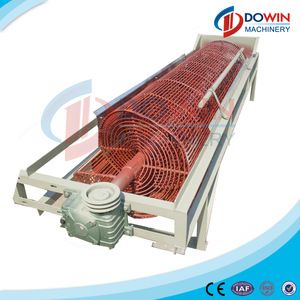

Main Equipment: Hexagonal Sieve, Flat Sieve, or Centrifugal Sieve

7. Protein separation and starch washing: Starch milk goes to primary separator for gluten separation. Cleaned starch goes to 12 stages cyclones for final washing to remove the tiny foreign items.

Main Equipment: Hydrocyclone, Disc Separator

8Drying: Fine starch milk is dewatered by peeler centrifuge, the starch is sent to air flow dryer for making dry starch product in which moisture should be less than 12%.

Main Equipment: Air Flow Dryer Assembly









Packaging & Shipping



Company Information

 Henan Dowin Machinery Company is the main manufacturer of food equipment with more than 10 years experience in China. Our main machines cover all kinds of washer, cutter, peeler, and dryer, and so on.

We have the professional technology, research, design and sale teams. And our main markets cover Africa (such as Nigeria, Ghana, Cameroon, Gabon and so on), Europe, America.

FAQ

 1. How can we see the working machines?
You are warmly welcome to visit our factory, our engineers will explain you the machines details one by one.
2. How can we choose the right model number machine?
You can choose the right model number according to the raw material you use and the output capacity you need.

3. Will you offer training?
Yes, free training will be offered after the installation.

4. What is your guarantee time?

At least one year with all necessary after-sale service provided.

5. Where is your factory?

Our factory is located in Zhengzhou city which is the capital of Henan province, China. It is very convenient for you to visit here, no mater you come here by train or by air..



Our Services

1. Pre-sales Service

Work as your technical assistant, special design for you according to your site, construction condition and other requirements.

2. Sales

a. Install and debug equipment according to contract;

b. After sales engineer will help you do prepare works for the first start up and debug for you;

c. In the working site, we supply operation and serviceman for free. Besides, we can make sure operator can get hold of usage, working requirement, correct maintain way and diagnose remove corrected when machine broke down.

3. After-sales Service

a. Remind user maintain machine for certain time each year;

b. Guarantee spare parts for free;

c.Out of warranty period, we can supply paid service and spare parts all time.
