Large capacity stainless steel cassava /tapioca extractor /centrifugal sieves
1. Main performance of cassava /tapioca extractor /centrifugal sieves:
1. Washing;
2. Peeling;
3. Dry peeling;
4. Peeling and washing;
5. Do not hurt the material;
6. Material will be sent to the next stage automatically.
2. Technical parameter of cassava /tapioca extractor /centrifugal sieves:
| Model No. | GD-QP-100 |
| Main Material | Carbon Steel |
| Overall Size | 4700*1400*1000mm |
| Setting up Weight | 474KG |
| Power | 3KW LV4 |
| Processing Ability | Connected |
3. Pictures of cassava peeler:
4. Cassava starch processing machines' description:
Cassava starch production is a physical separation process, it is a process to seperate the starch
from cellulose, protein and inorganic substances in cassava etc. In the production process, basis on
starch's nature of insoluble in cold water and greater than water's specific gravity, the starch is separated from water slurry starch through water and special mechanical equipment.
5. Output capacity:
5 tons/hour, 7 tons/hour, 9 tons/hour, 12 tons/hour, 15 tons/hour, 18 tons/hour, 20 tons/hour, 24 tons/hour.
6. Process flow of cassava starch processing machine:
Operation pictures:
7. Main technical parameters:
| Cassava slicing machine | |||
| Efficiency | 5-7t/d | 8-12t/d | 12-24t/d |
| Power | 140-180kw/m | 150-190kw/m | 250kw/m |
| Water Comsumption | 8-12m ² | 8-12m ² | 8-12m ² |
| Area | 400 m ² | 400 m ² | 400 m ² |
Cassava slicing machine | ||||
| Main Machines | Material | |||
| Economy | Standard | Economy | Standard | |
| Scraper Lifter | yes | yes | Carbon Steel | Carbon Steel |
Washing Peeler | yes | yes | Carbon Steel | Carbon Steel |
Paddle type washing machine | yes | yes | Carbon Steel | Carbon Steel |
| Inclined squirrel cage washing machine | yes | yes | Carbon Steel | Carbon Steel |
| Curved mush crusher | yes | yes | Stainless Steel | Stainless Steel |
| Grit Catcher | yes | yes | Stainless Steel | Stainless Steel |
| Filter (milk) | yes | yes | Stainless Steel | Stainless Steel |
| Rotary Filter | yes | yes | Carbon Steel | Stainless Steel |
| Hexagonal Filter | yes | yes | Carbon Steel | Stainless Steel |
| Starch Hydro Cyclone | yes | yes | Stainless Steel | Stainless Steel |
| Vacuum Dehydrator | yes | yes | Carbon Steel | Stainless Steel |
| Airflow Drying System | yes | yes | Carbon Steel | Carbon Steel |
| Starch screener | yes | yes | Carbon Steel | Carbon Steel |
Automatic packing machine | yes | yes | Carbon Steel | Carbon Steel |
8. Advantages of cassava slicing machine:
A. High starch extraction rate
Several class hydrocyclone countercurrent washing step by step, the reasonable design of process
to make starch extraction yield above 40%.
B. Less water consumption
Producing per ton starch just consumes 5-8 tons water,it can save 15 to 25 tons water when producing
per ton starch compared with the traditional equipment.
C. The large output capacity
Advanced equipment and technology can produce potato starch 35 tons per day,cassava starch 25 tons
per day, sweet potato just uses a single production line, it is absolutely in a leading position.
D. Automatic design
Fullly automatic design, save time and manpower, and ensure the quality of finished starch production.
E. Safety, high efficiency
Multi-stage peeling and cleaning process,remove cassava epidermis effectively,reduce the toxicity of
cassava epidermis greatly, therefore, the finished starch product becomes safer.
9. Company Introduction:
Henan Dowin Machinery Company is the main manufacturer of cassava slicing machine
with more than 10 years experience in China. Our main machines cover cassava starch/flour
processing machine, potato starch processing machine, garri processing machine and so on.
We have the professional technology, research, design and sale teams. And our main markets cover
Africa (such as Nigeria, Ghana, Cameroon, Gabon and so on), Europe, America.....
10. Packaging and loading:

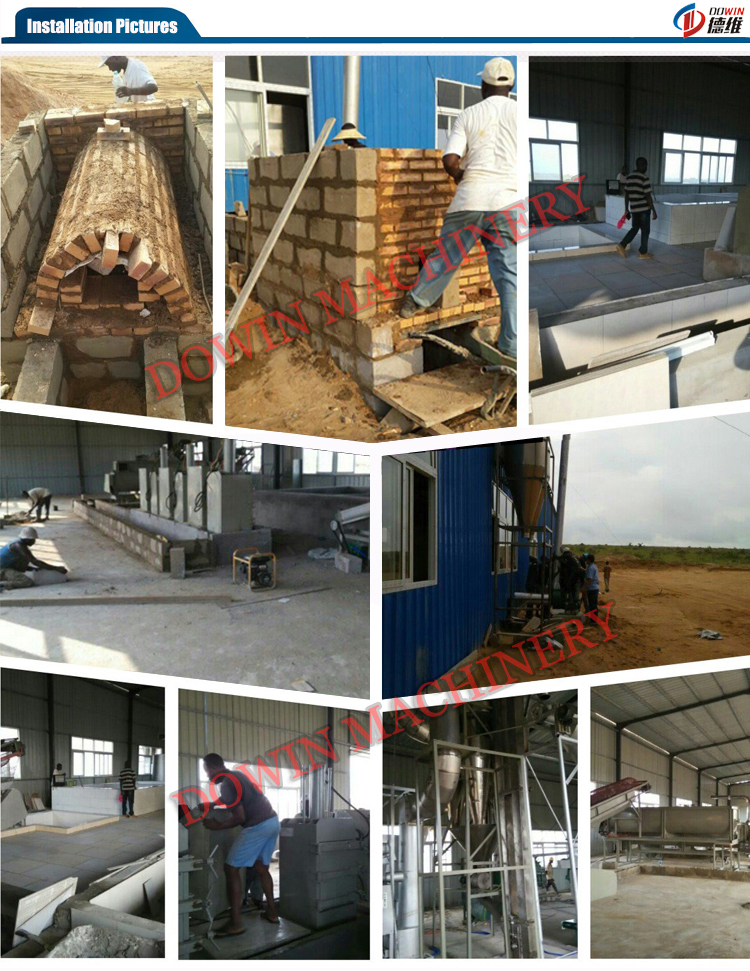

11. Pictures of installation for our clients:
12. Our Services:
1. Pre-sale service of cassava slicing machine:
a) Our salers will give you the detailed introduction of the whole line.
b) Our engineers will design the factory layout for you.
c) We can design the machine according to your requests, such as the main material, the color and so on.
2. After-sale service of cassava slicing machine:
a) We offer you the whole factory design and machines' installation drawing.
b) You can send your workers to our factory for learning before the shipping.
c) We offer machine operation training to you for free after the machine are installed.
d) We will provide you the videos and pictures of the machines making process and package.
e) One year warranty.
13. FAQ
1. How can we see the working machines?
You are warmly welcome to visit our factory, and we have the working machine in factory, our engineers will explain you the machines details one by one.
2. How many labors to operate the production line?
The standard line just need about 5 labors to operate.
3. Will you help us to build the factory and install the machine?
Yes, it will take about 30 days for 2 people to install the whole production line. And our engineers will be sent to your site to help you for the installation.
4. Will you offer training?
Yes, free training will be offered after the installation.
5. Where is your factory?
Our factory is located in Zhengzhou city which is the capital of Henan province, China. It is very convenient for you to visit here, no mater you come here by train or by air..
