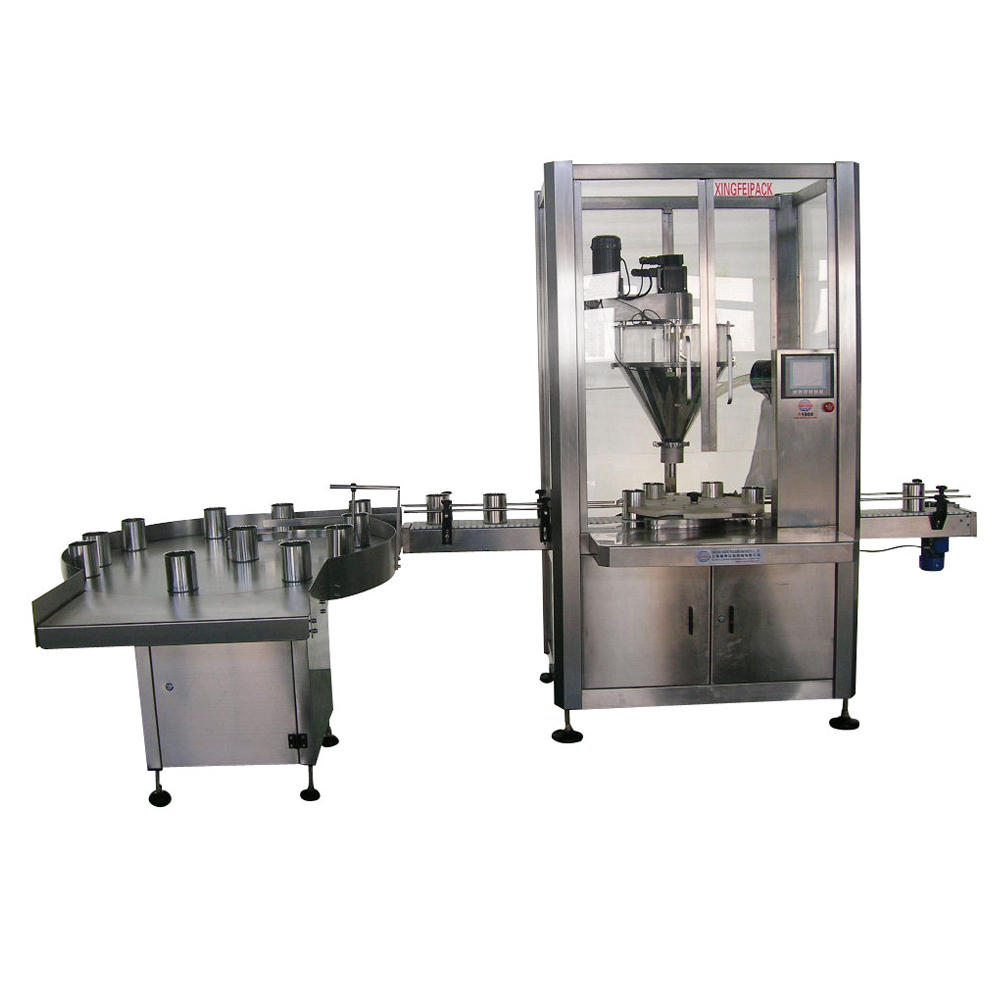

XFF-G dextrose cans filling machine
I. Application
The machine can finish the process of feed, dose, fill, and failed packs detect & delete automatically. The machine is suitable for packaging powdery & grainy product, for instance, milk powder, monosodium glutamate, solid beverage, icing sugar, spice,dextrose, feed, coffee, solid medicament, powdery & grainy additive, dye, etc.
II. Character:
1.Chinese/English touch screen and HMI, PLC control system. Auger is driven by servo motor.
2.Equipped with automatic can/bottle feeding system, implement to the functions of no-can-no-filling.
3.Open-door hopper, a frame type machine be designed the humanization to easily wash. Reasonable mechanical structure, easy to change size parts and clean up.
4.The functions of over-weight warning, error message display and failed packs detecting & deleting, which never let any reject to pass through, ensure the packing quality.
5.Max. 10 recipes can be saved for later using.
6.Have the functions of can support, vibration and dust extraction.
III. Technical Parameter
Packing weight | 10-5000g |
Weighting range | 1-6000g (with a resolution of 1 g) |
Packing precision | ≤1% |
Packing speed | 20-50 can /min |
Power supply | 380/220V 50-60 Hz |
Power | 2kw |
Weight | 500kg |
Dimension | 1750×2700×2300mm |
Container Volume | 50-180mm height50-350mm ,Cylinder containers with a diameter of 50-180mm and a height of 50-350mm |
| Packaging and shipping | |
| Accepted Payment Currency | USD,RMB |
| Nearest Port | Shanghai Port |
| Packing Detail | wooden case |
| Accepted Delivery Terms | FOB/CNF/CIF |
1. we have 24 hours service.
2.One year warranty and Lifelong after sales service.
3.Provide you Quality Control in processing line.
4.OEM service is avaliable,and provide technology supporting in products, we are in 10+ years exporting experience.

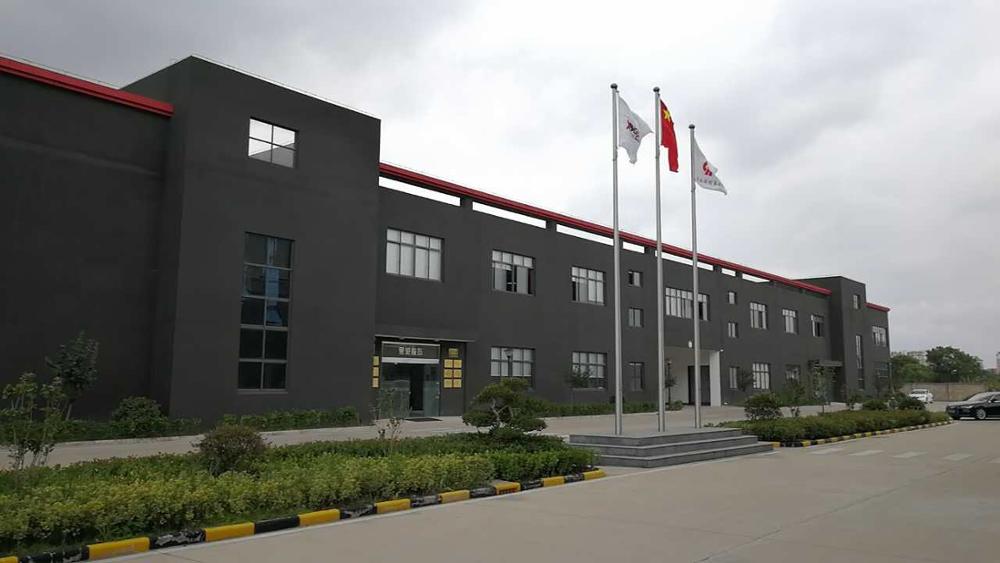

Shanghai Xingfei Packaging Machinery Co., Ltd. is a professional manufacturer engaged in the research and development of packaging machinery and Automatic carton packing production line, and we are a member of the Chinese Food and Packaging Machinery Industrial Association.
Since our establishment, we have used European and Japanese advanced experience for reference and have developed several kinds of top-grade vertical packaging machinery, horizontal packaging machinery, and packing equipment used for different granule, powder and liquid, and other assistant packaging machinery. We also can supply the layout of automatic packing processing lines. If you choose "XINGFEI", you choose assured quality.
More information please visit website http://www.xingfeipack.com
Q1:Are you factory or trading company?
A: We are factory and manufacturer.
Q2 : What is the payment term?
A: normal T/T, 40% down payment and 60% balance payment before shipping.
Q3 How long is the delivery time?
A: About 35- 40 working days according to the product requirement
Q4. How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in Shanghai
