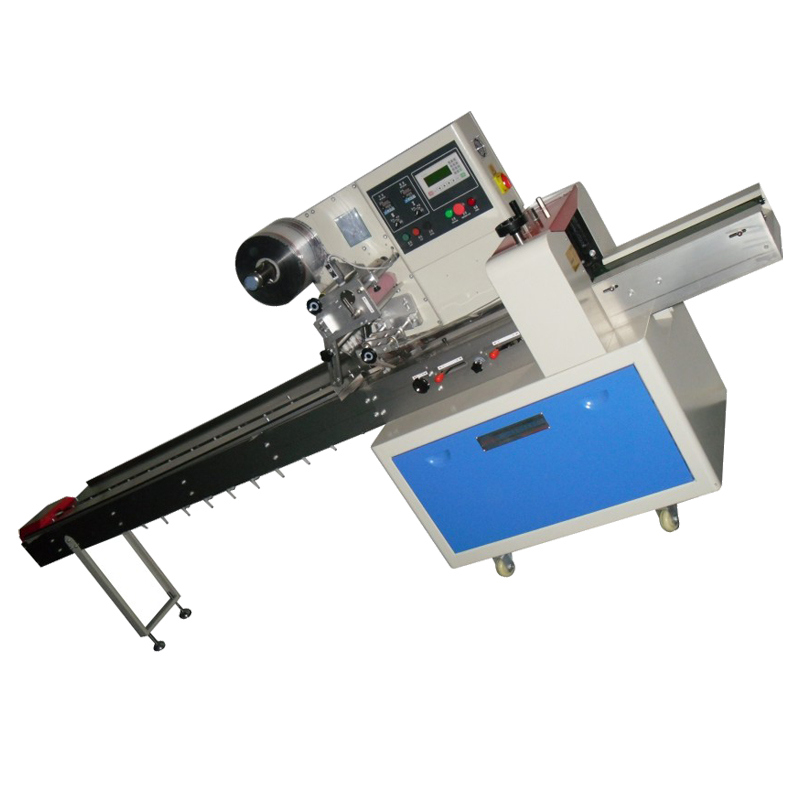

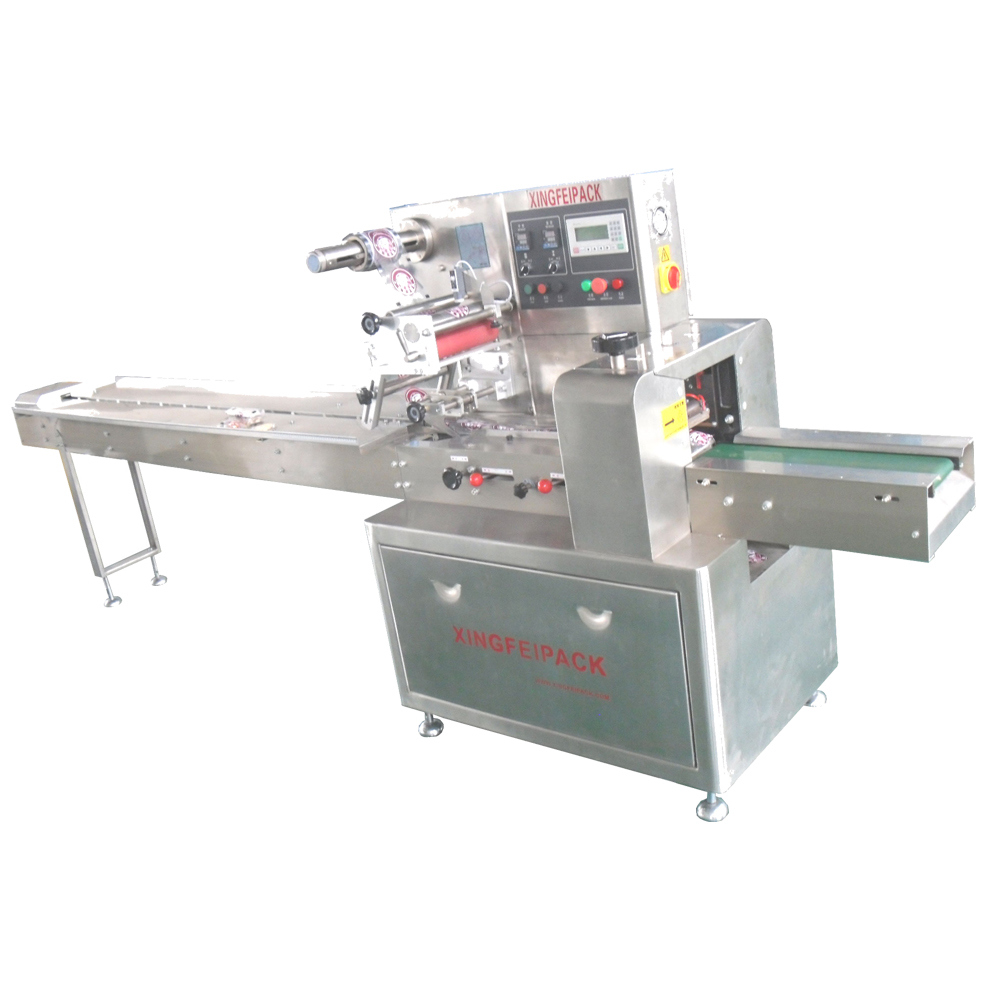

XF-Z250 Pillow Type Packing Machine
Description
XF-Z 250 automatic flow packing machine adopts simple driving system, which features reliable working and convenient maintenance. failure self-diagnose ensures failure display clearly. Separate PID control to temperature is suitable for various packing materials. All the controls are achieved by software and convenient for function adjusting and upgrading.
Application

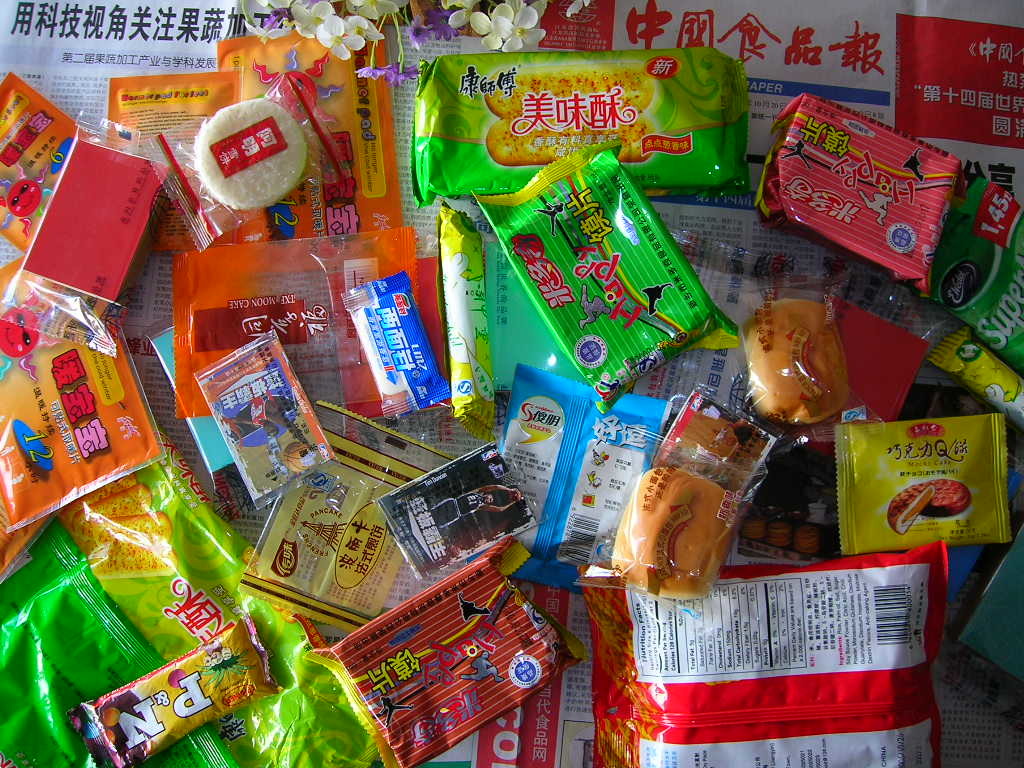

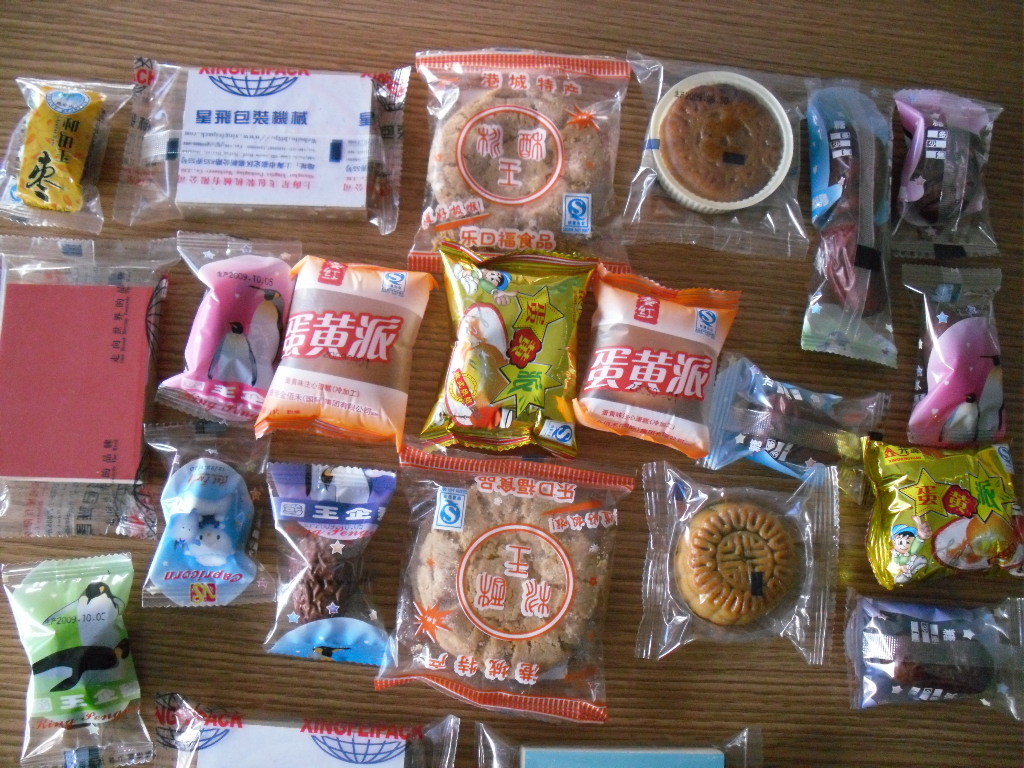

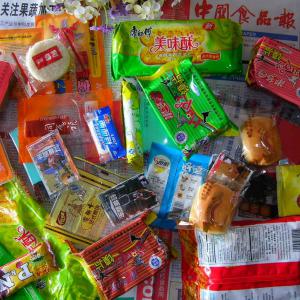

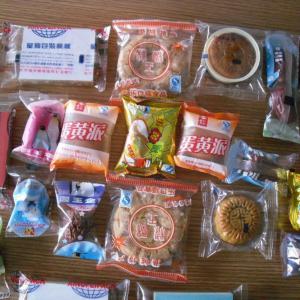

XF-Z 250 automatic flow packing machine is suitable for packing regular objects such as biscuit, egg pie, pastry, chocolate, bread, instant noodle, moon cakes, medicine, daily necessities, industrial parts, etc.
Features
1. Double transducer control and flexible bag length cutting are available, so operator needn't to adjust, which saves time and films.
2. High sensitivity optical electric color mark tracking and digital input cut position make the sealing and cutting more accurate.
3. Pillow packing equipment works with human-machine operation, which is convenient to set parameter.
III. Technical Parameter
Automatic Pillow Type Bag Flow Packing Machine (XF-Z 250)
Description
XF-Z 250 automatic flow packing machine adopts simple driving system, which features reliable working and convenient maintenance. failure self-diagnose ensures failure display clearly. Separate PID control to temperature is suitable for various packing materials. All the controls are achieved by software and convenient for function adjusting and upgrading.
Application
XF-Z 250 automatic flow packing machine is suitable for packing regular objects such as biscuit, egg pie, pastry, chocolate, bread, instant noodle, moon cakes, medicine, daily necessities, industrial parts, etc.
Features
1. Double transducer control and flexible bag length cutting are available, so operator needn't to adjust, which saves time and films.
2. High sensitivity optical electric color mark tracking and digital input cut position make the sealing and cutting more accurate.
3. Pillow packing equipment works with human-machine operation, which is convenient to set parameter.
III. Technical Parameter
| Model | 250 | 320 | 350 | 450 |
| Packaging speed | 40-230pcs/min | 40-230pcs/min | 30-200pcs/min | 30-150Pcs/min |
| Bag length(mm) | 45-280 | 65-330 | 65-330 | 130-450 |
| Bag Width(mm) | 30-110 | 50-160 | 50-160 | 50-180 |
| Film Width | Max 250mm | Max 320mm | Max 350mm | Max 450mm |
| Power | 220V, 50-60Hz, 2.6KVA | 220V, 50-60Hz, 2.6KVA | 220V, 50-60Hz, 2.6KVA | 220V, 50-60Hz, 2.6KVA |
| Dimension(mm) | 3770×670×1450 | 4020×745×1450 | 4020×745×1450 | 4020X800X1450 |
| Weight | 800Kg | 800kg | 800kg | 950Kg |
| Packing Material | PT/PE,BEOPP/PE,AL/PE and other heatable sealed laminated films etc. |

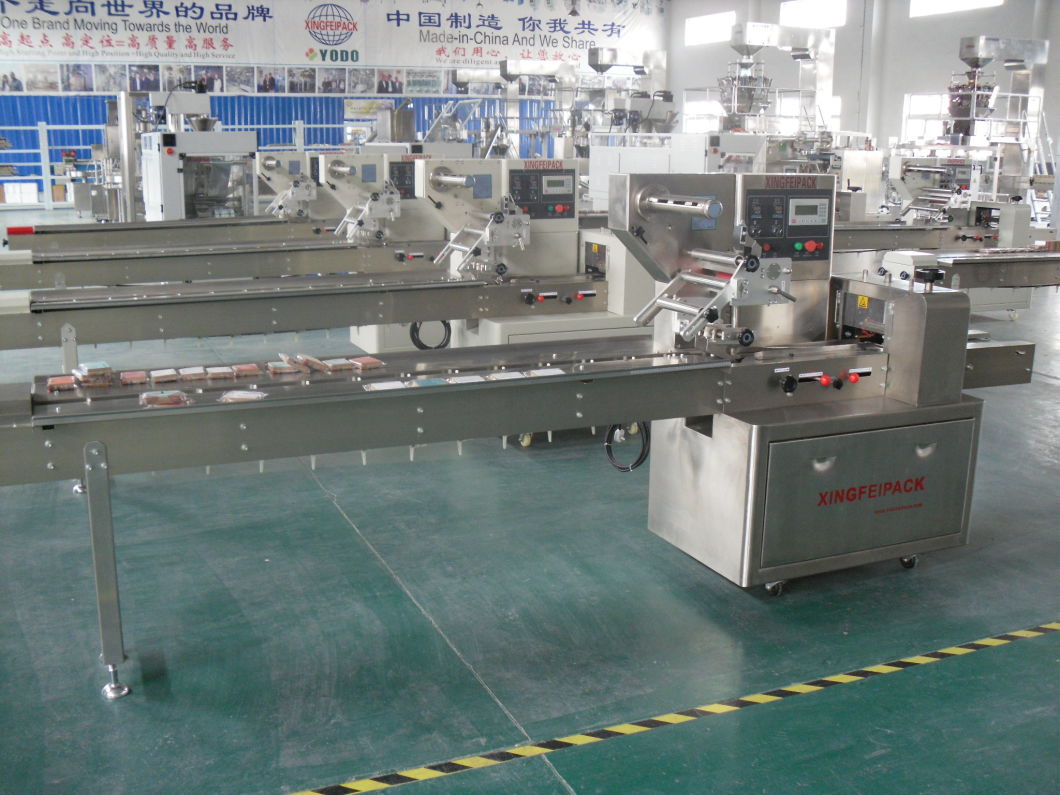

Automatic Pillow Type Bag Flow Packing Machine (XF-Z 250)
