Automatic Corn Flour Producing Machinery/Maize Flour Milling Machine

using dry peeling and degerming technology, it can produce different sizes of corn grits and flour at the same time.

Technical Feature

  • New
  • Henan, China (Mainland)
  • CL
  • FTA
  • Customized different
  • 380,110,220,400
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition
New
Place of Origin
Henan, China (Mainland)
Brand Name
CL
Model Number
FTA
Production Capacity
Customized different
Voltage
380,110,220,400
Power(W)
Customized different
Weight
Customized different
Dimension(L*W*H)
Customized different
Certification
ISO9001, BV Certification
Warranty
One year guarantee, whole life after-sale service
After-sales Service Provided
Engineers available to service machinery overseas
Technology
Dry method of milling, Dry peeling and degerming technology
Product
Low fat or de-fat corn grits and mea
Capacity
operation
Dust-free design, low power consumption, High efficiency, Noiseless
Suitable materials
wheat, corn, maize, millet, etc
Color
Customized different
Application
brewery, snack food, glucose, sugarhouse, etc
Product type
corn grits/corn flour/corn bran
Different mesh
8-120 mesh
Machine life
The machine can be used for more than 25 years.

DETAIL DESCRIPTION

30-200 T/D FTA complete set of corn processing





Product Description








using dry peeling and degerming technology, it can produce different sizes of corn grits and flour at the same time. Corn grits size can be customized as per customer’s need in order to meet various needs such as brewery, snack food, glucose, and sugarhouse. Thanks for the dry peeling and degerming technology, husks and germs collected at the end don’t need to be dried before used for animal feed.

FTA complete set maize milling machine can produce low fat corn grits, corm germ, corn flour and corn peel with different size at the same time. The throughput of the set varies from 30 tons to 200 tons per 24 hours. The whole assembly line consists of grain cleaning, maize peeling, maize milling and maize flour packing parts.

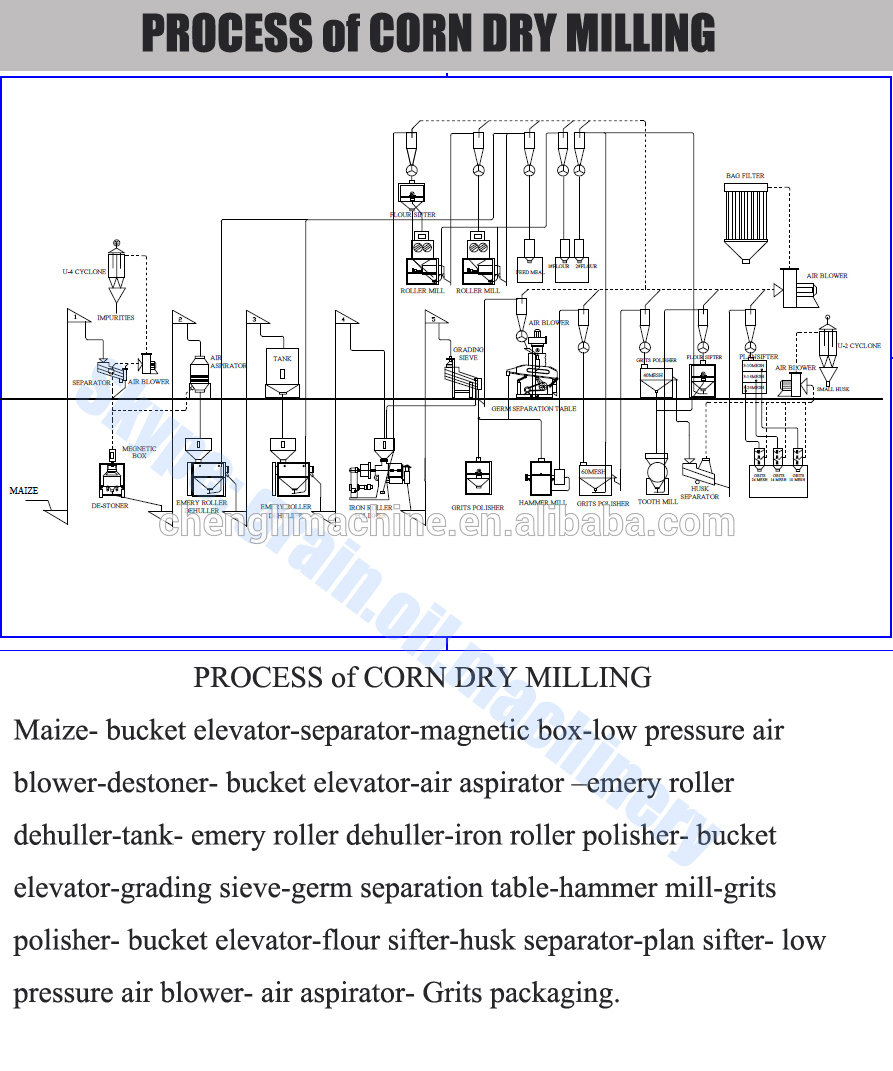

Process Flow:


Output Index:





Final products

Output yield

Fat content

Size

Corn grits

45-55%

<0.8%

Mesh 8-40

Corn flour/ corn meal

20-30%

<1.5%

Mesh 50-80

Animal feed/ maize peel

25%

High

Normal



Final products parameter

1. Sand content≤0.002%
2.Metal content≤0.003g/kg

3. Water content: 13.5-14.5%

4. Color and smell: regular

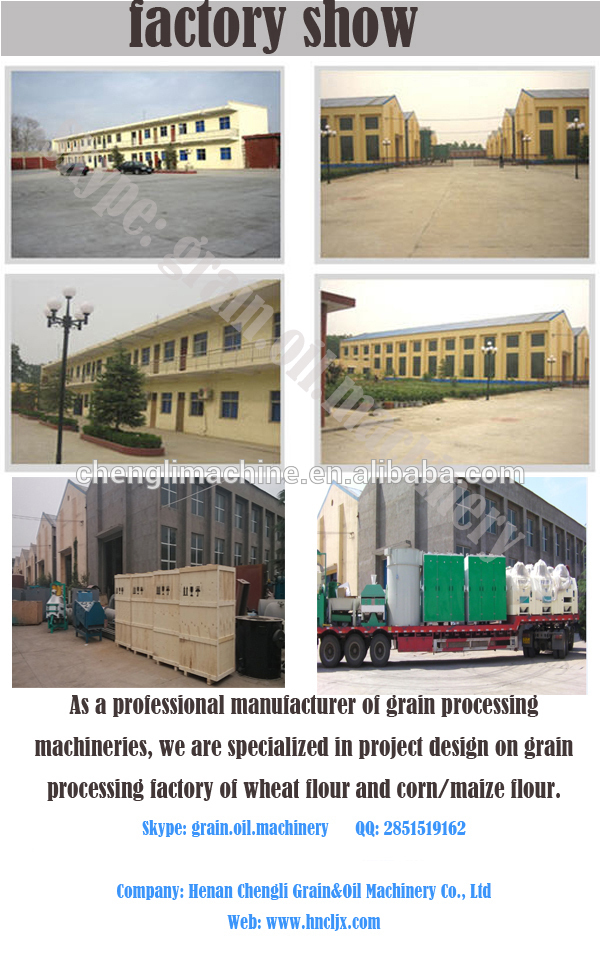

Company Information



Zhengzhou Chengli Grain &Oil Machinery Co., Ltd has decade’s years of researching, designing and producing experience, as a professional manufacturer specialized in producing grain processing machineries.CHENGLI is engaged specially in project design on grain processing factory of wheat flour and corn/maize flour. Our superior products are complete set of 30T-200T/D maize flour processing machine and wheat flour processing machine. In the past many years, our company has developed a series of new and high-tech products which were awarded with the titles of “Famous and Excellent Product” and “Trustworthy Quality”. We not only have a ready market in China, but also export our products to many countries and regions including Russia, Pakistan, Vietnam, Nepal, Ukraine and South Africa all around the world.

    With a manufacturing factory which covers more than 2000 square meters, CHENGLI aims to offer the first-rate design work, high quality machinery and perfect technology serving system to customers. We employee approximately 120 technicians to design, manufacture, install and commissioning turnkey projects for both the domestic and overseas market. We carry out a strict quality management system in accordance with ISO9001 requirements and provide a coordinated-process service including the plant layout, the process flow and the instillation technical guidance. Since 2008, we have been providing OEM service and customized products for our customers.



Our Services

  We are the professional manufacturer in China, our company can supply the technology and service on complete set of corn deep-processing machine, complete set of flour deep milling set, single corn peeling machine, single corn grinding machine, single corn polishing machine, single different kinds of pulverizer, single different kinds of sieve and plansifter, single centrifugal ventilator and other machinery parts. We can supply the different designs with different cost to meet different buyer's request.



We not only supply big comprehensive plants but also provide standalones for private users.



We concentrate on corn and wheat processing machine both in small sized and big sized line.



We are not only professinal in manufacturing but also professional in installment and maintainment after the sound operation.

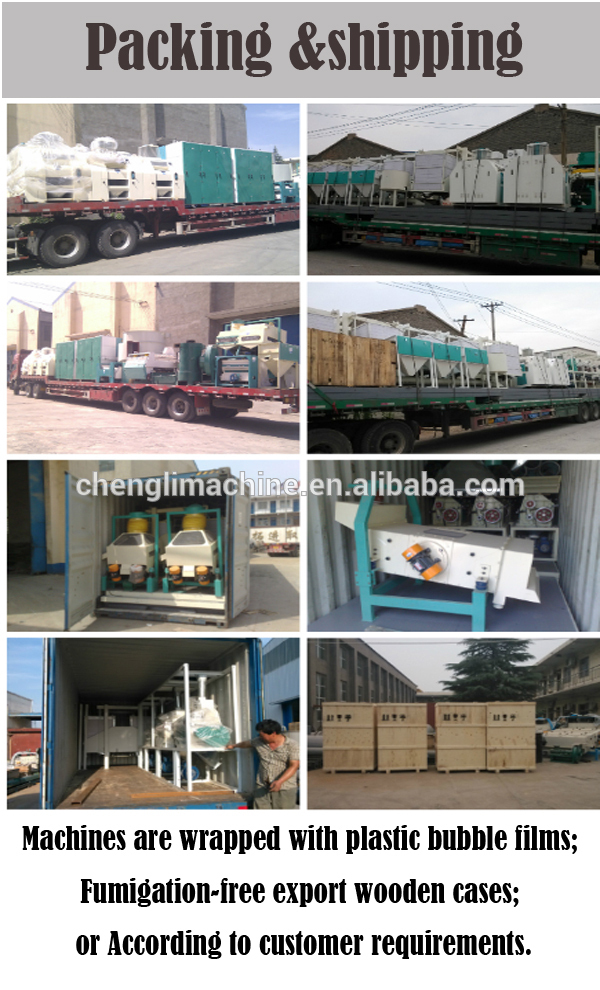

Packaging & Shipping
