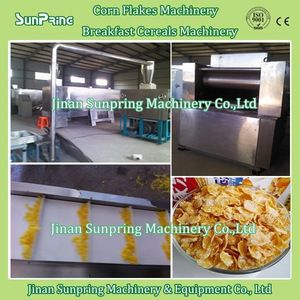

Corn Flakes Production Line Manufacturing Plant
a. Raw materials adopts peeled and degermed corn flour as raw material
b. Products it can be used to produce corn flakes, breakfast cereals, different kinds of snacks by adjusting the moulds from extrude
c. Capacity 150kg/h, 240kg/h, 300kg/h
d. Flow chart Mixing system---Extrusion system---Flaking system---Drying system---Sugar Spraying system ---Drying system---- Packing system
e. Voltage 380V/50Hz for three phases, 220V/50Hz for one phase in China, we can make it according to customers’ Local voltage according to different countries
f. Technical Parameters
Model | Installed power | Real power | Output | Dimension |
SP65 | 140kw | 90kw | 150kg/h | 28000x1200x2200mm |
SP70 | 160kw | 120kw | 200kg/h | 30000x1500x2200mm |
SP85 | 190kw | 140kw | 300kg/h | 35000x3500x4300mm |

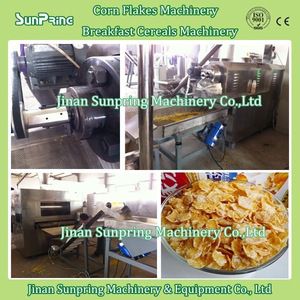

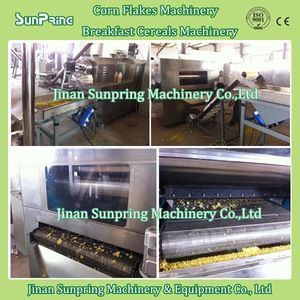

Corn Flakes Pictures
Famous Machine Brands For Your Choose
Auxiliary machine--Flaking Machine
The flake machine mainly consist of two roller. The roller is made by alloy and heat treatment on
surface. The roller is 1 meter long, diameter is half meter and each weight is 1 ton. When it working,
it create 40ton pressure. This great pressure will make pellets into flake. The thickness of flake depend on gap between two rollers.
At present, Our Company locks in 70% market share in China, and our products have been selling well to more than 90 countries like Germany, Australia, Ukraine, Malaysia, Indonesia, Syria, Philippine, Thailand, Romania, South America, Middle East, Africa and other countries or regions.

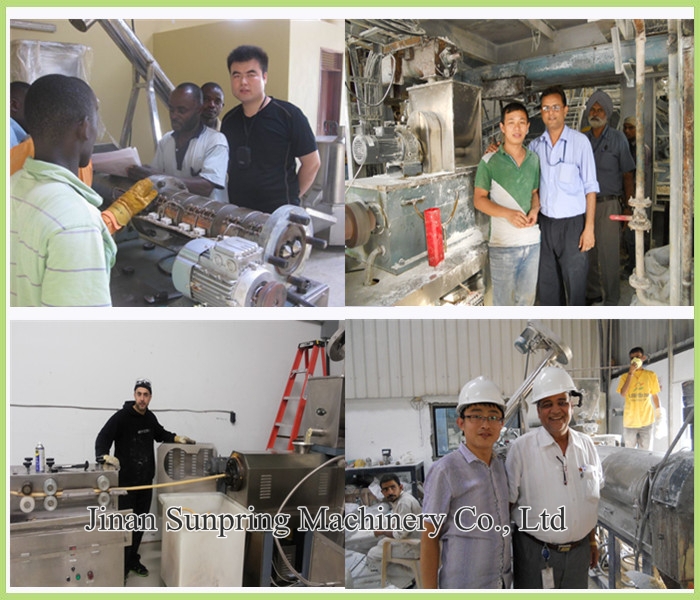

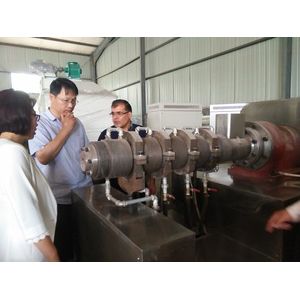

a. Customers’ visiting
b. Installation & commissioning in customer’s factory
We ever attended many domestic and international exhibitions in 2014
1). The size of a suitable warehouse for corn flakes production line
Normally, according to our experience, a space with 30×5×3M is enough for our whole production line. But consideration of raw material and final production warehouse, dressing room, pre-mix preparation room etc. You can design it according to your requirement.
2). Operator Needed: 3-5 Normally, one manager, two operator and one technician
3). Power Consumption: 120kw
4). Guarantee time: one year
5). We provide Turnkey Project
a. Provide factory layout according to your factory size in advance.
b. Provide the recipe when your esteemed company cooperate with us.
c. Before place the order, we invite you to visit us and make demonstration for you in workshop
d. Before delivery the machines, we invite you to inspect all the machines.
e. Installation and commissioning in your factory for 15days
6). Payment terms: 30% T/T as down payment, 70% by irrevocable L/C at sight or T/T before delivering
7). Delivery time: 40 days after receipt the deposit
