1. Description:

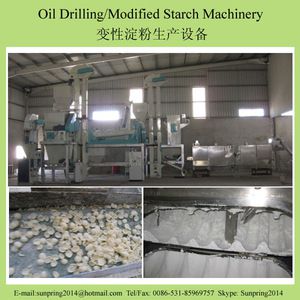

Modified starch/ pre-gelatinized starch extrusion machine can product Denatured Starch,

Pre-gelatinized starch is an effective and economical fluid loss agent in water based drilling fluids, which is a starch derivative. It is not bacterial degradation when at 120°C, environmentally

acceptable and non-toxic. Modified Starch can produce a thin, slick, tough filter cake and promotes faster penetration rates with reducer friction. It can be used in all kinds of drilling fluid system.

Pre-gelatinized starch is also sometimes "pregelatinized" to make them easier to dissolve during product manufacture. Modified starch is widely used in oil drilling, textile, paper and food industries.

a. Raw Materials: corn starch, cassava starch, potato starch

b. Products: oil drilling starch, Pre-gelatinized starch

c. Capacity: 200-400kg/h, 400-600kg/h

d. Flow chart: Mixing---Extrusion---Drying---Grinding---Blending—Packing

e. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

f. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function

g. Technical Parameters:

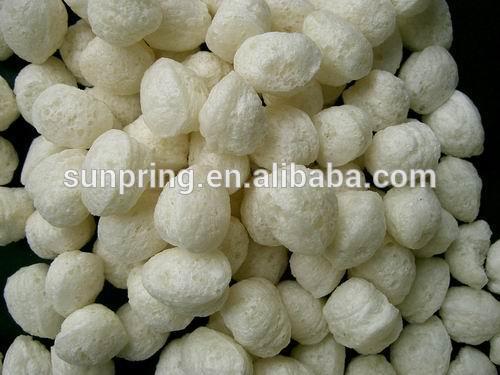

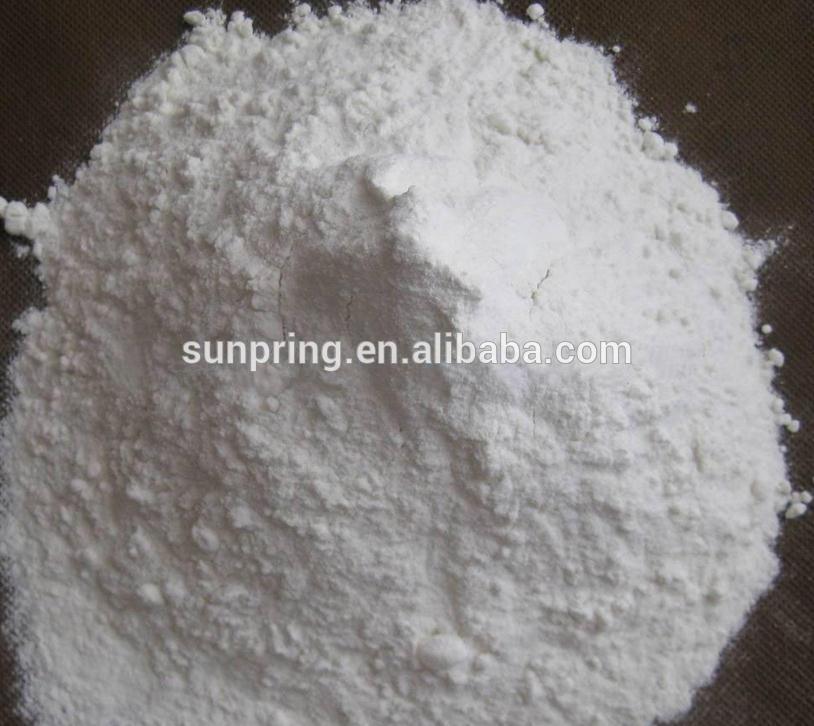

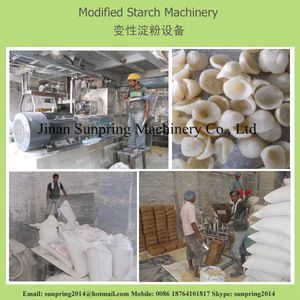

2. Modified Starch Products

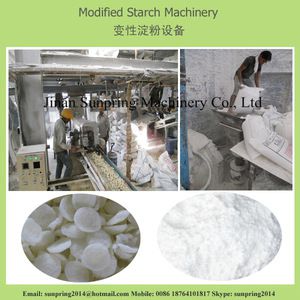

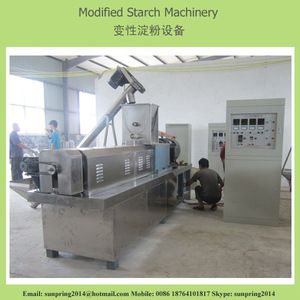

3. Modified Starch Machines

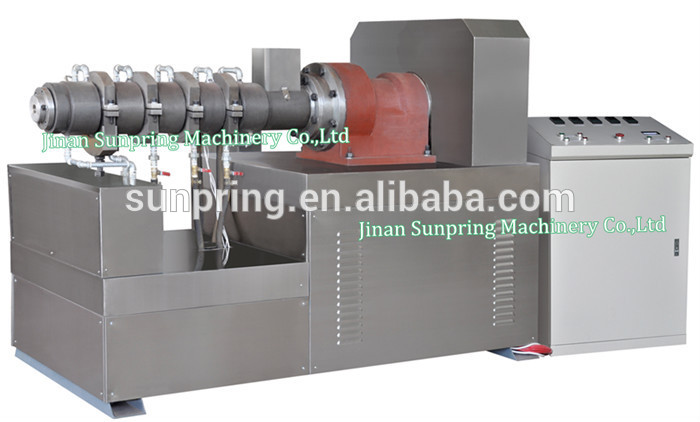

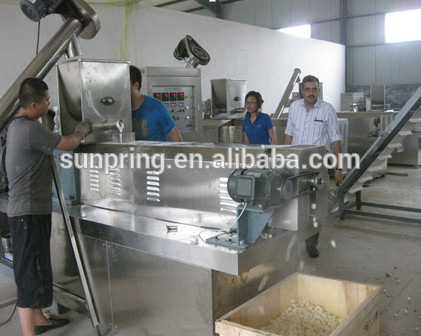

 SP-130 Single Screw Extruder with 400-600kg/h

A.Series of twin screw inflating extruder are consisting of feeding system, gear system and controlling system.

B. Consisting of feeding system, extruding system and cutting system, adopts frequency speed controlling with high automation and stable per formation.

C. Automatic lubricating, cooling, to guarantee the extruder running safely.

D. According to different material, to choose the relative single or double screw feeding system, the material should be uniformity and stable.

E. The screw is made by special technique, is able to bear grinding, steady and reliable, longer using life.

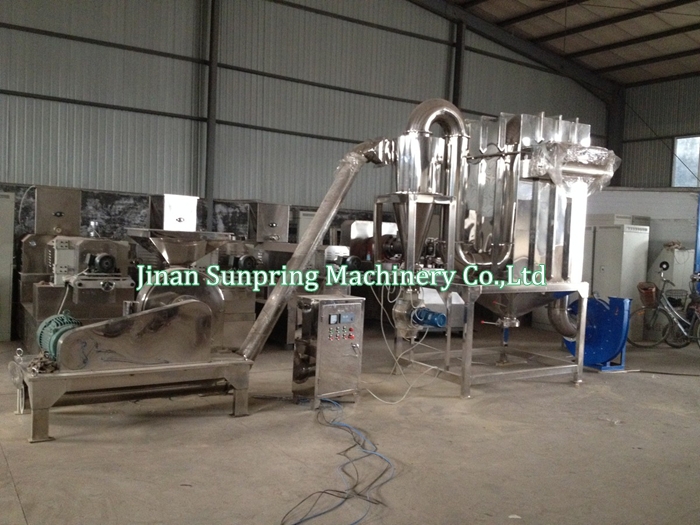

4. Pulverizer/ Milling System for Modified Starch

1. Stretch film packing

2. Fumigation-free wooden case packing

   At present, Our Company locks in 70% market share in China, and our products have been selling well to more than 90 countries, such as Germany, Australia, Ukraine, Malaysia, Indonesia,

Syria, Philippine,Thailand,Romania, South America,Middle East, Africa and other countries or

regions.

1.Customers visiting us

2.Engineers Installed Machines in customers' factory

 3.Reference customer's list

1). Operator Needed: 3-5

2). Guarantee time: one year

3). We provide Turnkey Project

      a. Provide factory layout according to your factory size in advance.

      b. Provide the recipe when your esteemed company cooperate with us.

      c. Before place the order, we invite you to visit us and make demonstration for you in workshop

      d. Before delivery the machines, we invite you to inspect all the machines.

      e. Installation and commissioning in your factory for 15days

4). Payment terms: 30% T/T as down payment, 70% by irrevocable L/C at sight or T/T before                    delivering.

5). Delivery time: 30-40 days after receipt the deposit, we have extruder, dryer and flaking machine in       workshop.
