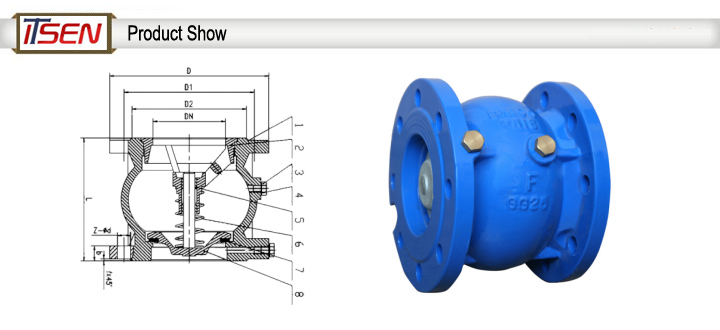

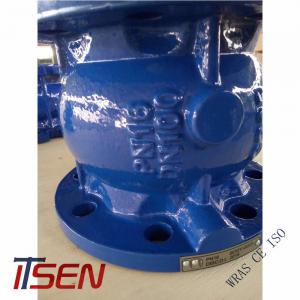

| DIN CAST IRON PN16 SILENT CHECK VALVE | ||
| MATERIALS | ||
| ITEM | PARTS NAME | MATERIAL |
| 1 | BODY | CAST IRON |
| 2 | GUIDE PULLEY | GGG40 |
| 3 | PLUG | BRASS |
| 4 | "O"RING | RUBBER |
| 5 | GUIDE SLEEVE | BRASS |
| 6 | SPRING | STAINLESS STEEL |
| 7 | GASKET | RUBBER |
| 8 | DISC | GGG40 |
| DIMENSIONS(mm) | ||||||||
| DN | L | D | D1 | D2 | b | Z-∮d | f | KG |
| 50 | 100 | 165 | 125 | 102 | 20 | 4-18 | 3 | 5.6 |
| 65 | 120 | 185 | 145 | 122 | 20 | 4-18 | 3 | 8.96 |
| 80 | 140 | 200 | 160 | 138 | 22 | 8-18 | 3 | 12.26 |
| 100 | 170 | 220 | 180 | 158 | 24 | 8-18 | 3 | 14.8 |
| 125 | 200 | 250 | 210 | 188 | 26 | 8-18 | 3 | 23.3 |
| 150 | 230 | 285 | 240 | 212 | 26 | 8-23 | 3 | 31.2 |
| 200 | 288 | 340 | 295 | 268 | 30 | 12-23 | 3 | |
| 250 | 354 | 405 | 355 | 320 | 32 | 12-27 | 3 | |
| 300 | 410 | 460 | 410 | 378 | 32 | 12-27 | 4 |
Q. Do you provide samples?Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.
Q. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear
their own the cost.
Q. Can I request to change the form of packaging and transportation?
A: Yes, we can change the form of the packaging and transportation as per your request, but you have to bear their own costs incurred during this period and the spreads.
Q. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.Or it is 15-20 days if the goods are not in stock,it is according to your quantity.
Q C an I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
Q. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q. What is your payment terms?
A: Payment<=1000USD,100% in advance.
Payment>=1000USD,30% T/T in advance,banlance before shippment.
Gate valve:
1.Standard: DIN3352 F4 / DIN 3352 F5 / BS 5163 / BS 4504 / ANSI,ext
2.Seal: Metal seated gate valve,Rubber coat gate valve
3.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
4.Connection:Flange end / Socket end / Kinfe / Threaded end / Wafer Type,ext
5.Pressure:PN10/16/25
Butterfly valve:
1.Type:Wafer type butterfly valve / lug type butterfly valve/flange type butterfly valve(concentric and eccentric) /u type butterfly valve/grooved butterfly valve,ext
2.Pressure:PN10/16/25
3.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
4.Standard:DIN/BS/ANSI,ext
Check valve:
1.Type:Wafer(dual)check valve/Swing check valve/Slient check valve/Ball check valve/lift check valve,ext
2.Pressure:PN10/16/25
3.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
4.Standard:DIN/BS/ANSI,ext
Ball valve:
1.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
2.Standard:ANSI/JIS
3.Type:Flange ball valve/Tee ball valve/Welding ball valve,ext
Globe valve:
1.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
2.Type:Globe valve / Lift globe valve,ext

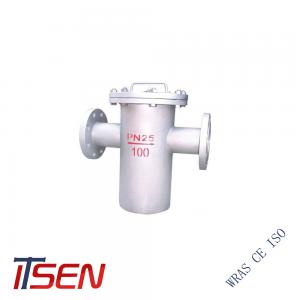

Strainer:
1.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
2.Type: Y strainer / T strainer,ext
Other valves:
Foot valve,Marine Valve,ext
