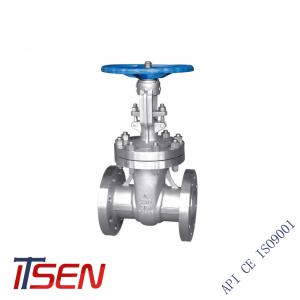

| Production enforce standard | |||||||||
| Design and Manutacture | Face to face | Flange Dimension | Butt welding | Inspection and test | |||||
| ANSI B16.34/BS1873 | ANSI B16.10 | ANSI B16.5 | ANSI B16.25 | API 598 | |||||
| Chief property and specification | |||||||||
| Normal Pressure | Shell test | Water seal test | Air seal test | ||||||
| LB | Mpa | Lbf/in² | Mpa | Lbf/in² | Mpa | Lbf/in² | |||
| 150 | 3.1 | 450 | 2.2 | 315 | 0.5-0.7 | 60-100 | |||
| 300 | 7.8 | 1125 | 5.6 | 815 | |||||
| 600 | 15.3 | 2225 | 11.2 | 1630 | |||||
| 900 | 23.1 | 3350 | 16.8 | 2440 | |||||
| 1500 | 38.4 | 5575 | 28.1 | 4080 | |||||
| 2500 | 64.6 | 9367 | 47.4 | 6873 |
| Material for main parts | |||||
| Body/Cover/Disc | Stem | Sealing Face | Sealing shim | Packing | Suitable medium |
| WCB | 2 CR13 | 13Cr STL with body material PTFE Nylon | 13Cr/Enhanced Flexible 1Cr13 /Flexible graphite SFB-208 Soft steel F304 F316 F304L F316L | Flexible graphite Enhanced Flexible graphite SFB/260SFP/ 260PTFE | Water Steam Petroleum Products |
| WC1 | 38CrMoAl 25Cr2Mov | ||||
| WC6 | |||||
| WC9 | |||||
| C5 C12 | |||||
| CF8 | F304 | Nitric acid Aceic acid | |||
| CF3 | F316 | ||||
| CF8M | F304L | ||||
| CF3M | F316L |
| Main external and connection dimension | |||||||||
| Size | L | D | D1 | D2 | b | z-d | Do | H(open) | |
| 2 | in | 7 | 6 | 4.75 | 3.62 | 0.75 | 4-0.75 | 8 | 16.1 |
| mm | 178 | 152 | 120.5 | 92 | 19.1 | 4-19 | 200 | 409 | |
| 3 | in | 8 | 7.5 | 6 | 5 | 0.94 | 4-0.75 | 10 | 20 |
| mm | 203 | 90 | 152.5 | 127 | 23.9 | 4-19 | 250 | 570 | |
| 4 | in | 9 | 9 | 7.5 | 6.19 | 0.94 | 8-0.75 | 10 | 23.2 |
| mm | 229 | 229 | 190.5 | 157 | 23.9 | 8-19 | 250 | 590 | |
| 6 | in | 10.5 | 11 | 9.5 | 8.5 | 1 | 8-0.88 | 12 | 24.8 |
| mm | 267 | 279 | 241.5 | 216 | 25.4 | 8-22 | 300 | 630 | |
| 8 | in | 11.5 | 13.5 | 11.75 | 10.62 | 1.12 | 8-0.88 | 13.88 | 37.8 |
| mm | 292 | 343 | 298.5 | 270 | 28.5 | 8-22 | 350 | 960 | |
| 10 | in | 13 | 16 | 14.25 | 12.75 | 1.19 | 12-1 | 15.7 | 45.6 |
| mm | 330 | 406 | 362 | 324 | 30.2 | 12-25 | 400 | 1158 | |
| 12 | in | 14 | 19 | 17 | 15 | 1.25 | 12-1 | 17.7 | 5430 |
| mm | 356 | 483 | 432 | 381 | 31.8 | 12-25 | 450 | 1378 | |
| 14 | in | 15 | 21 | 18.75 | 16.25 | 1.38 | 12-1.12 | 19.7 | 60.75 |
| mm | 381 | 533 | 476.5 | 413 | 35 | 12-29 | 500 | 1543 | |
| 16 | in | 16 | 23.5 | 21.25 | 18.5 | 1.44 | 16-1.12 | 23.6 | 68.4 |
| mm | 406 | 597 | 539 | 470 | 36.6 | 16-29 | 600 | 1738 | |
| 18 | in | 17 | 25 | 22.75 | 21 | 1.56 | 16-1.25 | 23.6 | 74.1 |
| mm | 432 | 635 | 578 | 533 | 39.7 | 16-32 | 600 | 1959 | |
| 20 | in | 18 | 27.5 | 25 | 23 | 1.69 | 20-1.25 | 26.8 | 87.2 |
| mm | 457 | 698 | 635 | 584 | 42.9 | 20-32 | 680 | 2214 | |
| 24 | in | 20 | 32 | 29.5 | 27.25 | 1.88 | 20-1.38 | 29.9 | 102.3 |
| mm | 508 | 813 | 749.5 | 692 | 47.7 | 20-35 | 760 | 2599 | |
| 30 | in | 24 | 38.75 | 36 | 33.75 | 2.94 | 28-1.38 | 36 | 125.3 |
| mm | 610 | 985 | 914 | 857 | 74.5 | 28-35 | 915 | 3183 | |
| 36 | in | 28 | 46 | 42.75 | 40.25 | 3.56 | 32-1.62 | 36 | 147 |
| mm | 711 | 1170 | 1086 | 1022 | 90.5 | 32-41 | 915 | 3737 |
