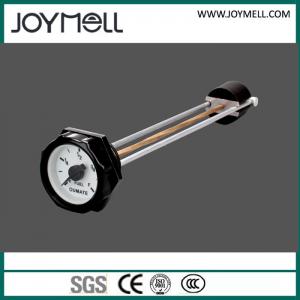

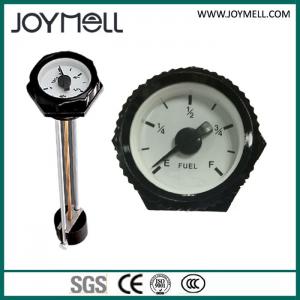

Fuel tank level gauge for Generator engines
Application:
* The mechanical gauge integrates the function of level measuring and level display level without power supply. High and low alarm function can be added to the gauge according to customer's requirement.
* It largely applies to fuel tanks of generators and engines. It also applies to water tanks. Not recommended for vehicles.
Description:
Specificaitons:
Q&A:
*Trade Terms: FOB ,CIF ,CFR,EXW,CNF
*Payment terms: T/T,Paypal ,Western Union
*Payment conditions: New customer at least 50% deposit in advance,50% balance before shipping.
*Delivery time: ormally Within 7days. Sometimes with stock.
*Packing: Carton box. Shipping mark per your requirement
*Shipping: By sea,by air and by express delivery, etc.
*Warranty: 2 years after leave factory
*Contact: www.joymell.com
*Company introduction: Joymell is factory for Power supply ,Surge protector, ATS, Enclosure, Cable glands, Power supply, Current transformer etc. Providing customers very competitive sources, and can be your sourcing agent in China.
Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
Our Customers mainly in Europe, Australia, Africa, Asia, etc. Many countrie
Application:
* The mechanical gauge integrates the function of level measuring and level display level without power supply. High and low alarm function can be added to the gauge according to customer's requirement.
* It largely applies to fuel tanks of generators and engines. It also applies to water tanks. Not recommended for vehicles.
Description:
| Operating temperature: -40~85ºC |
| Integrated precison: 5% |
| Main material: Aluminum alloy |

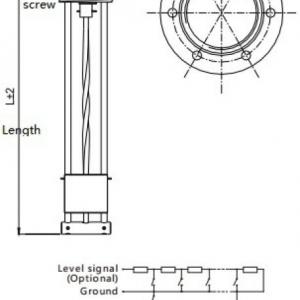

| Threading types: M45*2 or BSP 1 1/2 |
| Flange(Optional): Standard 6-hole, welding flanges |
| Screwing torque: 300~400N.m |
| Length range: 120~940mm |
| Alarm switch: Optional high or low level alarm switch can be set at 9/10 or 1/10 level. Alarm current is <500mA. The alarm point can be set at the level of 9/10 and 1/10. |
| Signal output(optional): the product can output 9 resistance signals, resistance range can be customized |
Specificaitons:
| Type | Length(mm) | Main body thread | Alarm | Flange |
| MG | 120 | M45*2 | NO | 6Hole or welding |
| 150 | M45*2 | |||
| 200 | M45*2 | |||
| 250 | M45*2 | |||
| 300 | M45*2 | |||
| 350 | M45*2 | |||
| 400 | M45*2 | |||
| 450 | M45*2 | |||
| 500 | M45*2 | |||
| 550 | M45*2 | |||
| 600 | M45*2 | |||
| MG | 120 | BSP1 1/2 | NO | |
| 150 | BSP1 1/2 | |||
| 200 | BSP1 1/2 | |||
| 250 | BSP1 1/2 | |||
| 300 | BSP1 1/2 | |||
| 350 | BSP1 1/2 | |||
| 400 | BSP1 1/2 | |||
| 450 | BSP1 1/2 | |||
| 500 | BSP1 1/2 | |||
| 550 | BSP1 1/2 | |||
| 600 | BSP1 1/2 | |||
| MGS | 120 | M45*2 | 10-180Ω High and low alarm | |
| 150 | M45*2 | |||
| 200 | M45*2 | |||
| 250 | M45*2 | |||
| 300 | M45*2 | |||
| 350 | M45*2 | |||
| 400 | M45*2 | |||
| 450 | M45*2 | |||
| 500 | M45*2 | |||
| 550 | M45*2 | |||
| 600 | M45*2 |
