Electric Power Outdoor Stainless Steel Cabinet for Switches

PRIMARY PARAMETERS

Model NO.

JMX

Application Range

Power Plant, Home, Factory, City Power, etc.

Shell Material

Metal(Stainless Steel, Cold-Rolled Steel, etc)

Shell Protection Grade

IP66, IP65, IP55

Brand

Joymell

Model

Jmx Power Enclosure

Material

Normally Cold Rolled Steel, Can Others

Plate

with Plate

Lock

with Lock

Thickness

Normally 0.8, 1.0, 1.2, 1.5mm, Per Customers

Color

Customized, Normllay Grey Ral7032

Protection

IP66 to En60529

MOQ

1PCS If Normal Size

Trademark

Joymell, or netural, or customer brand

Transport Package

Carton Box

Specification

Size can be customized

Origin

China

HS Code

8537109090

DETAIL DESCRIPTION

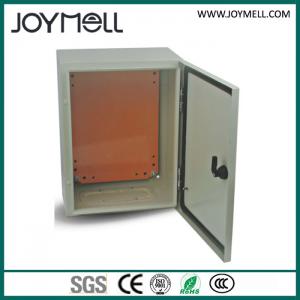

Electric Power Outdoor Stainless steel Cabinet for switches

1.Metal Power Distribution box introduction:
---Application:
   Used in Generator system as Generator cabinet, power plant, home or city distribution box with IP66 waterproof grade, etc...
---Standard configuration:
   Enclosure and door
   Mounting plate
   Bar Lock
   Polyurethane door seal
   Cable gland plate and gasket
---Degree of protection:
   IP66 to EN60529
---External mechanical impact resistance:
   IK10
  Surface treatment:
  Textrured epoxy polyester powder coating
---Material and color:
   Body and front door:Cold roll steel to paint in RAL7032
---Mounting plate:
   Galvanized steel or plain steel to paint in RAL2004 smooth finish

2. Sizes:  Sizes can be customized

Model	H (mm)	W(mm)	D(mm)	Other sizes can be customized. Color can be customized
JMX403015	400	300	150
JMX403020	400	300	200
JMX404020	400	400	200
JMX503020	500	300	200
JMX503025	500	300	250
JMX504020	500	400	200
JMX504025	500	400	250
JMX504030	500	400	300
JMX604020	600	400	200
JMX604025	600	400	250
JMX605020	600	500	200
JMX605025	600	500	250
JMX606025	600	600	250
JMX606030	600	600	300
JMX705025	700	500	250
JMX705030	700	500	300
JMX806025	800	600	250
JMX806030	800	600	300
JMX1006025	1000	600	250
JMX1006030	1000	600	300
JMX1008025	1000	800	250
JMX1008030	1000	800	300
JMX1208025	1200	800	250
JMX1208030	1200	800	300

3.Packing: Carton Packing.

4. Production line and delivery time:
Normal sizes with some stock, we have big capacity can provide fast delivery time 3-7days around. If a 40HQ container abut 10days.

5. Other product series:

Manual transfer switch	1A~1600A, 3P/4P.
Automatic Transfer switch	1A~3200A, 2P/3P/4P.
Metal power distribution box	Metal box, size can color can be customized.
Plstic box	Different ways, competitive price, welcome to contact
Surge protector	B,C,D Class, AC, DC type you can choose. Different types and discharge current you choose.
Power supply	Hot used in Gepenerator system, 120W 12/24V. And other types
Current transformer	Different size you can choose, quality guarantee, hot used in Generator cabinets.
Push button	Metal or plastic, different types for power cabinet.

6. Q&A:
1) Q:Your company ? And products?
     A:   Joymell is factory for ATS, Enclosure/Distriution box, Power supply, Current transformer etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
2)  Q:   What's the shipment?
      A:   We have good forwarder cooperated over 7years, they help us import and export . For small package orders, suggest to use by Express.
3)   Q:   Your address ?
      A:    Locates in Zhejiang province, Baixiang town, Chandong industrial zone.
4)   What's the ATS guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
5)    What's about MOQ? Delivery time ?
       A: 1pcs for ATS. Normally less than 1000A ATS with stock, quick support.
6)    What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.
7)    What's your contact information ?
         A: Website: www.joymell.com,   welcome to contact us anytime.
Welcome your inquiry ^!^
