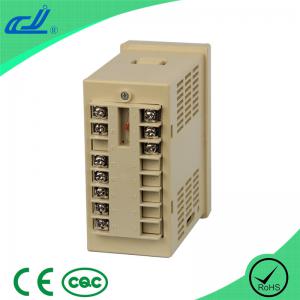

Technical standard:
single signal input: K,E,J,T,B,S,PT100,CU50
1.Measure range:K(0~2000ºF)
2.display precision:±1%F·S
3.Control method:PID,ON-OFF control(when P=0 availability)
4.Relay output contact capacity:resistance load 5A;
5.Working power:AC 90V~242V 50/60Hz power:<4W
6.Working condition:Environment Temperature: 0 to 50ºC, Humidity: ≤85%RH
9. External dimension(mm): 48× 96× 90 Installation hole: 44× 92

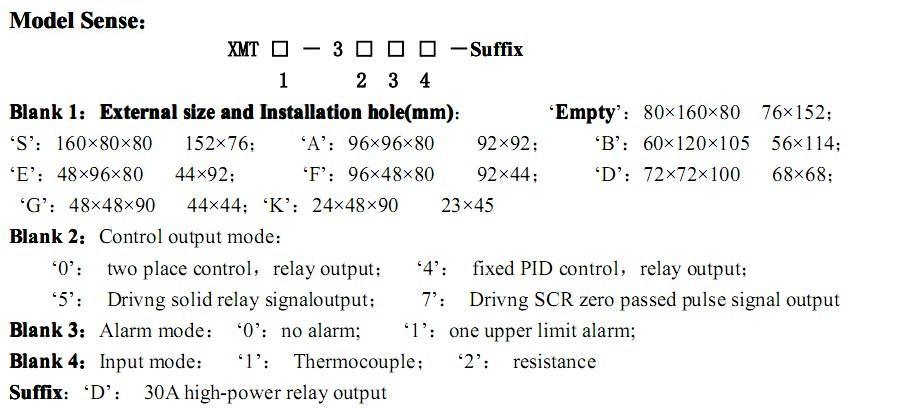

Model Sense
Connection scheme:
Packaging Details
single signal input: K,E,J,T,B,S,PT100,CU50
1.Measure range:K(0~2000ºF)
2.display precision:±1%F·S
3.Control method:PID,ON-OFF control(when P=0 availability)
4.Relay output contact capacity:resistance load 5A;
5.Working power:AC 90V~242V 50/60Hz power:<4W
6.Working condition:Environment Temperature: 0 to 50ºC, Humidity: ≤85%RH
9. External dimension(mm): 48× 96× 90 Installation hole: 44× 92
Model Sense
Connection scheme:
| NO. | code | name | range | explain | default |
| 0 | SP | Appointed value | All range | Press∧or∨key long time to setting | - |
| 1 | AL | Upper limit alarm | All range | When measure value>setting value ,it has alarm output | - |
| 2 | SC | Measure error | ±20.0 | Measuring value can be modified through increasing or decreasing this data | 0 |
| 3 | P | proportion | 0~125 | Proportion area = P x 20, When the P↑, proportion function↓, clash↓, but too little will add the heating time When P=0, the instrument is ON/OFF control | 8 |
| 4 | I | Integral time | 0~999S | Integral time too big will leave something the system , if too little it will have | 240 |
| 5 | d | Differential time | 0~250S | - | 30 |
| 6 | t | Control cycle | 1~120S | - | 10 |
| 7 | Hy | Deadband | 0.1~50.0 | ON/OFF control only availability | 1.0 |
