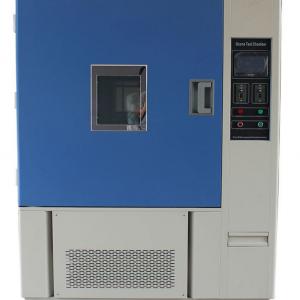

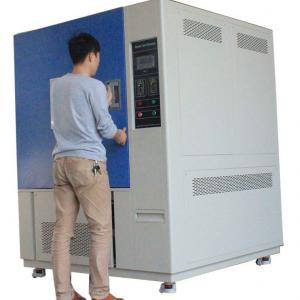

1. Product Name: Automatic Control Simulated Ozone Test Instrument with Ozone Generator
2. Standard Features:
Automatic control and supply ozone gas
Equipped with ozone generator
Temperature from 0ºC to 100ºC
Relative humidity from 30%~98%R.H
Ozone concentration can be adjusted from 0 to 1000PPHM
Dynamic sample holder
3. Main Technical Parameter
| Model | OC-100 | OC-250 | OC-500 | OC-800 | OC-010 |
| Internal dimensions (mm) | 400*500*500 | 600*600*700 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
| Overall dimensions (mm) | 860*1050*1620 | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 | 1500*1550*2110 |
| Diameter of holder (mm) | Flat shelf | 400 | 600 | 700 | 900 |
| Length of each side (mm) | Flat shelf | 180 | 220 | 350 | 460 |
| Temperature range | 0ºC~100ºC | ||||
| Humidity range | 30% - 98%R.H | ||||
| Temperature fluctuation | ±0.5ºC | ||||
| Speed rate for cooling | Environmental conditional ~ 0ºC within 20 min. | ||||
| Timing range | 0~999 hours | ||||
| Ozone concentration | 1~1000PPHM (Adjusted) | ||||
| Sample holder rotate speed | 0~10 r/min (adjustable) | ||||
| Clamps tensile stretch | 5%~35% | ||||
| Max. ozone concentration | 120gO3/m³ | ||||
| Ozone output | 3.5gO3/h ((oxygen input, flow rate 100L/h) | ||||
| Standard | ASTM D 1149; ASTM D1171, IEC60811-403 |
4. Design and Construction:
Test area and sampler holder
Ozone test chamber is for testing of elastomers.
Test area is made of stainless-steel.
Equipped with dynamic sample holder.
Ozone generator
Ozone test chamber equipped with ozone generator to supply ozone gas.
Automatic control and supply ozone gas.
Ozone concentration: 1~1000PPHM (Adjusted).
Control Operation
Programmable color display touch screen controller
Program: 100 groups in 999 sections; RS-232 interface
PC Link with software.
Control Temperature, humidity and Ozone concentration on controller.
Turning the round button to control holder rotate speed and clamps tensile stretch.
Ozone Exhaust Device
After completed Ozone testing, click "Exha" button to exhaust ozone from test area to this exhaust device.
This absorbs ozone, to make workplace clean and safe.
5. About US:
Xi'an LIB environmental simulation industry is a manufacture and exporter of climatic test chambers in China, and have over 8 years overseas market in test chambers to more than 25 countries.
LIB adhered to "Quality", "Service", and "Trust".
LIB main products are
Temperature and humidity climatic test chamber
Thermal shock chamber
Salt spray test chamber & CCT
IP test chambers
Weathering test chambers
Ozone test chamber
Sulfur dioxide corrosion test chamber
Drying Oven
Walk-in chamber
LIB Industry undertakes standard and customized climatic chamber projects, we involve with designing, manufacturing, installation, commissioning, service, maintenance and calibration, pls contact us, we will provide the best solution to you.
Service & Support
Inquiry and consulting support
Offering quotation and brochure
Provide test solutions
Visiting our factory
Inspection and acceptance
3 years warranty support
lifelong follow-up services.
Instlation and training
Response within 24 hours
Send engineers to customer place
Why Us
Quality Guarantee
We control quality from the materials, electronic parts,accessories and many assembly parts of the products.
Third Party Inspection
All our test chambers accept third party inspection.
3 Years Warranty
Provide service of training, installation,operation and calibration, and engineers on site.
Professional Team
Our elite team provides professional solutions, right equipments, accurate answers to worldwide customers.
More Equipment
