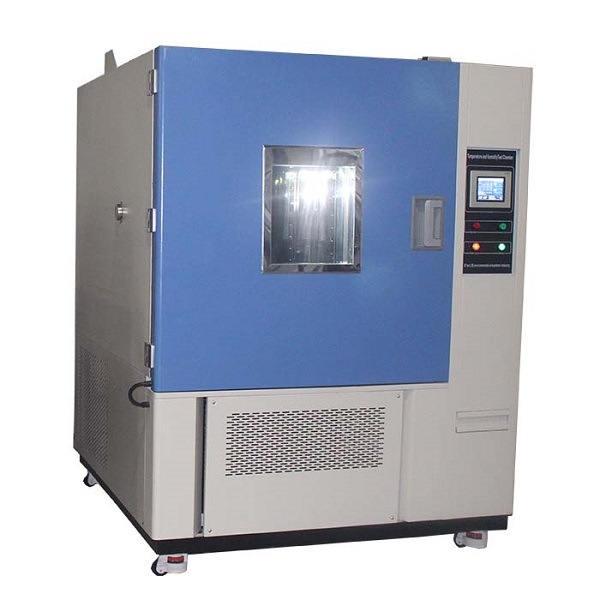

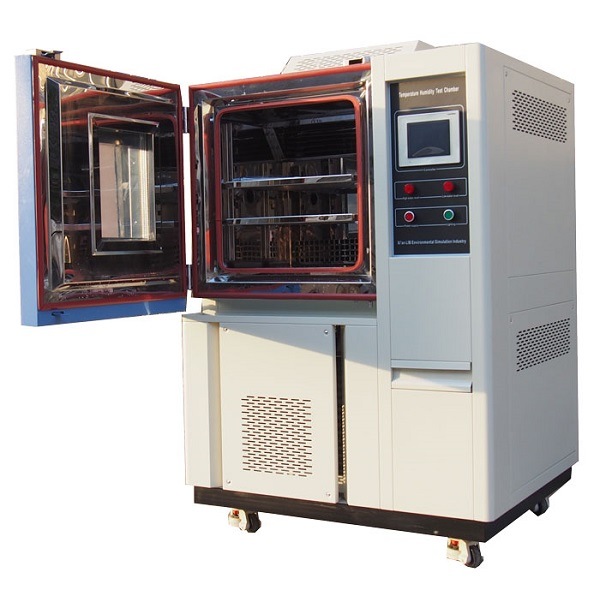

IEC 60068 Temperature Humidity Control Test Instruments
Performance:
* High Temperature & High Humidity Test
* High Temperature & Low Humidity Test
* Low Temperature & High Humidity Test
* Low Temperature & Low Humidity Test
* High Temperature Test
* Low Temperature Test
* Reach to -86 degree low Temperature Test
* Long time 85 degree/85% RH Test
Technical Parameters:
Key Points:
Air Circulation
Air circulation fans in the working volume of the chamber.
The number of air circulation fans is three.
The real wall of test area with chip-type wind board, air flowing out from top of wind board which control air direction, and return into air inlet to achieve air circulation.
Cooling System
Air cooling system.
Cooling unit is French TECUMSEH compressor.
Double-Stage refrigerating unit
Environment friendly refrigerant R404A & R23
Humidification & Dehumidification System
External isolation, stainless steel surface evaporation humidifier
Automatic water supply, Water purification system, Water saving
Package Information:
Our Services:
Our Company:
Xi'an LIB environmental simulation industry is a manufacture and exporter of climatic test chambers in China, and have over 8 years overseas market in test chambers to more than 25 countries.
LIB adhered to "Quality", "Service", and "Trust".
LIB main products are
Temperature and humidity climatic test chamber
Thermal shock chamber
Salt spray test chamber & CCT
IP test chambers
Weathering test chambers
Ozone test chamber
Sulfur dioxide corrosion test chamber
Drying Oven
Walk-in chamber
Performance:
* High Temperature & High Humidity Test
* High Temperature & Low Humidity Test
* Low Temperature & High Humidity Test
* Low Temperature & Low Humidity Test
* High Temperature Test
* Low Temperature Test
* Reach to -86 degree low Temperature Test
* Long time 85 degree/85% RH Test
Technical Parameters:
| Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
| Internal dimension D*W*H (mm) | 450*450*500 | 500*600*750 | 800*700*900 | 800*1000*1000 | 1000*1000*1000 |
| Overall dimension (mm) | 1050*880*1440 | 1050*1020*2000 | 1320*1320*2170 | 1470*1520*2315 | 1670*1520*2315 |
| Technical structure | |||||
| Temperature range | -20ºC~+150 ºC | ||||
| Low type | : -40ºC :-60ºC : -70ºC | ||||
| Humidity range | 20% ~ 98% RH | ||||
| Temperature fluctuations | ± 0.5 ºC | ||||
| Temperature deviation | ± 2.0 ºC | ||||
| Humidity deviation | ± 2.5% RH | ||||
| Heating rate | 3 ºC / min | ||||
| Cooling rate | 1 ºC / min | ||||
| Control system | |||||
| Controller | Programmable color touch-screen controller | ||||
| Controller presence languages are English,German,French,Russian,Spanish,Korean,Japanese. (Choose the language you need) | |||||
| PC Link with software, R-232 interface | |||||
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | ||||
| Temperature Resolution | ± 0.001 ºC | ||||
| Humidity sensor | Dry and wet bulb sensors | ||||
| Humidity Resolution | ± 1%RH | ||||
| Heating system | Independent Nichrome electronic heating system | ||||
| Cooling system | French TECUMSEH compressor | ||||
| Humidification system | External isolation, stainless steel surface evaporation humidifier | ||||
| Dehumidification system | Evaporator | ||||
| Water supply system | Automatic water supply, Water purification system, Water saving | ||||
| Circulatory system | Cold resistance and low noise centrifugal wind wheel | ||||
| Material | |||||
| Exterior material | Steel Plate with protective coating | ||||
| Interior material | SUS304 stainlesssteel | ||||
| Insulation window | Double thermostability silicone rubber sealing | ||||

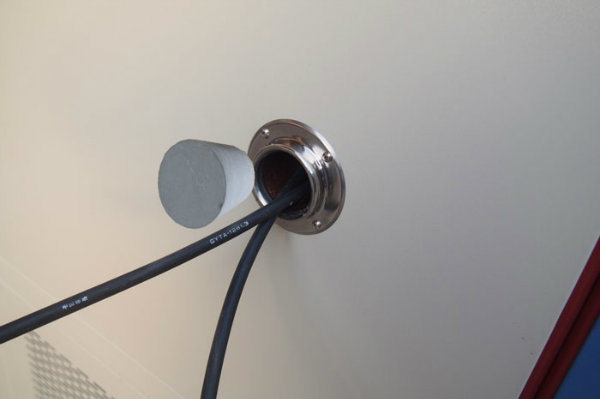

| Standardconfiguration | 1 Cable hole (Φ 50,) cover, 2 sets of shelf, 2 protector tubes, 1 overflow water tube,1 copy of operating specification | ||||
| Timing Function | 0.1~999.9 (S,M,H) settable | ||||
| Power Supply | AC380V 50HZ Three-phase five little system | ||||
| Ambient Temperature | 5ºC~+30 ºC ≤85% RH | ||||
| Standard | IEC60068-2-1;IEC60068-2-2;GB/T2423.1-2001; GB/T2423.2-2001 |
Key Points:
Air Circulation
Air circulation fans in the working volume of the chamber.
The number of air circulation fans is three.
The real wall of test area with chip-type wind board, air flowing out from top of wind board which control air direction, and return into air inlet to achieve air circulation.
Cooling System
Air cooling system.
Cooling unit is French TECUMSEH compressor.
Double-Stage refrigerating unit
Environment friendly refrigerant R404A & R23
Humidification & Dehumidification System
External isolation, stainless steel surface evaporation humidifier
Automatic water supply, Water purification system, Water saving
Package Information:
| Model | Packing Dimension | Packing Weight |
| TH-100 | 125*110*160 | 210Kg |
| TH-225 | 125*145*190 | 285Kg |
| TH-500 | 160*160*210 | 420Kg |
| TH-800 | 175*180*210 | 550Kg |
| TH-1000 | 190*210*220 | 700Kg |
Our Services:
| Pre-Sales Service * Inquiry and consulting support. * Offering quotation and specifications. * Provide test solutions. * Visiting our factory. |
| After-Sales Service * 3 Years Warranty, Lifelong Follow-up Services. * Training how to install and operate the machine. * Training how to maintain the machine. * Response within 24 hours once got questions from customers. * Send spare parts within 2 days after got notice. * Engineers available to service machinery overseas to install and commissioning. |
Our Company:
Xi'an LIB environmental simulation industry is a manufacture and exporter of climatic test chambers in China, and have over 8 years overseas market in test chambers to more than 25 countries.
LIB adhered to "Quality", "Service", and "Trust".
LIB main products are
Temperature and humidity climatic test chamber
Thermal shock chamber
Salt spray test chamber & CCT
IP test chambers
Weathering test chambers
Ozone test chamber
Sulfur dioxide corrosion test chamber
Drying Oven
Walk-in chamber
