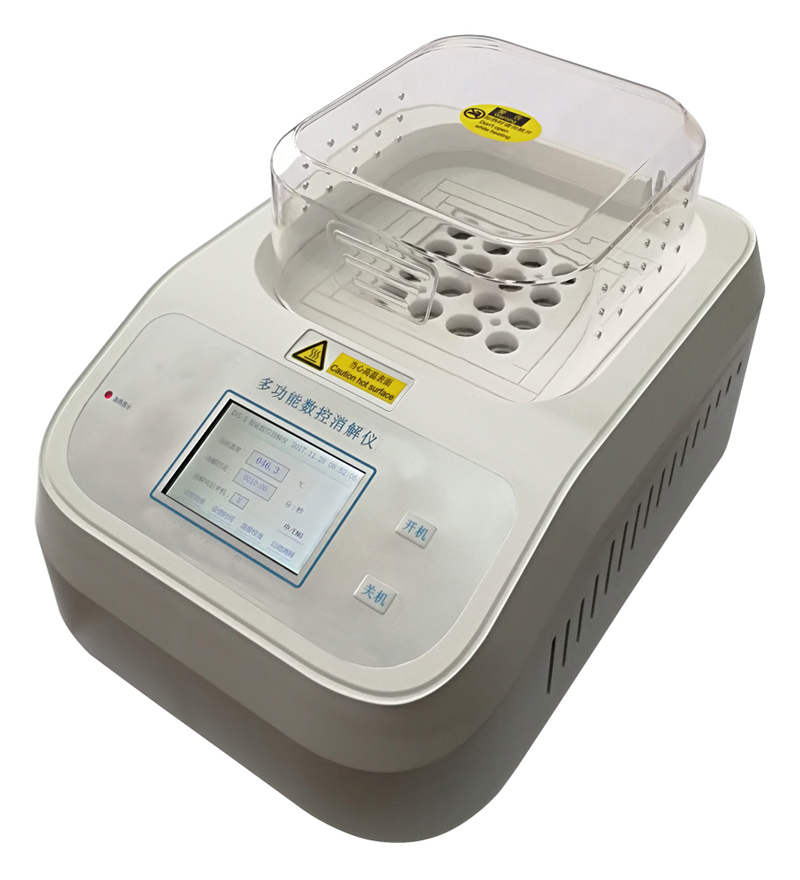

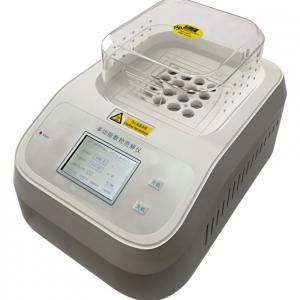

Mul-Function Digit-Control Heater/Laboratory Instruments
Function:
TR-DIS-16B/20B/25B/36B/D12 series Mul-Function Digit-Control Heater (The following called Heater) is a Mul-Function heater. It can be used for COD,Total Phosphorus(TP),Total Nitrogen(TN),Total Copper(TCu),etc., of water quality parameters which need Heated. The heater can change Heating digestion temperature,Heating Digestion time conveniently for various uses.And,after long-time used,if there is some difference between the show temperature and the practical temperature, it can be calibrated conveniently.Among these series,DIS-D12 is a double-temperature-control heater,the temperature of the two heating regions can be set and controled separately.The heater interface can be changed between chinese and English bilingual.
Features:
1.The Heating body is a solid block, so the safety and thermal uniformity excellent.
2.Using PID software to control the temperature, so the temperature-control
performance is very excellent.
3.Using ABS material Pressing module shell,the anti-corrosion performance is good,without the corrosion that agent drops on mental material.
4.The display is 3.5'' touch screen,operation is convenient and interface friendly.
5.The heater has own protective shield, spray proof, good safety performance.
6.Free to set digestion temperature,digestion time in some range,and can be set to Auto-turn-off power after digestion finish(except TR-DIS-D12).
7.After long-time use,the heater's temperature will have some difference relative to the practical value,you can calibrate it conveniently,to ensure the accuracy in the whole life of the heater.
8.The operation interface is bilingual ,you can change interface languages between Chinese and English by touching one-key.
Main Parameters:
- Digestion temperature: Room temperature~200 ºC
- Temperature accuracy: ±0.5 ºC
- Digestion time: 1-9999 minutes
- Time accuracy: 0.1s/hour
- Display: 3.5 inchs touch screen, resolution: 320x240,
- Auto-Power Off: may be set(for DIS-16B/20B/25B/36B)
- tube number: 16/20/25/36/24(DIS-16B/20B/25B/36B/D12)
- Power: AC220V±10%,50Hz,500W(maxium)
- Outline size: 355mm×260mm×135mm(not including shield)
10. Weight: 5.5/6.5/7.0/8.0/7.0kg(DIS-16B/20B/25B/36B/D12)
11. Shell: Anti-corrosion and pressing module
Appendix. Packing List:
| Index | name | number | remarks |
| 1 | Main machine | 1 | Include the shield |
| 2 | Power line | 1 | AC220V,rated power:1kW |
| 3 | fuse | 1 | 5A |
| 4 | Instruction book | 1 | This book |
| 5 | Certification | 1 | |
| 6 | Warranty card | 1 |
Packing:
