Good Quality High Pressure Mining Multistage Centrifugal Water Pump

PRIMARY PARAMETERS

Model NO.

D(DF/DY/MD)46-50*(2-10)

Position of Pump Shaft

Horizontal Pump

Pump Casing Combined

Horizontal Split Pumps

Mounting Height

Suction Centrifugal

Impeller

Closed

Usage

Pump, Pumps, Circulating Pump, Mining Pump

Theory

Centrifugal Pump

Pump Material

Stainless Steel or Cast Iron

Impeller Material

Stainless Steel or Cast Iron

Seal Type

Mechanical Seal or Packing Seal

Rotation Speed

1480/2950rpm

Pump Spare Parts

Pump Casing, Impeller, Seal, Bearing, etc

Shaft Material

Stainless Steel

Application

Dewatering Pump, Drainage Pump

Stage

2-12

Color

Optional

Trademark

Y&L

Transport Package

Standard Plywood Case

Specification

80mm

Origin

Shanghai, China

HS Code

8413709990

DETAIL DESCRIPTION

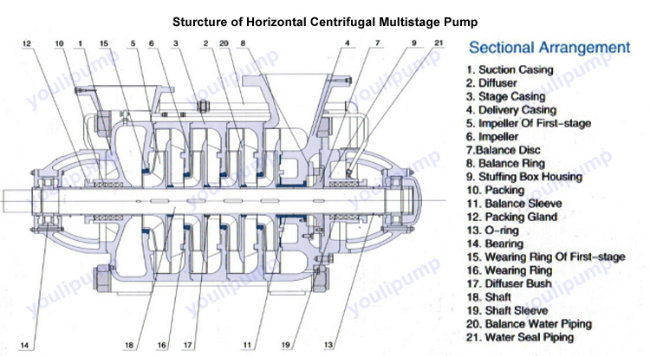

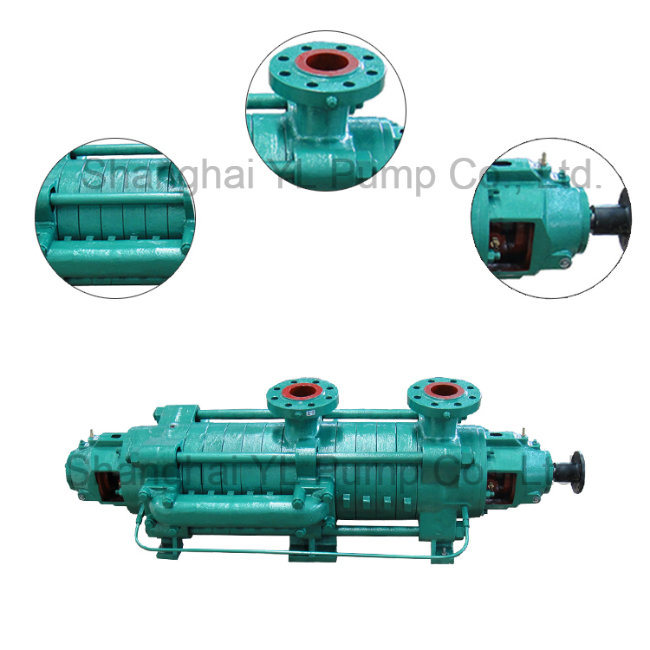

High Pressure Multistage Centrifugal Water Pump for Mining

The pump is efficient, reliable, and durable with low noise performance, easy maintenance and wide scope of usages. The air suction , compression and exhaust of the mechanical vacuum pump are conducted based on the voiume change of the pump cavity. The distract feature of the horizontal single suction centrifugal pump is that the stage quantity can be adjusted according to practical working pressure.
Good Quality High Pressure Mining Multistage Centrifugal Water Pump

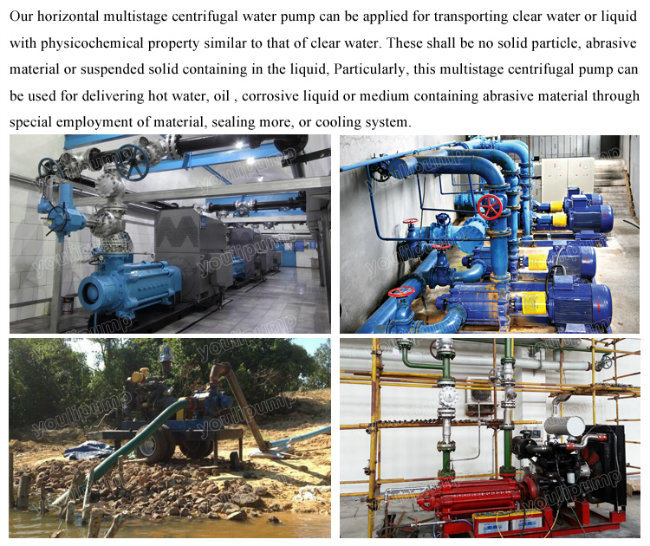

Application
Good Quality High Pressure Mining Multistage Centrifugal Water Pump

Technical Parameters

D(DF,DY,MD)46-50×(2-12)
Stage	Capacity	Head	Rating Speed	Efficiency	Shaft power	NPSHr	Impeller Dia	Pump Weight
m3/h	L/s	m	r/min	%	KW	m	mm	kg
2	30	8.33	111	2950	54	16.78	2.5	φ208	262.7
46	12.78	100	63	19.88	2.8
55	15.28	92	64	21.52	3.2
3	30	8.33	166.5	2950	54	25.19	2.5	φ208	281.5
46	12.78	150	63	29.83	2.8
55	15.28	138	64	32.28	3.2
4	30	8.33	222	2950	54	33.59	2.5	φ208	300.3
46	12.78	200	63	39.77	2.8
55	15.28	184	64	43.04	3.2
5	30	8.33	277.5	2950	54	41.98	2.5	φ208	319.2
46	12.78	250	63	49.71	2.8
55	15.28	230	64	53.80	3.2
6	30	8.33	333	2950	54	50.38	2.5	φ208	338.0
46	12.78	300	63	59.65	2.8
55	15.28	276	64	64.56	3.2
7	30	8.33	388.5	2950	54	58.78	2.5	φ208	356.8
46	12.78	350	63	69.60	2.8
55	15.28	322	64	75.32	3.2
8	30	8.33	444	2950	54	67.20	2.5	φ208	375.7
46	12.78	400	63	79.52	2.8
55	15.28	368	64	86.08	3.2
9	30	8.33	499.5	2950	54	75.56	2.5	φ208	394.5
46	12.78	450	63	89.48	2.8
55	15.28	414	64	96.84	3.2
10	30	8.33	555	2950	54	83.97	2.5	φ208	412.3
46	12.78	500	63	99.42	2.8
55	15.28	460	64	107.6	3.2
11	30	8.33	610.5	2950	54	92.37	2.5	φ208	432.2
46	12.78	550	63	109.36	2.8
55	15.28	506	64	118.36	3.2
12	30	8.33	666	2950	54	100.80	2.5	φ208	451.0
46	12.78	600	63	119.28	2.8
55	15.28	552	64	129.12	3.2

Package
Good Quality High Pressure Mining Multistage Centrifugal Water Pump

The Service

1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.

Our Client
Good Quality High Pressure Mining Multistage Centrifugal Water Pump

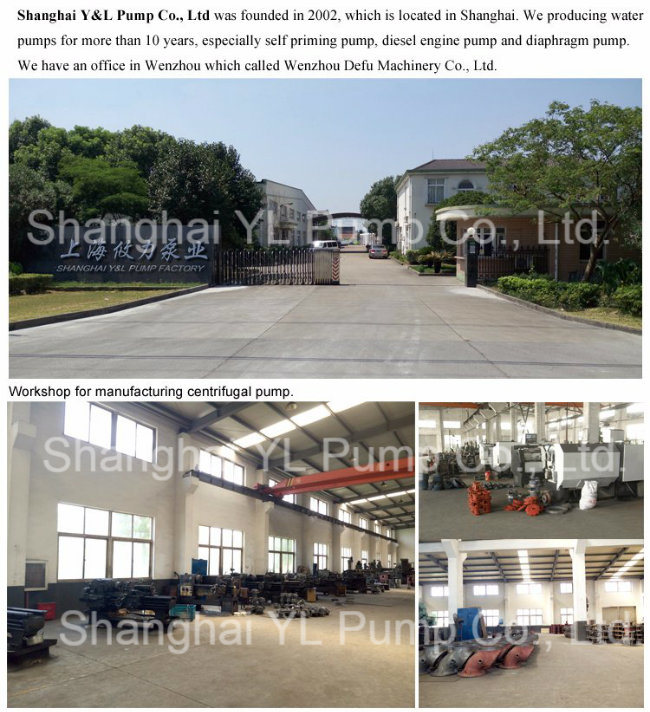

Our Factory
