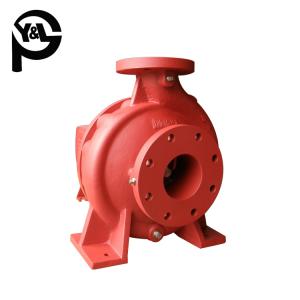

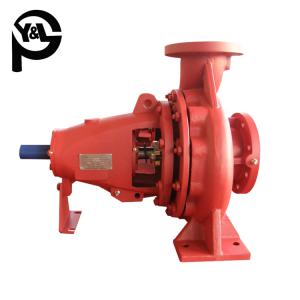

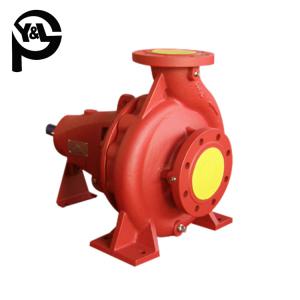

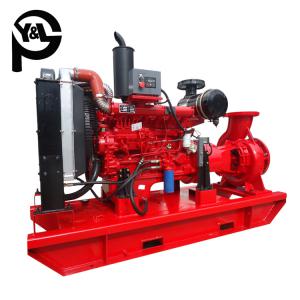

Single Stage Horizontal End Suction Centrifugal Pump
Introduction
DA series centrifugal Pump /bomba is specialized in pumping water, liquid, chemical substances,etc. With compact structure, its working diameter ranges from 50mm to 300mm, each model of our product has 4-5 impellers with different sixes, the rotation speed is 1450rpm, 170rpm, 2900rpm, 3500rpm for optional. This water pump can be widely used in farmland irrigation, fire water supply, urban drainage, cooling water circulation for air conditioner, sewage treatment and other fields.
Technical Parameters

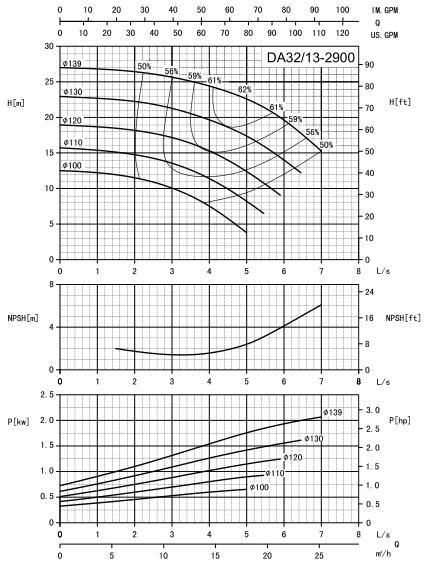

Perforance Curve
The rotation speed is 2900rpm

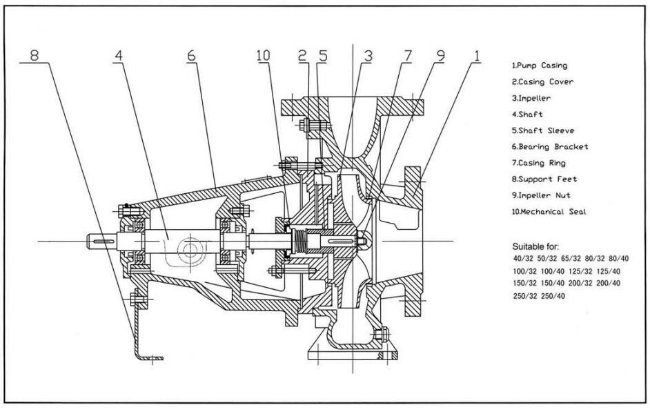

Pump and Parts Material

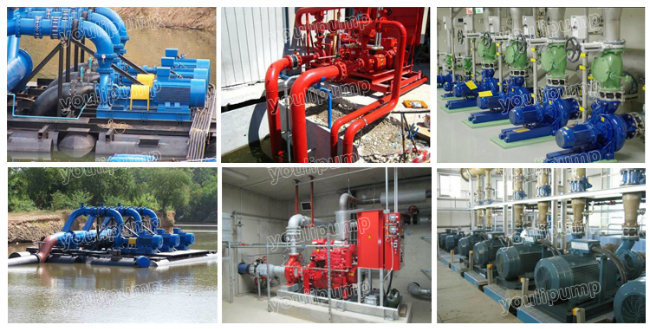

Application
1. Constructional Engineering: clear water transportation, pressurization system, air condition water circulation system, fire extinguishing system, swimming pool and water circulation system.
2. Industry: circulating cooling system, process water for paper-making and paper pulp, steel production, shipbuilding, sea transportation and other manufacturing industry.
3. Mining Industry: water supply, mine drainage, generating station, etc.
4. Others: Municipal water supply, agricultural irrigation and some others.
Our Service
1. Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.
2. On-sales Service: we will clear show you everything in fact when you place an order with us. We will take photos or videos to show you our production situation, and report the production situation to you.
3. Package: We use plywood case to pack our pump, which is durable for ocean transport.
4. Delivery: Delivery time will be on time as the contract. Usually, our company need 25 working days for diesel engine pump, and for bare shaft pump, it takes 15 working days,
5. Warranty: 12 month for the pump body, 3 month for the main working parts.
Our Team

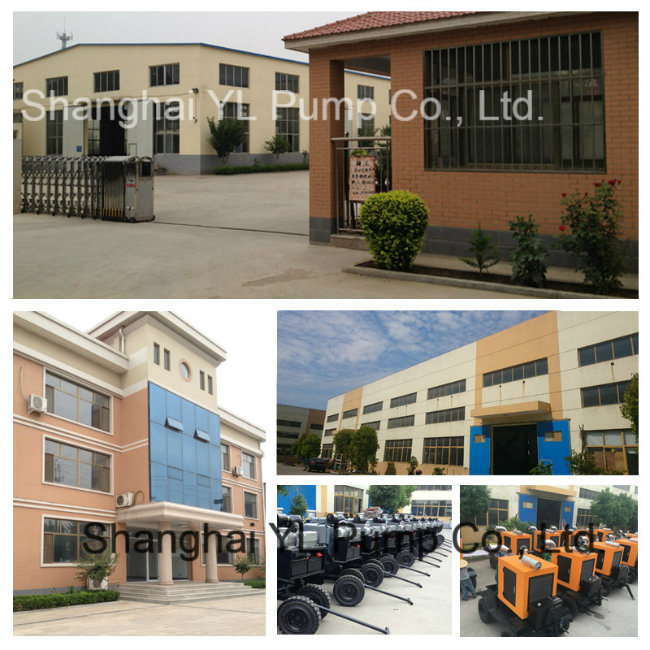

Our Factory
Shanghai Y&L Pump Co.,Ltd was found in 2002, which is located in Shanghai. We producing water pumps for more than 10 years, especially self priming pump, diesel engine pump and diaphragm pump. We have an office in Wenzhou which called Wenzhuo Defu Machinery Co.,Ltd.
Welcome to visit our factory!
Introduction
DA series centrifugal Pump /bomba is specialized in pumping water, liquid, chemical substances,etc. With compact structure, its working diameter ranges from 50mm to 300mm, each model of our product has 4-5 impellers with different sixes, the rotation speed is 1450rpm, 170rpm, 2900rpm, 3500rpm for optional. This water pump can be widely used in farmland irrigation, fire water supply, urban drainage, cooling water circulation for air conditioner, sewage treatment and other fields.
Technical Parameters
| Model | Capacity | Head | Rotation Speed | Fruquency | Power | Efficiency | Impeller Dia. | Dia. | |||
| Shaft | Motor | Inlet | Outlet | ||||||||
| m3/h | L/s | m | r/min | hz | kw | kw | % | mm | mm | mm | |
| DA32/13 | 4.3 | 1.21 | 6.7 | 1450 | 50 | 0.17 | 0.55 | 47 | 139 | 50 | 32 |
| 7.2 | 2.01 | 6.2 | 0.21 | 0.55 | 58 | ||||||
| 8.7 | 2.41 | 5.8 | 0.23 | 0.55 | 59 | ||||||
| 9.0 | 2.50 | 26.0 | 2900 | 50 | 1.23 | 1.5 | 52 | ||||
| 15.0 | 4.17 | 24.0 | 1.61 | 2.2 | 61 | ||||||
| 18.0 | 5.00 | 22.5 | 1.78 | 2.2 | 62 | ||||||
| 4.3 | 1.46 | 9.8 | 1750 | 60 | 0.25 | 0.55 | 47 | ||||
| 7.2 | 2.43 | 9.0 | 0.31 | 0.55 | 58 | ||||||
| 8.7 | 2.91 | 8.4 | 0.34 | 0.55 | 59 | ||||||
| 10.9 | 3.02 | 37.9 | 3500 | 60 | 2.16 | 3 | 52 | ||||
| 18.1 | 5.03 | 35.0 | 2.83 | 4 | 61 | ||||||
| 21.7 | 6.04 | 32.8 | 3.13 | 4 | 62 | ||||||
| DA32/13A | 4.1 | 1.13 | 5.7 | 1450 | 50 | 0.14 | 0.55 | 46 | 130 | 50 | 32 |
| 6.8 | 1.88 | 5.2 | 0.17 | 0.55 | 56.5 | ||||||
| 8.1 | 2.26 | 4.8 | 0.18 | 0.55 | 58 | ||||||
| 8.4 | 2.34 | 22.0 | 2900 | 50 | 0.98 | 1.5 | 51.5 | ||||
| 14.0 | 3.90 | 19.7 | 1.25 | 1.5 | 60 | ||||||
| 16.8 | 4.68 | 18.0 | 1.36 | 2.2 | 60.5 | ||||||
| 4.1 | 1.36 | 8.3 | 1750 | 60 | 0.20 | 0.55 | 46 | ||||
| 6.8 | 2.27 | 7.6 | 0.25 | 0.55 | 56.5 | ||||||
| 8.1 | 2.72 | 7.0 | 0.27 | 0.55 | 58 | ||||||
| 10.2 | 2.82 | 32.0 | 3500 | 60 | 1.72 | 2.2 | 51.5 | ||||
| 16.9 | 4.71 | 28.7 | 2.21 | 3 | 60 | ||||||
| 20.3 | 5.65 | 26.2 | 2.40 | 3 | 60.5 | ||||||
| DA32/13B | 3.7 | 1.04 | 4.7 | 1450 | 50 | 0.11 | 0.55 | 45 | 120 | 50 | 32 |
| 6.2 | 1.74 | 4.2 | 0.13 | 0.55 | 55 | ||||||
| 7.5 | 2.08 | 3.9 | 0.14 | 0.55 | 56 | ||||||
| 7.8 | 2.16 | 18.0 | 2900 | 50 | 0.75 | 1.1 | 51 | ||||
| 13.0 | 3.60 | 16.2 | 0.98 | 1.1 | 58.5 | ||||||
| 15.6 | 4.32 | 14.5 | 1.06 | 1.5 | 58 | ||||||
| 3.7 | 1.26 | 6.8 | 1750 | 60 | 0.16 | 0.55 | 45 | ||||
| 6.2 | 2.09 | 6.1 | 0.19 | 0.55 | 55 | ||||||
| 7.5 | 2.51 | 5.7 | 0.21 | 0.55 | 56 | ||||||
| 9.4 | 2.61 | 26.2 | 3500 | 60 | 1.31 | 2.2 | 51 | ||||
| 15.6 | 4.34 | 23.6 | 1.72 | 3 | 58.5 | ||||||
| 18.8 | 5.21 | 21.1 | 1.86 | 3 | 58 | ||||||
| DA32/13C | 3.4 | 0.95 | 3.9 | 1450 | 50 | 0.08 | 0.55 | 45 | 110 | 50 | 32 |
| 5.7 | 1.59 | 3.5 | 0.10 | 0.55 | 54 | ||||||
| 6.9 | 1.91 | 3.1 | 0.11 | 0.55 | 54 | ||||||
| 7.1 | 1.98 | 14.8 | 2900 | 50 | 0.57 | 1.1 | 50 | ||||
| 11.9 | 3.30 | 13.0 | 0.74 | 1.1 | 57 | ||||||
| 14.3 | 3.96 | 11.4 | 0.80 | 1.1 | 55.5 | ||||||
| 3.4 | 1.15 | 5.8 | 1750 | 60 | 0.12 | 0.55 | 45 | ||||
| 5.7 | 1.92 | 5.1 | 0.15 | 0.55 | 54 | ||||||
| 6.9 | 2.30 | 4.5 | 0.16 | 0.55 | 54 | ||||||
| 8.6 | 2.39 | 21.6 | 3500 | 60 | 1.01 | 1.5 | 50 | ||||
| 14.3 | 3.98 | 18.9 | 1.30 | 2.2 | 57 | ||||||
| 17.2 | 4.78 | 16.6 | 1.40 | 2.2 | 55.5 | ||||||
| DA32/13D | 3.1 | 0.87 | 3.1 | 1450 | 50 | 0.06 | 0.55 | 44 | 100 | 50 | 32 |
| 5.2 | 1.45 | 2.7 | 0.08 | 0.55 | 51 | ||||||
| 6.2 | 1.74 | 2.3 | 0.08 | 0.55 | 52 | ||||||
| 6.5 | 1.80 | 11.7 | 2900 | 50 | 0.43 | 0.75 | 48 | ||||
| 10.8 | 3.00 | 10.1 | 0.57 | 0.75 | 52 | ||||||
| 13.0 | 3.60 | 8.7 | 0.59 | 1.1 | 52 | ||||||
| 3.1 | 1.05 | 4.5 | 1750 | 60 | 0.09 | 0.55 | 44 | ||||
| 5.2 | 1.75 | 3.9 | 0.11 | 0.55 | 51 | ||||||
| 6.2 | 2.09 | 3.4 | 0.11 | 0.55 | 52 | ||||||
| 7.8 | 2.17 | 17.0 | 3500 | 60 | 0.76 | 1.1 | 48 | ||||
| 13.0 | 3.62 | 14.7 | 1.00 | 1.5 | 52 | ||||||
| 15.6 | 4.34 | 12.7 | 1.04 | 1.5 | 52 |
Perforance Curve
The rotation speed is 2900rpm
Pump and Parts Material
| Pump Casing | Grey Cast Iron; Nodular Cast Iron; Stainless Steel 304/316/316L |
| Impeller | Grey Cast Iron; Bronze; Stainless Steel 304/316/316L |
| Shaft | Stainless Steel; Chrome Steel |
| Shaft Sleeve | Stainless Steel |
| Casing Ring | Grey Cast Iron; Bronze |
Application
1. Constructional Engineering: clear water transportation, pressurization system, air condition water circulation system, fire extinguishing system, swimming pool and water circulation system.
2. Industry: circulating cooling system, process water for paper-making and paper pulp, steel production, shipbuilding, sea transportation and other manufacturing industry.
3. Mining Industry: water supply, mine drainage, generating station, etc.
4. Others: Municipal water supply, agricultural irrigation and some others.
Our Service
1. Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.
2. On-sales Service: we will clear show you everything in fact when you place an order with us. We will take photos or videos to show you our production situation, and report the production situation to you.
3. Package: We use plywood case to pack our pump, which is durable for ocean transport.
4. Delivery: Delivery time will be on time as the contract. Usually, our company need 25 working days for diesel engine pump, and for bare shaft pump, it takes 15 working days,
5. Warranty: 12 month for the pump body, 3 month for the main working parts.
Our Team
Our Factory
Shanghai Y&L Pump Co.,Ltd was found in 2002, which is located in Shanghai. We producing water pumps for more than 10 years, especially self priming pump, diesel engine pump and diaphragm pump. We have an office in Wenzhou which called Wenzhuo Defu Machinery Co.,Ltd.
Welcome to visit our factory!
